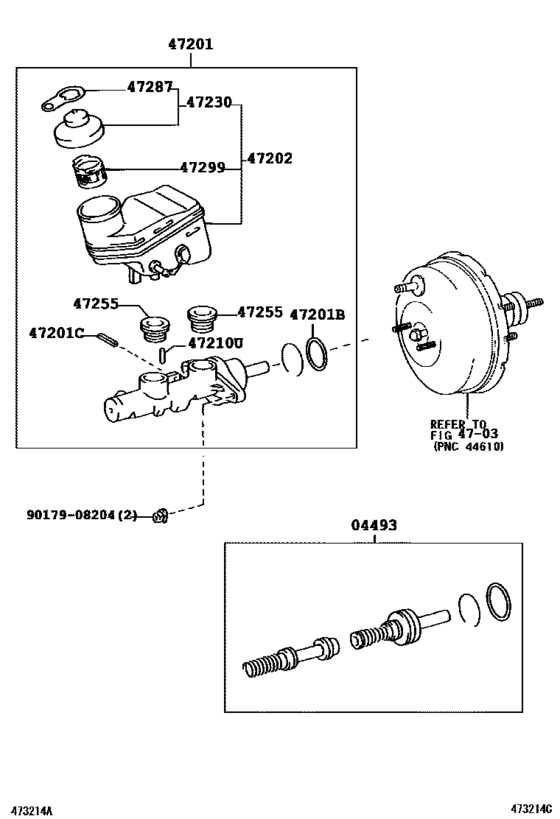

Brake Master Cylinder ([10.2002 - ] W(ABS) (0210- )15G,15GLI,15S,GL,GLI,GLS,GLXI..CHI,MA ,TH ; (0212- )15E..TH) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-0D010
Cylinder Kit, Brake Master
[11.2005 - 08.2006] AXP4# |
04493-0D010 |
— | ||
|
47201
|
47201
47201-0D080
Cylinder Sub-Assy, Brake Master
[11.2005 - 08.2006] AXP4#..ATM |
47201-0D080 |
— | ||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[11.2005 - 08.2006] AXP4# |
90029-20059 |
from US $2.24 |
||
|
47201C
|
47201C
90029-15804 Ring Pin, Brake Master Cylinder[11.2005 - 08.2006] AXP4# |
90029-15804 |
US $4.02 |
||
|
47202
|
47202
47220-0D050
Reservoir Sub-Assy, Brake Master Cylinder
[11.2005 - 08.2006] AXP4#..ATM |
47220-0D050 |
— | ||
|
47210U
|
47210U
90029-14204 Pin, Straight(For Brake Master Cylinder)[11.2005 - 08.2006] AXP4# |
90029-14204 |
US $0.83 |
||
|
47230
|
47230
47230-0D040
Cap Assy, Brake Master Cylinder Reservoir Filler
[11.2005 - 08.2006] AXP4# |
47230-0D040 |
— | ||
|
47255
|
47255
31417-35010 Grommet[11.2005 - 08.2006] AXP4# |
31417-35010 |
from US $2.01 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[11.2005 - 08.2006] AXP4# |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[11.2005 - 08.2006] AXP4# |
47299-20060 |
US $2.18 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
