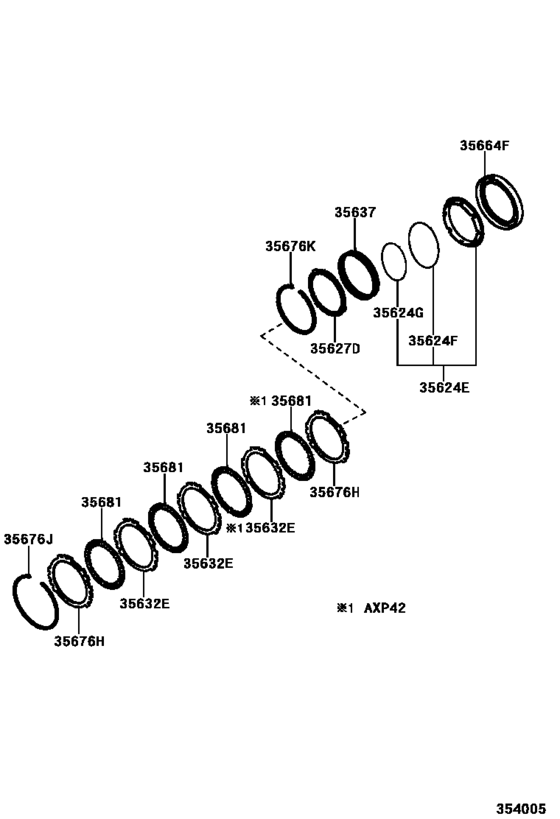

Brake No.3, 1St & Reverse Brake (Atm) ([10.2002 - ] U540E (0210- )AXP4#,SCP4#..ATM) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35624E
|
35624E
35601-52051
Piston, 2Nd Brake
[11.2005 - 08.2006] AXP42..ATM |
35601-52051 |
— | ||
|
35624F
|
35624F
90301-99137 Ring, O (For 2Nd Brake Piston)O (FOR 2ND BRAKE PISTON) [11.2005 - 08.2006] AXP4#..ATM |
90301-99137 |
US $3.49 |
||
|
35624G
|
35624G
90301-99138 Ring, O (For 2Nd Brake Piston)O (FOR 2ND BRAKE PISTON) [11.2005 - 08.2006] AXP4#..ATM |
90301-99138 |
US $3.49 |
||
|
35627D
|
35627D
35627-52020 Seat, Brake Return SpringBRAKE RETURN SPRING [11.2005 - 08.2006] AXP4#..ATM |
35627-52020 |
US $8.44 |
||
|
35632E
|
35632E
35632-52010 Plate, BrakeBRAKE [11.2005 - 08.2006] AXP42..ATM |
35632-52010 |
US $28.68 |
||
|
35637
|
35637
35637-52010 Spring, 2Nd & 4Th Brake Piston Return2ND & 4TH BRAKE PISTON RETURN [11.2005 - 08.2006] AXP4#..ATM |
35637-52010 |
US $4.37 |
||
|
35664F
|
35664F
35664-52031
Cylinder, 2Nd & 4Th Brake
[11.2005 - 08.2006] AXP4#..ATM |
35664-52031 |
— | ||
|
35676H
|
35676H
35676-52070
Flange, Brake, No.1
[11.2005 - 08.2006] AXP4#..ATM |
35676-52070 |
— | ||
|
35676J
|
35676J
90521-99125 Ring, Hole Snap (For Brake Flange)HOLE SNAP (FOR BRAKE FLANGE) [11.2005 - 08.2006] AXP4#..ATM T=1.5 |
90521-99125 |
US $3.49 |
||
|
35676J
|
35676J
90521-99126 Ring, Hole Snap (For Brake Flange)HOLE SNAP (FOR BRAKE FLANGE) [11.2005 - 08.2006] AXP4#..ATM T=1.75 |
90521-99126 |
US $3.49 |
||
|
35676J
|
35676J
90521-99127 Ring, Hole Snap (For Brake Flange)HOLE SNAP (FOR BRAKE FLANGE) [11.2005 - 08.2006] AXP4#..ATM T=2.0 |
90521-99127 |
US $3.49 |
||
|
35676J
|
35676J
90521-99128 Ring, Hole Snap (For Brake Flange)HOLE SNAP (FOR BRAKE FLANGE) [11.2005 - 08.2006] AXP4#..ATM T=2.25 |
90521-99128 |
US $3.93 |
||
|
35676K
|
35676K
90521-99129 Ring, Hole Snap (For Brake Flange)HOLE SNAP (FOR BRAKE FLANGE) [11.2005 - 08.2006] AXP4#..ATM |
90521-99129 |
US $3.06 |
||
|
35681
|
35681
35681-52010
Disc, Brake, No.1
[11.2005 - 08.2006] AXP42..ATM |
35681-52010 |
— |
