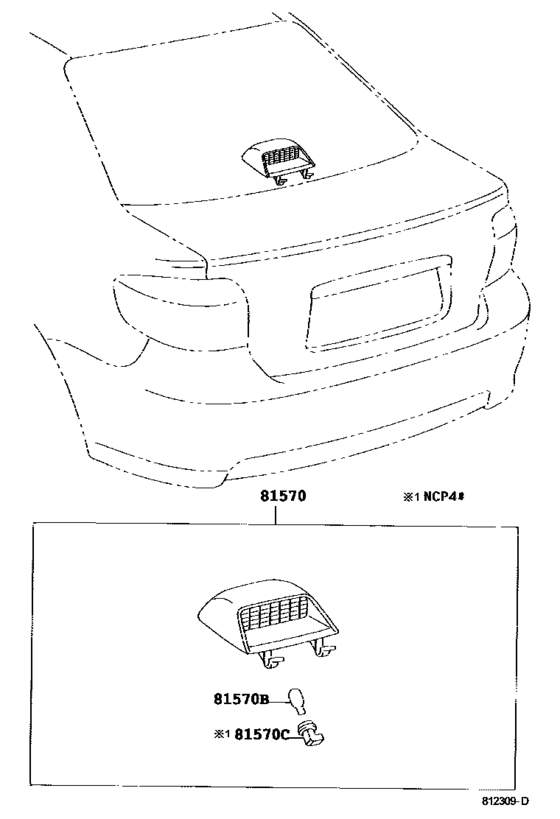

Center Stop Lamp ([10.2002 - ] (0210- )) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81570
|
81570
81570-0D020-B0
Lamp Assy, Center Stop
[11.2005 - 08.2006] AXP42..15GLI STONE,TRIM1#; AXP42..GLS STONE,TRIM11 |
81570-0D020-B0 |
— | ||
| replacement | |||||
|
81570
|
81570
81570-0D021-B0
Lamp Assy, Center Stop
[11.2005 - 08.2006] AXP42..15GLI STONE,TRIM1#; AXP42..GLS STONE,TRIM11 |
81570-0D021-B0 |
— | ||
|
81570
|
81570
81570-0D020-B1
Lamp Assy, Center Stop
[11.2005 - 08.2006] AXP42..GLS DK.GRAY,TRIM11 |
81570-0D020-B1 |
— | ||
| replacement | |||||
|
81570
|
81570
81570-0D021-B1
Lamp Assy, Center Stop
[11.2005 - 08.2006] AXP42..GLS DK.GRAY,TRIM11 |
81570-0D021-B1 |
— | ||
|
81570B
|
81570B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[11.2005 - 08.2006] AXP4# 12V 16W |
90981-11059 |
from US $3.24 |
||
