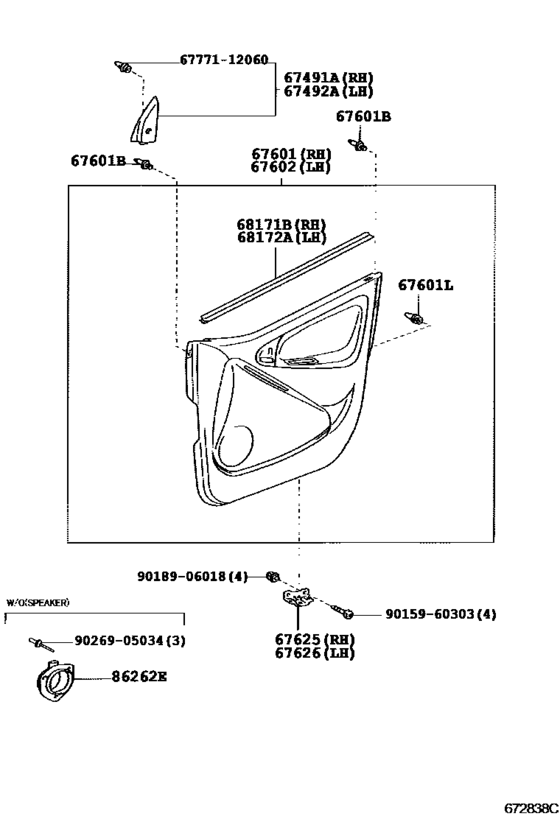

Front Door Panel & Glass ([10.2002 - ] (0210- )) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-0D050
Garnish, Front Door Lower Frame Bracket, Rh
[11.2005 - 08.2006] AXP42..GLS,GLXI |
67491-0D050 |
— | ||
|
67492A
|
67492A
67492-0D050
Garnish, Front Door Lower Frame Bracket, Lh
[11.2005 - 08.2006] AXP42..GLS,GLXI |
67492-0D050 |
— | ||
|
67601
|
67601
67610-0D520-B0
Board Sub-Assy, Front Door Trim, Rh
[11.2005 - 08.2006] AXP42..GLS DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1# |
67610-0D520-B0 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-0D700-B0
Board Sub-Assy, Front Door Trim, Rh
[11.2005 - 08.2006] AXP42..GLS DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1# |
67610-0D700-B0 |
— | ||
|
67601
|
67601
67610-0D580-B0
Board Sub-Assy, Front Door Trim, Rh
[11.2005 - 08.2006] AXP42..15GLI,GLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-0D580-B0 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-0D710-B0
Board Sub-Assy, Front Door Trim, Rh
[11.2005 - 08.2006] AXP42..15GLI,GLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-0D710-B0 |
— | ||
|
67601B
|
67601B
55346-52010-B0
Clip, Instrument Panel, No.2
[11.2005 - 08.2006] AXP42..15GLI,GLS DK.GRAY,TRIM1# |
55346-52010-B0 |
— | ||
|
67601L
|
67601L
90467-09206 Clip, Front Air Shutter Seal[11.2005 - 08.2006] AXP4# |
90467-09206 |
from US $0.47 |
||
|
67602
|
67602
67620-0D520-B0
Board Sub-Assy, Front Door Trim, Lh
[11.2005 - 08.2006] AXP42..GLS DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1# |
67620-0D520-B0 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-0D700-B0
Board Sub-Assy, Front Door Trim, Lh
[11.2005 - 08.2006] AXP42..GLS DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1# |
67620-0D700-B0 |
— | ||
|
67602
|
67602
67620-0D580-B0
Board Sub-Assy, Front Door Trim, Lh
[11.2005 - 08.2006] AXP42..15GLI,GLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-0D580-B0 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-0D710-B0
Board Sub-Assy, Front Door Trim, Lh
[11.2005 - 08.2006] AXP42..15GLI,GLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-0D710-B0 |
— | ||
|
67625
|
67625
67625-0D010
Bracket, Front Door Trim, Rh
[11.2005 - 08.2006] AXP4# |
67625-0D010 |
— | ||
|
67626
|
67626
67625-0D010
Bracket, Front Door Trim, Rh
[11.2005 - 08.2006] AXP4# |
67625-0D010 |
— | ||
|
68171B
|
68171B
68171-0D040
Weatherstrip, Front Door Glass, Inner Rh
[11.2005 - 08.2006] AXP4# |
68171-0D040 |
— | ||
|
68172A
|
68172A
68172-0D040
Weatherstrip, Front Door Glass, Inner Lh
[11.2005 - 08.2006] AXP4# |
68172-0D040 |
— | ||
|
6777112060
|
6777112060
67771-12060 Retainer, Door Trim |
67771-12060 |
US $1.79 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
||
