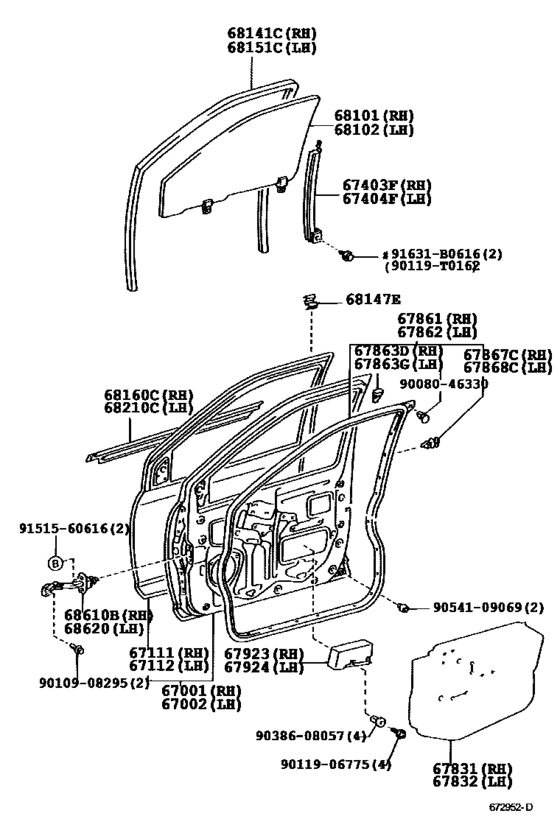

Front Door Panel & Glass ([10.2002 - ] (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-0D040
Panel Sub-Assy, Front Door, Rh
[11.2005 - 08.2006] AXP4# |
67001-0D040 |
— | ||
|
67002
|
67002
67002-0D040
Panel Sub-Assy, Front Door, Lh
[11.2005 - 08.2006] AXP4# |
67002-0D040 |
— | ||
|
67111
|
67111
67111-0D030
Panel, Front Door, Outer Rh
[11.2005 - 08.2006] AXP4# |
67111-0D030 |
— | ||
|
67112
|
67112
67112-0D030
Panel, Front Door, Outer Lh
[11.2005 - 08.2006] AXP4# |
67112-0D030 |
— | ||
|
67403F
|
67403F
67403-0D010
Frame Sub-Assy, Front Door, Rear Lower Rh
[11.2005 - 08.2006] AXP4# |
67403-0D010 |
— | ||
|
67404F
|
67404F
67404-0D010
Frame Sub-Assy, Front Door, Rear Lower Lh
[11.2005 - 08.2006] AXP4# |
67404-0D010 |
— | ||
|
67831
|
67831
67831-0D070
Cover, Front Door Service Hole, Rh
[11.2005 - 08.2006] AXP4# |
67831-0D070 |
— | ||
|
67832
|
67832
67832-0D030
Cover, Front Door Service Hole, Lh
[11.2005 - 08.2006] AXP4# |
67832-0D030 |
— | ||
|
67861
|
67861
67861-0D030
Weatherstrip, Front Door, Rh
[11.2005 - 08.2006] AXP4# |
67861-0D030 |
— | ||
|
67862
|
67862
67862-0D030
Weatherstrip, Front Door, Lh
[11.2005 - 08.2006] AXP4# |
67862-0D030 |
— | ||
|
67863D
|
67863D
67867-0D030
Retainer, Front Door Lower Protector, Rh
[11.2005 - 08.2006] AXP4# |
67867-0D030 |
— | ||
|
67863G
|
67863G
67867-0D040
Retainer, Rear Door Weatherstrip, Lh
[11.2005 - 08.2006] AXP4# |
67867-0D040 |
— | ||
|
67867C
|
67867C
67867-0D010
Retainer, Front Door Weatherstrip, Rh
[11.2005 - 08.2006] AXP4# |
67867-0D010 |
— | ||
|
67868C
|
67868C
67868-0D010
Retainer, Front Door Weatherstrip, Lh
[11.2005 - 08.2006] AXP4# |
67868-0D010 |
— | ||
|
67923
|
67923
67923-0D010
Cushion, Front Door Stiffener, No.1
[11.2005 - 08.2006] AXP4# |
67923-0D010 |
— | ||
|
67924
|
67924
67924-0D010
Cushion, Front Door Stiffener, No.2
[11.2005 - 08.2006] AXP4# |
67924-0D010 |
— | ||
|
68101
|
68101
68110-0D041
Glass Sub-Assy, Front Door, Rh
[11.2005 - 04.2006] AXP4# *TT,T=3.1,GREEN |
68110-0D041 |
— | ||
|
68101
|
68101
68110-0D042
Glass Sub-Assy, Front Door, Rh
[04.2006 - 08.2006] AXP4# *TEM,T=3.1,GREEN |
68110-0D042 |
— | ||
|
68102
|
68102
68120-0D041
Glass Sub-Assy, Front Door, Lh
[11.2005 - 04.2006] AXP4# *TT,T=3.1,GREEN |
68120-0D041 |
— | ||
|
68102
|
68102
68120-0D042
Glass Sub-Assy, Front Door, Lh
[04.2006 - 08.2006] AXP4# *TEM,T=3.1,GREEN |
68120-0D042 |
— | ||
|
68141C
|
68141C
68141-0D030
Run, Front Door Glass, Rh
[11.2005 - 08.2006] AXP4# |
68141-0D030 |
— | ||
|
68147E
|
68147E
68147-52040 Stopper, Rear Door Glass, Upper No.2REAR DOOR GLASS, UPPER NO.2 [11.2005 - 08.2006] AXP4# |
68147-52040 |
US $3.49 |
||
|
68151C
|
68151C
68151-0D030
Run, Front Door Glass, Lh
[11.2005 - 08.2006] AXP4# |
68151-0D030 |
— | ||
|
68160C
|
68160C
68160-0D030
Weatherstrip Assy, Front Door Glass, Outer Rh
[11.2005 - 08.2006] AXP4# |
68160-0D030 |
— | ||
|
68210C
|
68210C
68210-0D030
Weatherstrip Assy, Front Door Glass, Outer Lh
[11.2005 - 08.2006] AXP4# |
68210-0D030 |
— | ||
|
68610B
|
68610B
68610-0D020
Check Assy, Front Door, Rh
[11.2005 - 08.2006] AXP4# |
68610-0D020 |
— | ||
|
68620
|
68620
68620-0D020
Check Assy, Front Door, Lh
[11.2005 - 08.2006] AXP4# |
68620-0D020 |
— | ||
|
90119T0162
|
90119T0162
90119-T0162
BOLT WWASHER
|
90119-T0162 |
— | ||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9008046330
|
9008046330
90080-46330
New Genuine Part
|
90080-46330 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9038608057
|
9038608057
90386-08057 New Genuine Part |
90386-08057 |
US $2.75 |
||
|
9054109069
|
9054109069
90541-09069 Cushion, Hood Bumper |
90541-09069 |
from US $2.22 |
||
|
9151560616
|
9151560616
91515-60616 BOLT FLANGE |
91515-60616 |
US $1.25 |
