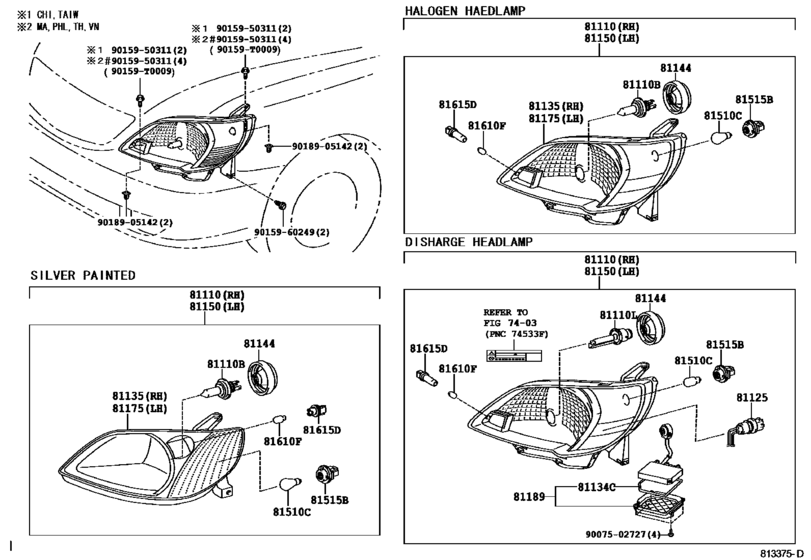

Headlamp ([11.2005 - 08.2006] (0510- )PHL,TAIW,TH ; (0511-0608)AXP4# ; (051 2- )MA ; (0603- )VN ; (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-0D150
Headlamp Assy, Rh
[11.2005 - 08.2006] AXP4# |
81110-0D150 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-0D151
Headlamp Assy, Rh
[11.2005 - 08.2006] AXP4# |
81110-0D151 |
— | ||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [11.2005 - 08.2006] AXP4# 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81135
|
81135
81130-0D150
Unit Assy, Headlamp, Rh
[11.2005 - 08.2006] AXP4# |
81130-0D150 |
— | ||
|
81144
|
81144
90069-81036
Cover, Headlamp Back, No.1
[11.2005 - 08.2006] AXP4# |
90069-81036 |
— | ||
| replacement | |||||
|
81144
|
81144
90075-65002 Cover, Headlamp Back, No.1[11.2005 - 08.2006] AXP4# |
90075-65002 |
from US $6.24 |
||
|
81150
|
81150
81150-0D150
Headlamp Assy, Lh
[11.2005 - 08.2006] AXP4# |
81150-0D150 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-0D151
Headlamp Assy, Lh
[11.2005 - 08.2006] AXP4# |
81150-0D151 |
— | ||
|
81175
|
81175
81170-0D150
Unit Assy, Headlamp, Lh
[11.2005 - 08.2006] AXP4# |
81170-0D150 |
— | ||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[11.2005 - 08.2006] AXP4# 12V 21W,AMBER |
90981-15021 |
from US $3.22 |
||
|
81515B
|
81515B
90069-81068
Socket, Front Turn Signal Lamp
[11.2005 - 08.2006] AXP4# |
90069-81068 |
— | ||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[11.2005 - 08.2006] AXP4# 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[11.2005 - 08.2006] AXP4# 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90069-81067
Socket, Clearance Lamp
[11.2005 - 08.2006] AXP4# |
90069-81067 |
— | ||
|
90159T0009
|
90159T0009
90159-T0009 SCREWWWASHER TAP |
90159-T0009 |
US $0.20 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
from US $0.66 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9015960249
|
9015960249
90159-60249 SCREW WWASHER TAPP |
90159-60249 |
from US $1.75 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.76 |
||
