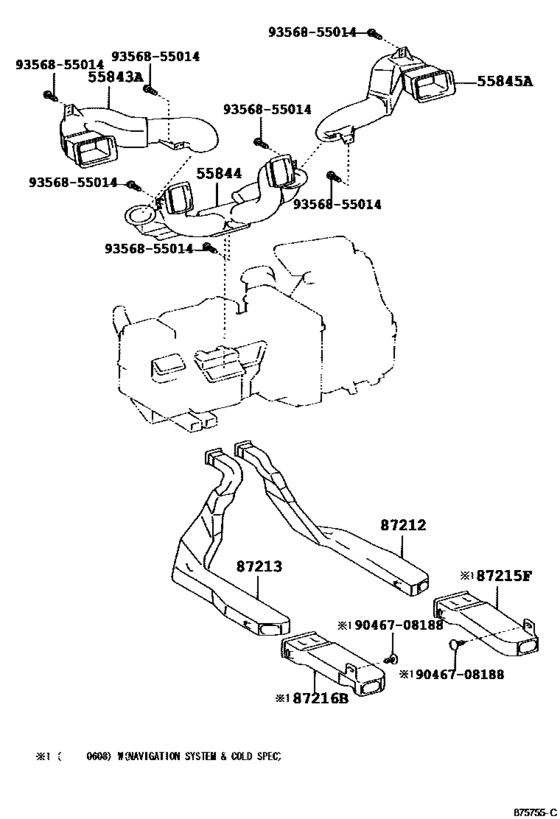

Heating & Air Conditioning - Control & Air Duct ([10.2002 - ] AIR DUCT (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-0D030
Duct, Heater To Register, No.1
[11.2005 - 08.2006] AXP4# |
55843-0D030 |
— | ||
|
55844
|
55844
55844-0D030
Duct, Heater To Register, No.2
[11.2005 - 08.2006] AXP4# |
55844-0D030 |
— | ||
|
55845A
|
55845A
55845-0D030
Duct, Heater To Register, No.3
[11.2005 - 08.2006] AXP4# |
55845-0D030 |
— | ||
|
87212
|
87212
87212-0D020
Duct, Air, Rear No.1
[11.2005 - 08.2006] AXP4# |
87212-0D020 |
— | ||
|
87213
|
87213
87213-0D020
Duct, Air, Rear No.2
[11.2005 - 08.2006] AXP4# |
87213-0D020 |
— | ||
|
9046708188
|
9046708188
90467-08188 Clip, Radiator Support To Frame |
90467-08188 |
US $1.43 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
