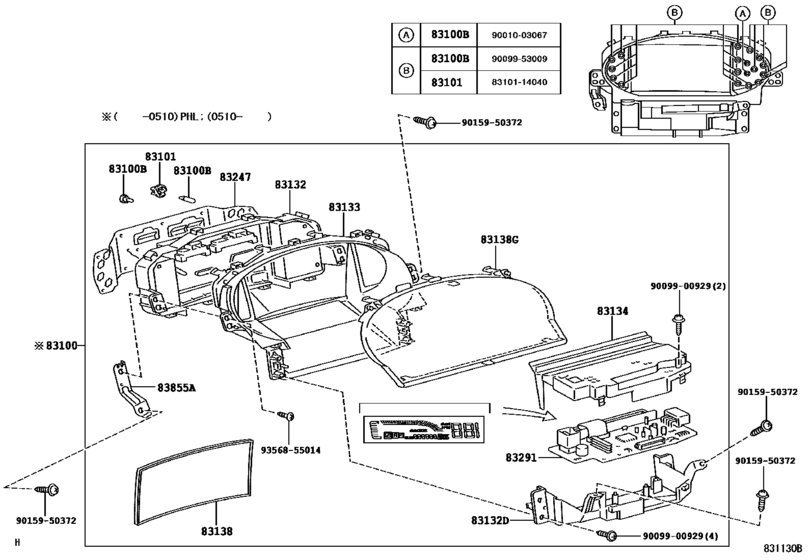

Meter ([10.2002 - ] DIGITAL METER (0210- )CHI,PHL) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-0D110
Meter Assy, Combination
[11.2005 - 08.2006] AXP42..ATM |
83800-0D110 |
— | ||
|
83100B
|
83100B
90010-03067
Bulb, Combination Meter, No.1
[11.2005 - 08.2006] AXP42 14V 1.12W,TYPE A:REFER ILLUST. |
90010-03067 |
— | ||
|
83100B
|
83100B
90099-53009 Bulb, Combination Meter, No.1[11.2005 - 08.2006] AXP42 14V0.84W W/O(SOCKET),TYPE B:REFER ILLUST. |
90099-53009 |
from US $1.50 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[11.2005 - 08.2006] AXP4# |
83101-14040 |
US $2.44 |
||
|
83132
|
83132
83841-0D110
Case, Combination Meter
[11.2005 - 08.2006] AXP42 |
83841-0D110 |
— | ||
|
83132D
|
83132D
83842-0D110
Case, Combination Meter, No.2
[11.2005 - 08.2006] AXP42 |
83842-0D110 |
— | ||
|
83133
|
83133
83811-0D110
Plate, Combination Meter, No.1
[11.2005 - 08.2006] AXP42 |
83811-0D110 |
— | ||
| replacement | |||||
|
83133
|
83133
83811-0D320
Plate, Combination Meter, No.1
[11.2005 - 08.2006] AXP42 |
83811-0D320 |
— | ||
|
83134
|
83134
83821-0D110
Cover, Combination Meter, No.1
[11.2005 - 08.2006] AXP42 |
83821-0D110 |
— | ||
| replacement | |||||
|
83134
|
83134
83821-0D320
Cover, Combination Meter, No.1
[11.2005 - 08.2006] AXP42 |
83821-0D320 |
— | ||
|
83138
|
83138
83852-52110
Glass, Speedometer
[11.2005 - 08.2006] AXP42 |
83852-52110 |
— | ||
|
83138G
|
83138G
83852-0D110
Glass, Combination Meter
[11.2005 - 08.2006] AXP42 |
83852-0D110 |
— | ||
| replacement | |||||
|
83138G
|
83138G
83852-0D320
Glass, Combination Meter
[11.2005 - 08.2006] AXP42 |
83852-0D320 |
— | ||
|
83247
|
83247
83861-0D110
Plate, Meter Circuit
[11.2005 - 08.2006] AXP42 |
83861-0D110 |
— | ||
|
83291
|
83291
83291-0D070
Computer, Combination Meter
[11.2005 - 08.2006] AXP42..ATM |
83291-0D070 |
— | ||
|
83855A
|
83855A
83855-0D080
Bracket, Combination Meter, No.1
[11.2005 - 08.2006] AXP4# |
83855-0D080 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015950372
|
9015950372
90159-50372 Screw |
90159-50372 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
