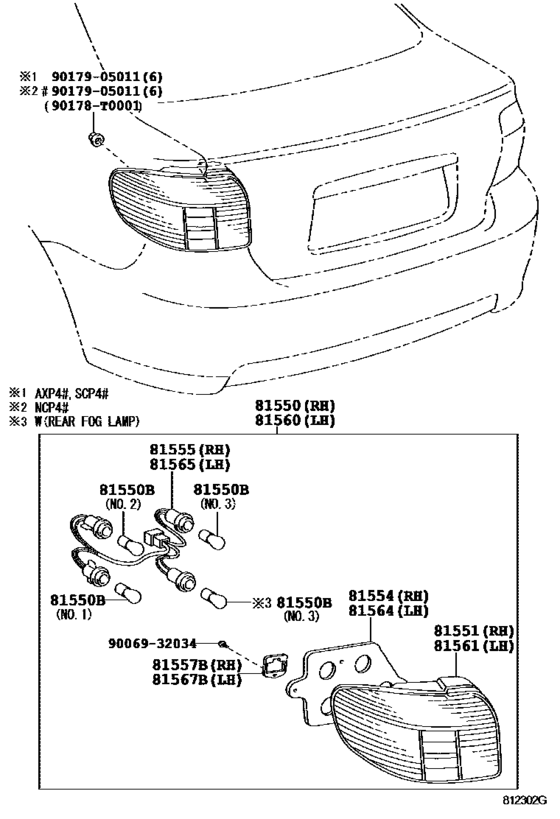

Rear Combination Lamp ([10.2002 - ] (0210- )AXP4#,SCP4# ; (0212- )MA,PHL,TH) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-0D140
Lamp Assy, Rear Combination, Rh
[11.2005 - 08.2006] AXP4# |
81550-0D140 |
— | ||
| replacement | |||||
|
81550
|
81550
81550-0D141
Lamp Assy, Rear Combination, Rh
[11.2005 - 08.2006] AXP4# |
81550-0D141 |
— | ||
|
81550B
|
81550B
90981-15009 Bulb(For Headlamp, No.2)[11.2005 - 08.2006] AXP4# 12V 21W,AMBER,NO.2 |
90981-15009 |
from US $5.05 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[11.2005 - 08.2006] AXP4# 12V 21W,NO.3 |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[11.2005 - 08.2006] AXP4# 12V 21/5W,NO.1 |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-0D140
Lens, Rear Combination Lamp, Rh
[11.2005 - 08.2006] AXP4# |
81551-0D140 |
— | ||
|
81554
|
81554
81554-0D140
Gasket, Rear Combination Lamp Body, Rh
[11.2005 - 08.2006] AXP4# |
81554-0D140 |
— | ||
|
81555
|
81555
81555-0D140
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[11.2005 - 08.2006] AXP4# |
81555-0D140 |
— | ||
|
81560
|
81560
81560-0D140
Lamp Assy, Rear Combination, Lh
[11.2005 - 08.2006] AXP4# |
81560-0D140 |
— | ||
| replacement | |||||
|
81560
|
81560
81560-0D141
Lamp Assy, Rear Combination, Lh
[11.2005 - 08.2006] AXP4# |
81560-0D141 |
— | ||
|
81561
|
81561
81561-0D140
Lens, Rear Combination Lamp, Lh
[11.2005 - 08.2006] AXP4# |
81561-0D140 |
— | ||
|
81564
|
81564
81564-0D140
Gasket, Rear Combination Lamp Body, Lh
[11.2005 - 08.2006] AXP4# |
81564-0D140 |
— | ||
| replacement | |||||
|
81564
|
81564
81554-0D140
Gasket, Rear Combination Lamp Body, Rh
[11.2005 - 08.2006] AXP4# |
81554-0D140 |
— | ||
|
81565
|
81565
81565-0D140
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[11.2005 - 08.2006] AXP4# |
81565-0D140 |
— | ||
| replacement | |||||
|
81565
|
81565
81555-0D140
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[11.2005 - 08.2006] AXP4# |
81555-0D140 |
— | ||
|
90178T0001
|
90178T0001
90178-T0001
Nut Flange
|
90178-T0001 |
— | ||
|
9006932034
|
9006932034
90069-32034
New Genuine Part
|
90069-32034 |
— | ||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
