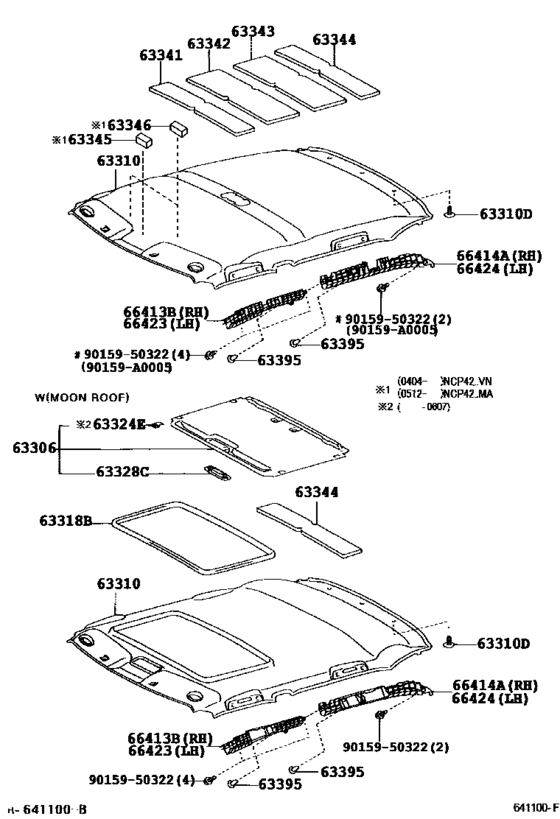

Roof Headlining & Silencer Pad ([10.2002 - ] (0210- )) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63306
|
63306
63306-0D020-B2
Trim Sub-Assy, Sunshade
[11.2005 - 06.2006] AXP42..GLS LT. GRAY,TRIM1# |
63306-0D020-B2 |
— | ||
| replacement | |||||
|
63306
|
63306
63306-0D022-B2
Trim Sub-Assy, Sunshade
[11.2005 - 06.2006] AXP42..GLS LT. GRAY,TRIM1# |
63306-0D022-B2 |
— | ||
|
63306
|
63306
63306-0D021-B2
Trim Sub-Assy, Sunshade
[07.2006 - 08.2006] AXP42..GLS LT. GRAY,TRIM1# |
63306-0D021-B2 |
— | ||
| replacement | |||||
|
63306
|
63306
63306-0D022-B2
Trim Sub-Assy, Sunshade
[07.2006 - 08.2006] AXP42..GLS LT. GRAY,TRIM1# |
63306-0D022-B2 |
— | ||
|
63310
|
63310
63310-0D090-B1
Headlining Assy, Roof
[11.2005 - 08.2006] AXP42..15GLI,GLS LT. GRAY,TRIM1# |
63310-0D090-B1 |
— | ||
| replacement | |||||
|
63310
|
63310
63310-0D340-B0
Headlining Assy, Roof
[11.2005 - 08.2006] AXP42..15GLI,GLS LT. GRAY,TRIM1# |
63310-0D340-B0 |
— | ||
|
63310
|
63310
63310-0D100-B1
Headlining Assy, Roof
[11.2005 - 08.2006] AXP42..GLS W(MOON ROOF),LT. GRAY,TRIM1# |
63310-0D100-B1 |
— | ||
| replacement | |||||
|
63310
|
63310
63310-0D350-B0
Headlining Assy, Roof
[11.2005 - 08.2006] AXP42..GLS W(MOON ROOF),LT. GRAY,TRIM1# |
63310-0D350-B0 |
— | ||
|
63310D
|
63310D
90467-05021-P4 Clip, Rear Window Side Garnish[11.2005 - 08.2006] AXP42..15GLI,GLS LT.GRAY,TRIM1# |
90467-05021-P4 |
from US $1.09 |
||
|
63318B
|
63318B
63318-52010-B0 Moulding, Sun Roof Opening Trim[11.2005 - 08.2006] AXP42..GLS LT.GRAY,TRIM1# |
63318-52010-B0 |
US $33.20 |
||
|
63324E
|
63324E
63324-0D010
Spring, Sunshade Lock
[11.2005 - 07.2006] AXP42..GLS,GLXI |
63324-0D010 |
— | ||
|
63328C
|
63328C
63328-0D020-B0
Knob, Sunshade Trim
[11.2005 - 06.2006] AXP42..GLS LT.GRAY,TRIM1# |
63328-0D020-B0 |
— | ||
|
63328C
|
63328C
63328-12030-B7 Knob, Sunshade Trim[07.2006 - 08.2006] AXP42..GLS LT.GRAY,TRIM1# |
63328-12030-B7 |
US $3.20 |
||
|
63341
|
63341
63341-0D010
Pad, Roof Silencer, No.1
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLS |
63341-0D010 |
— | ||
|
63342
|
63342
63343-0D010
Pad, Roof Silencer, No.1
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLS |
63343-0D010 |
— | ||
|
63343
|
63343
63343-0D010
Pad, Roof Silencer, No.1
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLS |
63343-0D010 |
— | ||
|
63344
|
63344
63341-0D010
Pad, Roof Silencer, No.1
[11.2005 - 08.2006] AXP4# |
63341-0D010 |
— | ||
|
63395
|
63395
90467-05022-C0 Clip(For Room Partition Board)[11.2005 - 08.2006] AXP4# BLACK |
90467-05022-C0 |
US $3.79 |
||
|
66413B
|
66413B
66413-0D030
Spacer, Side Rail, Front Rh
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLS |
66413-0D030 |
— | ||
|
66413B
|
66413B
66413-0D060
Spacer, Side Rail, Front Rh
[11.2005 - 08.2006] AXP42..GLS,GLXI W(MOON ROOF) |
66413-0D060 |
— | ||
|
66414A
|
66414A
66414-0D030
Spacer, Side Rail, Rear Rh
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLS |
66414-0D030 |
— | ||
|
66414A
|
66414A
66414-0D060
Spacer, Side Rail, Rear Rh
[11.2005 - 08.2006] AXP42..GLS,GLXI W(MOON ROOF) |
66414-0D060 |
— | ||
|
66423
|
66423
66423-0D030
Spacer, Side Rail, Front Lh
[11.2005 - 08.2006] AXP4# |
66423-0D030 |
— | ||
|
66424
|
66424
66424-0D030
Spacer, Side Rail, Rear Lh
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLS |
66424-0D030 |
— | ||
|
66424
|
66424
66424-0D060
Spacer, Side Rail, Rear Lh
[11.2005 - 08.2006] AXP42..GLS,GLXI W(MOON ROOF) |
66424-0D060 |
— | ||
|
90159A0005
|
90159A0005
90159-A0005
New Genuine Part
|
90159-A0005 |
— | ||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
