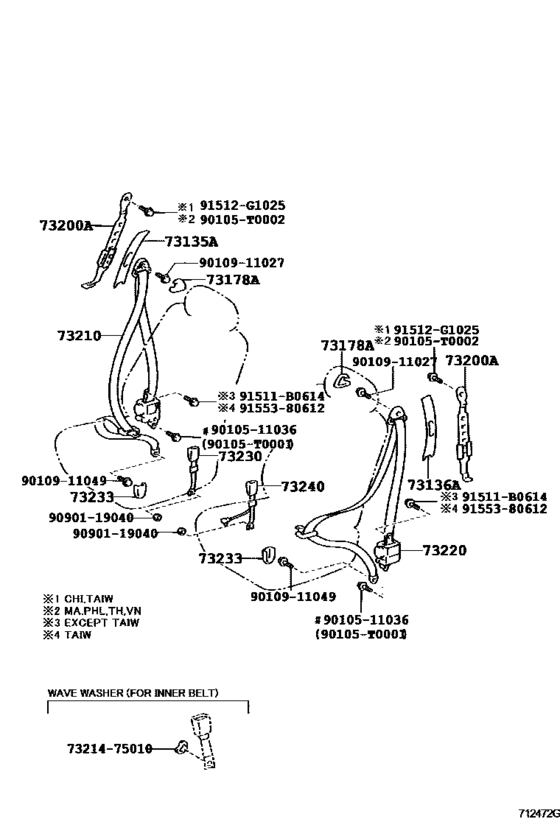

Seat Belt & Child Restraint Seat ([10.2002 - ] FRONT (0210- )) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135A
|
73135A
73135-30030-B2 Cover, Shoulder Belt Anchorage Plate[11.2005 - 08.2006] AXP42..15GLI,GLS LT.GRAY,TRIM1# |
73135-30030-B2 |
US $7.43 |
||
|
73136A
|
73136A
73135-30030-B2 Cover, Shoulder Belt Anchorage Plate[11.2005 - 08.2006] AXP42..15GLI,GLS LT.GRAY,TRIM1# |
73135-30030-B2 |
US $7.43 |
||
|
73178A
|
73178A
73178-33020-B3 Cap, Seat Belt Anchor Cover[11.2005 - 08.2006] AXP42..15GLI,GLS LT.GRAY,TRIM1# |
73178-33020-B3 |
from US $4.68 |
||
|
73200A
|
73200A
73200-0D010-B0
Adjuster Assy, Front Shoulder Belt Anchor
[11.2005 - 08.2006] AXP42..15GLI,GLS LT.GRAY,TRIM1# |
73200-0D010-B0 |
— | ||
|
73210
|
73210
73210-0D122-C0
Belt Assy, Front Seat Outer, Rh
[11.2005 - 08.2006] AXP42..15GLI,GLS BLACK,TRIM1# |
73210-0D122-C0 |
— | ||
|
73220
|
73220
73220-0D072-C0
Belt Assy, Front Seat Outer, Lh
[11.2005 - 08.2006] AXP42..15GLI,GLS BLACK,TRIM1# |
73220-0D072-C0 |
— | ||
|
73230
|
73230
73230-0D020-B0
Belt Assy, Front Seat Inner, Rh
[11.2005 - 08.2006] AXP42..15GLI,GLS DK.GRAY,TRIM1# |
73230-0D020-B0 |
— | ||
|
73233
|
73233
73233-33010-B8 Cover, Seat Belt Anchor[11.2005 - 08.2006] AXP42..15GLI,GLS DK.GRAY,TRIM1# |
73233-33010-B8 |
from US $3.41 |
||
|
73240
|
73240
73230-0D030-B0
Belt Assy, Front Seat Inner, Lh
[11.2005 - 08.2006] AXP42..15GLI,GLS DK.GRAY,TRIM1# |
73230-0D030-B0 |
— | ||
|
90105T0001
|
90105T0001
90105-T0001
New Genuine Part
|
90105-T0001 |
— | ||
|
90105T0002
|
90105T0002
90105-T0002 New Genuine Part |
90105-T0002 |
US $1.31 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $3.05 |
||
|
9010511036
|
9010511036
90105-11036 New Genuine Part |
90105-11036 |
US $1.97 |
||
|
9010911027
|
9010911027
90109-11027 BOLT |
90109-11027 |
US $3.94 |
||
|
9010911049
|
9010911049
90109-11049 BOLT |
90109-11049 |
US $4.02 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $2.15 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
||
