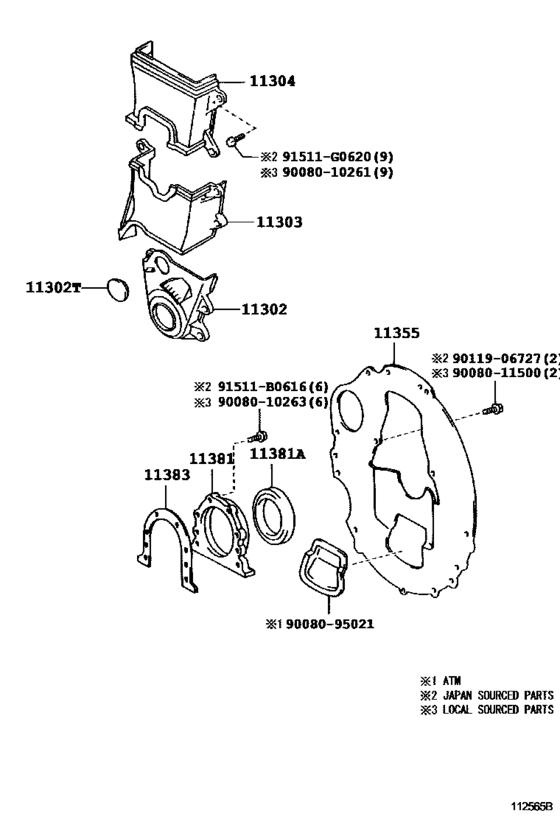

Timing Gear Cover & Rear End Plate ([10.2002 - ] (0210- )5AFE,8AFE) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-02090
Cover Sub-Assy, Timing Chain Or Belt
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
11302-02090 |
— | ||
|
11302
|
11302
11302-16040 Cover Sub-Assy, Timing Chain Or Belt[11.2005 -] 5AFE,8AFE..AXP4# (J) |
11302-16040 |
US $37.91 |
||
|
11302T
|
11302T
90950-01783 Plug, Hole[11.2005 -] 5AFE,8AFE..AXP4# (J) |
90950-01783 |
US $1.49 |
||
|
11302T
|
11302T
90950-C1003
Plug, Hole
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
90950-C1003 |
— | ||
|
11303
|
11303
11303-02100
Cover Sub-Assy, Crankshaft Gear Or Pulley
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
11303-02100 |
— | ||
|
11303
|
11303
11303-16060 Cover Sub-Assy, Crankshaft Gear Or Pulley[11.2005 -] 5AFE,8AFE..AXP4# (J) |
11303-16060 |
US $37.91 |
||
|
11304
|
11304
11304-02070 Cover, Timing Chain Or Belt, No.2[11.2005 -] 5AFE,8AFE..AXP4# (L) |
11304-02070 |
US $20.38 |
||
|
11304
|
11304
11304-15030 Cover, Timing Chain Or Belt, No.2[11.2005 -] 5AFE,8AFE..AXP4# (J) |
11304-15030 |
US $45.02 |
||
|
11355
|
11355
11355-02090
Plate, Rear End
[11.2005 -] 5AFE,8AFE..AXP4#..ATM |
11355-02090 |
— | ||
|
11381
|
11381
11381-02030
Retainer, Engine Rear Oil Seal
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
11381-02030 |
— | ||
|
11381
|
11381
11381-15010 Retainer, Engine Rear Oil Seal[11.2005 -] 5AFE,8AFE..AXP4# (J) |
11381-15010 |
US $47.04 |
||
|
11381A
|
11381A
90080-31076
Seal, Engine Rear Oil
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
90080-31076 |
— | ||
|
11381A
|
11381A
90311-70007 Seal, Engine Rear Oil[11.2005 -] 5AFE,8AFE..AXP4# (J) |
90311-70007 |
from US $18.14 |
||
|
11383
|
11383
11383-02040 Gasket, Engine Rear Oil Seal RetainerENGINE REAR OIL SEAL RETAINER [11.2005 -] 5AFE,8AFE..AXP4# (L) |
11383-02040 |
US $7.43 |
||
|
11383
|
11383
11383-16010 Gasket, Engine Rear Oil Seal Retainer[11.2005 -] 5AFE,8AFE..AXP4# (J) |
11383-16010 |
from US $3.74 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91511G0620
|
91511G0620
91511-G0620 BOLT, FLANGE |
91511-G0620 |
US $1.97 |
||
|
9008010261
|
9008010261
90080-10261
New Genuine Part
|
90080-10261 |
— | ||
|
9008010263
|
9008010263
90080-10263
New Genuine Part
|
90080-10263 |
— | ||
|
9008011500
|
9008011500
90080-11500 New Genuine Part |
90080-11500 |
US $1.31 |
||
|
9008095021
|
9008095021
90080-95021
New Genuine Part
|
90080-95021 |
— | ||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $2.15 |
||
