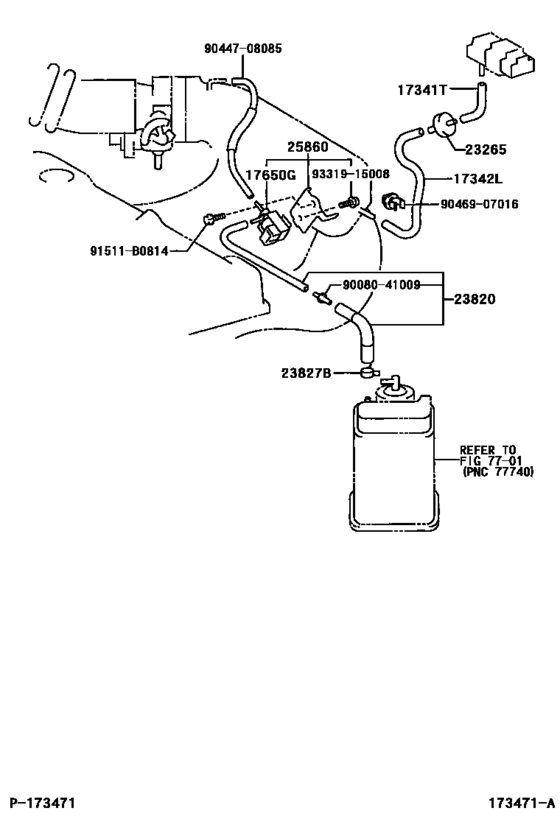

Vacuum Piping ([10.2002 - ] (0210- )5AFE,8AFE) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341T
|
17341T
17341-14031 Hose, Air, No.1AIR, NO.1 [11.2005 -] 5AFE,8AFE..AXP4# |
17341-14031 |
US $6.12 |
||
|
17342L
|
17342L
17342-14021 Hose, Air, No.2AIR, NO.2 [11.2005 -] 5AFE,8AFE..AXP4# |
17342-14021 |
US $7.28 |
||
|
17650G
|
17650G
90910-12244
Valve, Duty Vacuum Switching
[11.2005 -] 5AFE,8AFE..AXP4# |
90910-12244 |
— | ||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[11.2005 -] 5AFE,8AFE..AXP4# |
90917-11030 |
from US $8.56 |
||
|
23820
|
23820
23820-02010
Hose Assy, Fuel Vapor Feed
[11.2005 -] 5AFE,8AFE..AXP4# |
23820-02010 |
— | ||
|
23827B
|
23827B
96132-51100 Clip (For Hose)[11.2005 -] 5AFE,8AFE..AXP4# |
96132-51100 |
from US $1.42 |
||
|
25860
|
25860
25860-14030 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [11.2005 -] 5AFE,8AFE..AXP4# |
25860-14030 |
US $62.03 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9008041009
|
9008041009
90080-41009
New Genuine Part
|
90080-41009 |
— | ||
|
9044708085
|
9044708085
90447-08085 New Genuine Part |
90447-08085 |
US $8.44 |
||
|
9046907016
|
9046907016
90469-07016 New Genuine Part |
90469-07016 |
US $2.04 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
