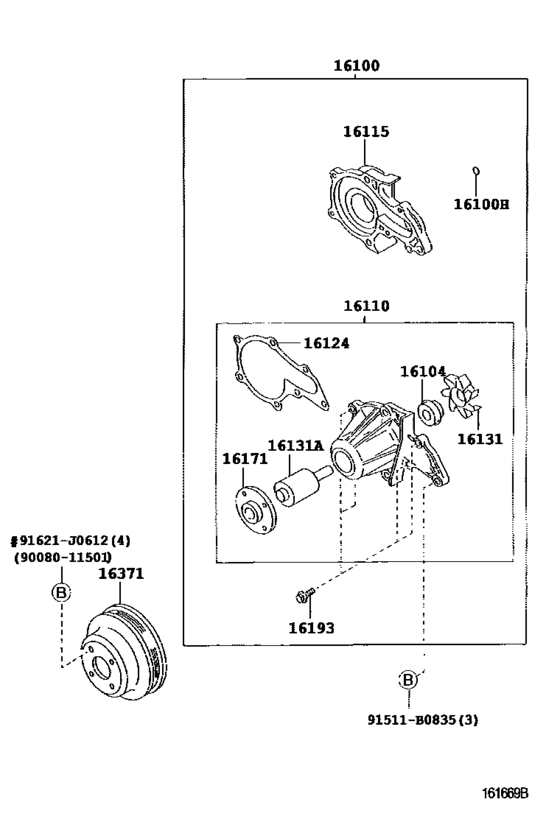

Water Pump ([10.2002 - ] (0210- )5AFE,8AFE) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09381
Pump Assy, Engine Water
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
16100-09381 |
— | ||
|
16100
|
16100
16100-19337
Pump Assy, Engine Water
[11.2005 -] 5AFE,8AFE..AXP4# (J) |
16100-19337 |
— | ||
|
16100H
|
16100H
90301-C0006
Ring, O(For Water Pump)
[01.2006 -] 5AFE,8AFE..AXP4# (L) |
90301-C0006 |
— | ||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[11.2005 - 01.2006] 5AFE,8AFE..AXP4# |
96761-24035 |
from US $2.73 |
||
|
16104
|
16104
16104-46060 Seal Set, Water Pump[11.2005 - 06.2006] 5AFE,8AFE..AXP4# |
16104-46060 |
US $47.61 |
||
|
16110
|
16110
16110-09060
Pump Assy, Water, W/o Coupling
[11.2005 - 08.2006] 5AFE,8AFE..AXP4# |
16110-09060 |
— | ||
|
16115
|
16115
16113-02080
Cover, Water Pump
[11.2005 -] 5AFE,8AFE..AXP4# (L) |
16113-02080 |
— | ||
|
16115
|
16115
16113-16070
Cover, Water Pump
[11.2005 -] 5AFE,8AFE..AXP4# (J) |
16113-16070 |
— | ||
|
16124
|
16124
16124-15110 Gasket, Water Pump Cover[11.2005 -] 5AFE,8AFE..AXP4# |
16124-15110 |
from US $2.50 |
||
|
16171
|
16171
16171-10012 Seat, Water Pump Pulley[11.2005 -] 5AFE,8AFE..AXP4# |
16171-10012 |
US $19.66 |
||
|
16193
|
16193
16193-15011 Bolt, Stud(For Water Pump Cover)[11.2005 -] 5AFE,8AFE..AXP4# |
16193-15011 |
US $5.38 |
||
|
16371
|
16371
16371-15071 Pulley, Fan[11.2005 -] 5AFE,8AFE..AXP4# |
16371-15071 |
US $37.27 |
||
|
91511B0835
|
91511B0835
91511-B0835
Bolt(For Cylinder Head Set Sub)
|
91511-B0835 |
— | ||
| replacement | |||||
|
91511B0835
|
91511B0835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9008011501
|
9008011501
90080-11501
New Genuine Part
|
90080-11501 |
— | ||
