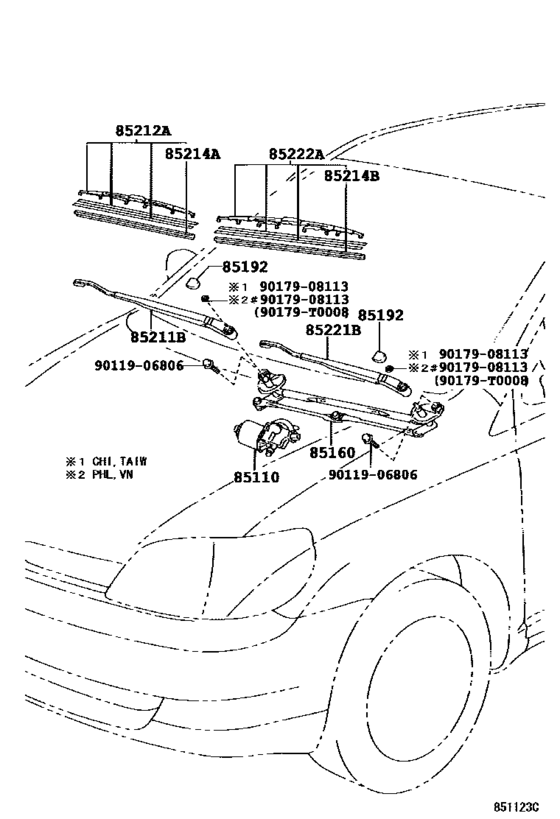

Windshield Wiper ([10.2002 - ] (0210- )LHD) Diagram Toyota VIOS
- Year
- 2005 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLS
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 11.2005
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-0D030
Motor Assy, Windshield Wiper
[11.2005 - 08.2006] AXP4# |
85110-0D030 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-0D031
Motor Assy, Windshield Wiper
[11.2005 - 08.2006] AXP4# |
85110-0D031 |
— | ||
|
85160
|
85160
85150-0D030
Link Assy, Windshield Wiper
[11.2005 - 08.2006] AXP4# |
85150-0D030 |
— | ||
|
85192
|
85192
85292-16010 Cover, Windshield Wiper Arm[11.2005 - 08.2006] AXP4# |
85292-16010 |
US $7.35 |
||
|
85211B
|
85211B
85211-0D030
Arm, Front Wiper, Rh
[11.2005 - 08.2006] AXP4# |
85211-0D030 |
— | ||
|
85212A
|
85212A
85212-0D020
Blade, Fr Wiper, Rh
[11.2005 - 08.2006] AXP4# |
85212-0D020 |
— | ||
|
85214A
|
85214A
85214-0D040
Rubber, Wiper, Rh
[11.2005 - 08.2006] AXP4# |
85214-0D040 |
— | ||
|
85214B
|
85214B
85214-0D050
Rubber, Wiper, Lh
[11.2005 - 08.2006] AXP4# |
85214-0D050 |
— | ||
|
85221B
|
85221B
85221-0D030
Arm, Front Wiper, Lh
[11.2005 - 08.2006] AXP4# |
85221-0D030 |
— | ||
|
85222A
|
85222A
85222-0D020
Blade, Fr Wiper, Lh
[11.2005 - 08.2006] AXP4# |
85222-0D020 |
— | ||
|
90179T0008
|
90179T0008
90179-T0008
Nut (For Front Wiper Arm Setting)
|
90179-T0008 |
— | ||
|
9011906806
|
9011906806
90119-06806 New Genuine Part |
90119-06806 |
US $1.61 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $0.98 |
||
