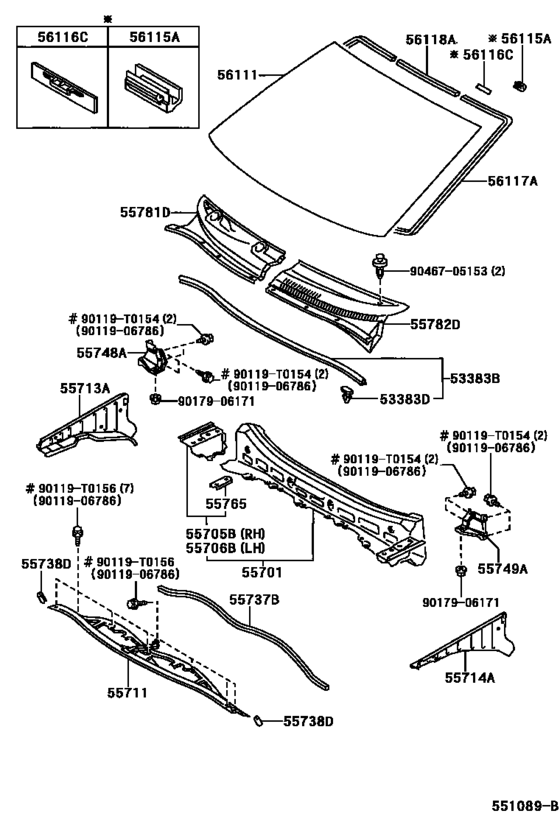

Cowl Panel & Windshield Glass ([12.2002 - ] (0212- )RHD) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-0D030
Seal, Hood To Cowl Top
[12.2002 - 03.2006] NCP4# |
53383-0D030 |
— | ||
|
53383D
|
53383D
90467-08108 Clip(For Hood To Cowl Top Seal)[12.2002 - 03.2006] NCP4# |
90467-08108 |
from US $0.82 |
||
|
55701
|
55701
55700-0D050
Panel Sub-Assy, Cowl
[12.2002 - 12.2005] NCP42..RHD |
55700-0D050 |
— | ||
|
55705B
|
55705B
55705-0D020
Panel Sub-Assy, Cowl Top Side, Rh
[12.2002 - 03.2006] NCP4# |
55705-0D020 |
— | ||
|
55706B
|
55706B
55706-0D020
Panel Sub-Assy, Cowl Top Side, Lh
[12.2002 - 03.2006] NCP4# |
55706-0D020 |
— | ||
|
55711
|
55711
55701-0D050
Panel, Cowl Top, Outer
[12.2002 - 12.2005] NCP42..RHD |
55701-0D050 |
— | ||
|
55713A
|
55713A
55713-0D010
Panel, Cowl Top Side, Rh
[12.2002 - 03.2006] NCP4# |
55713-0D010 |
— | ||
|
55714A
|
55714A
55714-0D010
Panel, Cowl Top Side, Lh
[12.2002 - 03.2006] NCP4# |
55714-0D010 |
— | ||
|
55737B
|
55737B
55737-0D020
Seal, Heater Air Duct Splash Shield, No.1
[12.2002 - 12.2005] NCP42..RHD (L) |
55737-0D020 |
— | ||
|
55738D
|
55738D
55738-0D020
Seal, Heater Air Duct Splash Shield, No.2
[12.2002 - 03.2006] NCP4# |
55738-0D020 |
— | ||
|
55748A
|
55748A
55748-0D020
Brace, Cowl Top Inner To Pillar
[12.2002 - 12.2005] NCP42..RHD |
55748-0D020 |
— | ||
|
55749A
|
55749A
55749-0D020
Brace, Cowl Top Inner To Pillar, Lh
[12.2002 - 12.2005] NCP42..RHD |
55749-0D020 |
— | ||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[12.2002 - 03.2006] NCP4# |
55765-44010 |
US $4.96 |
||
|
55781D
|
55781D
55781-0D070 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [12.2002 - 12.2005] NCP42..RHD |
55781-0D070 |
US $24.77 |
||
|
55782D
|
55782D
55782-0D060
Louver, Cowl Top Ventilator, Lh
[12.2002 - 12.2005] NCP42..RHD |
55782-0D060 |
— | ||
|
56111
|
56111
56101-0D040
Glass, Windshield
[12.2002 - 12.2005] NCP42..RHD *LAM,T=4.76,GREEN |
56101-0D040 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[03.2003 - 03.2006] NCP4# |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[03.2003 - 03.2006] NCP4# |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-52100 Dam, Window Glass Adhesive[03.2003 - 03.2006] NCP4#..MA,PHL,VN L=3095 |
56117-52100 |
US $18.05 |
||
| replacement | |||||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[03.2003 - 03.2006] NCP4#..MA,PHL,VN L=3095 |
56117-64010 |
from US $22.50 |
||
|
56118A
|
56118A
56118-52060 Dam, Window Glass Adhesive, No.2[03.2003 - 03.2006] NCP4#..MA,PHL,VN L=618 |
56118-52060 |
US $8.15 |
||
| replacement | |||||
|
56118A
|
56118A
56117-52040
Dam, Window Glass Adhesive
[03.2003 - 03.2006] NCP4#..MA,PHL,VN L=618 |
56117-52040 |
— | ||
|
90119T0154
|
90119T0154
90119-T0154
New Genuine Part
|
90119-T0154 |
— | ||
|
90119T0156
|
90119T0156
90119-T0156 New Genuine Part |
90119-T0156 |
US $0.44 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
from US $0.96 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.92 |
||
|
9046705153
|
9046705153
90467-05153 CLIP |
90467-05153 |
from US $1.23 |
||
