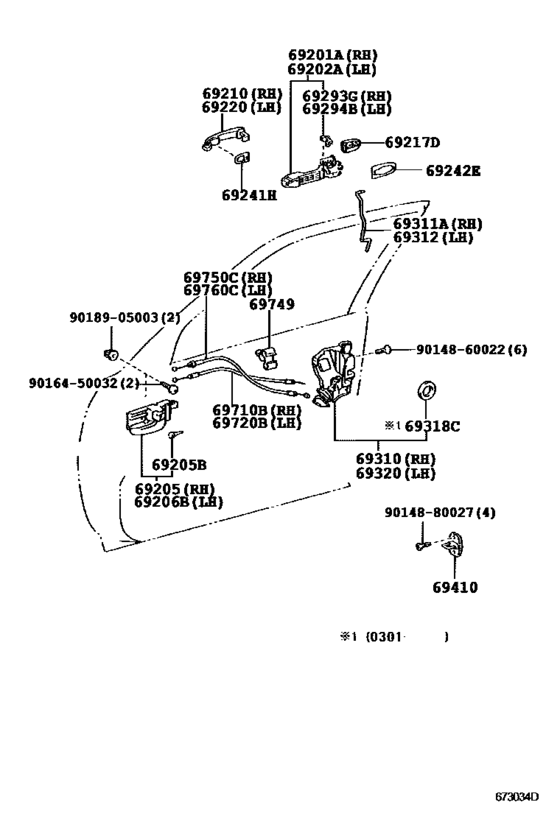

Front Door Lock & Handle ([12.2002 - ] (0212- )NCP4#) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69201A
|
69201A
69201-06010 Frame Sub-Assy, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [12.2002 - 03.2006] NCP4#..MA,PHL,TH |
69201-06010 |
US $50.37 |
||
|
69202A
|
69202A
69202-06010 Frame Sub-Assy, Front Door Outside Handle, LhFRONT DOOR OUTSIDE HANDLE, LH [12.2002 - 03.2006] NCP4#..MA,PHL,TH |
69202-06010 |
US $59.38 |
||
|
69205
|
69205
69205-0D070-A0
Handle Sub-Assy, Front Door Inside, Rh
[12.2005 - 08.2007] NCP42..15E..MA IVORY,TRIM0# |
69205-0D070-A0 |
— | ||
|
69205
|
69205
69205-0D070-B0
Handle Sub-Assy, Front Door Inside, Rh
[03.2003 - 03.2006] NCP42..PHL,VN;NCP4#..13E,13STD,15E,15J DK.GRAY,TRIM1# |
69205-0D070-B0 |
— | ||
|
69205B
|
69205B
90541-04027 Cushion(For Front Door Inside Handle)[12.2002 - 03.2006] NCP4# |
90541-04027 |
from US $1.60 |
||
|
69206B
|
69206B
69206-0D070-A0
Handle Sub-Assy, Front Door Inside, Lh
[12.2005 - 08.2007] NCP42..15E..MA IVORY,TRIM0# |
69206-0D070-A0 |
— | ||
|
69206B
|
69206B
69206-0D070-B0
Handle Sub-Assy, Front Door Inside, Lh
[03.2003 - 03.2006] NCP42..PHL,VN;NCP4#..13E,13STD,15E,15J DK.GRAY,TRIM1# |
69206-0D070-B0 |
— | ||
|
69210
|
69210
69210-06905
Handle Assy, Front Door, Outside Rh
[12.2002 - 03.2006] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) LESS COLOR |
69210-06905 |
— | ||
|
69217D
|
69217D
69217-06900
Cover, Front Door Outside Handle, Rh
[12.2002 - 03.2006] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) LESS COLOR |
69217-06900 |
— | ||
| replacement | |||||
|
69217D
|
69217D
69217-06908 Cover, Front Door Outside Handle, Rh[12.2002 - 03.2006] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) LESS COLOR |
69217-06908 |
US $3.04 |
||
|
69217D
|
69217D
69217-06908 Cover, Front Door Outside Handle, Rh[10.2005 - 09.2007] NCP42..PHL,VN;NCP4#..(13E,15E,15J)..(MA,PHL,TH) LESS COLOR |
69217-06908 |
US $3.04 |
||
|
69220
|
69220
69210-06905
Handle Assy, Front Door, Outside Rh
[12.2002 - 03.2006] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) LESS COLOR |
69210-06905 |
— | ||
|
69241H
|
69241H
69241-06020
Pad, Rear Door Outside Handle, Front
[12.2002 - 03.2006] NCP4#..MA,PHL,TH |
69241-06020 |
— | ||
|
69242E
|
69242E
69242-06020
Pad, Front Door Outside Handle, Rear
[12.2002 - 03.2006] NCP4#..MA,PHL,TH |
69242-06020 |
— | ||
|
69293G
|
69293G
69293-33010 Snap, Front Door Outside Handle[12.2002 - 03.2006] NCP4#..MA,PHL,TH |
69293-33010 |
US $1.28 |
||
|
69294B
|
69294B
69293-33020 Snap, Front Door Outside Handle[12.2002 - 03.2006] NCP4#..MA,PHL,TH |
69293-33020 |
US $1.16 |
||
|
69310
|
69310
69030-33241 Lock Assy, Front Door W/motor, Rh[03.2003 - 12.2005] NCP42..RHD..(15E,15G,15S) W(POWER DOOR LOCK) |
69030-33241 |
US $259.20 |
||
|
69311A
|
69311A
69311-52110 Rod, Front Door Lock Open, RhFRONT DOOR LOCK OPEN, RH [03.2003 - 12.2005] NCP4#..MA,PHL,TH |
69311-52110 |
US $9.32 |
||
|
69312
|
69312
69312-52110 Rod, Front Door Lock Open, LhFRONT DOOR LOCK OPEN, LH [03.2003 - 12.2005] NCP4#..MA,PHL,TH |
69312-52110 |
US $9.32 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[10.2005 -] NCP4# |
69318-51010 |
from US $1.64 |
||
|
69320
|
69320
69040-13051 Lock Assy, Front Door W/motor, Lh[03.2003 - 12.2005] NCP42..RHD..(15E,15G,15S) W(POWER DOOR LOCK) |
69040-13051 |
US $194.48 |
||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[12.2002 - 12.2005] NCP4#..MA,PHL,TH,VN |
69410-20110 |
US $15.96 |
||
|
69710B
|
69710B
69710-0D070
Cable Assy, Front Door Lock Remote Control, Rh
[12.2002 - 12.2005] NCP42..MA |
69710-0D070 |
— | ||
|
69720B
|
69720B
69710-0D070
Cable Assy, Front Door Lock Remote Control, Rh
[12.2002 - 12.2005] NCP42..MA |
69710-0D070 |
— | ||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[12.2002 - 03.2006] NCP4# |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-0D030
Cable Assy, Front Door Inside Locking, Rh
[12.2002 - 12.2005] NCP42..MA |
69750-0D030 |
— | ||
|
69760C
|
69760C
69760-0D030
Cable Assy, Front Door Inside Locking Lh
[12.2002 - 12.2005] NCP42..MA |
69760-0D030 |
— | ||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
