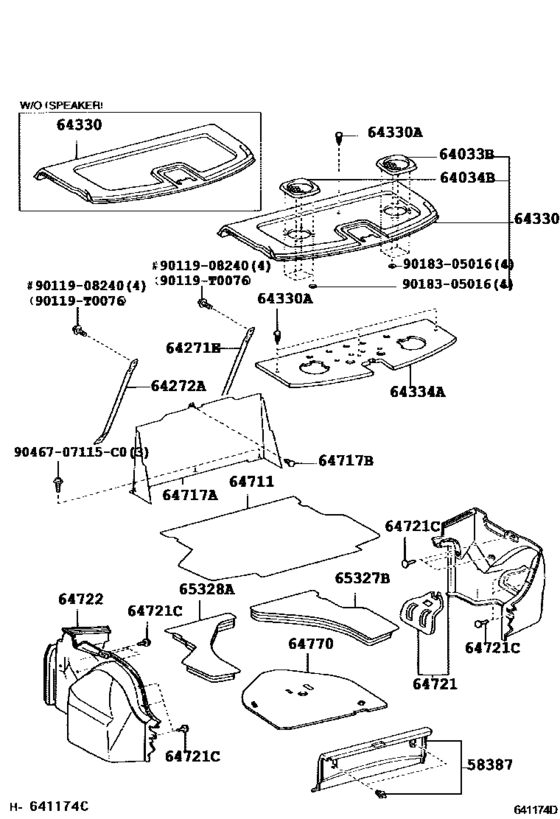

Package Tray Panel & Luggage Compartment Mat ([12.2002 - ] (0212- )MA,PHL,TH ; (0401- )VN) Diagram Toyota VIOS
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- NCP42
- grade
- 15E
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- MA
- Model
- SOLUNA VIOS
- From
- 05.2003
- To
- 08.2007
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-0D050
Plate, Rear Floor Finish
[05.2003 - 12.2005] NCP4#..MA,PHL,TH |
58387-0D050 |
— | ||
|
64033B
|
64033B
64383-0A010-A0
Grille Sub-Assy, Rear Speaker, Rh
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15S) IVORY,TRIM0# |
64383-0A010-A0 |
— | ||
|
64033B
|
64033B
64383-0A010-B1
Grille Sub-Assy, Rear Speaker, Rh
[12.2002 - 12.2005] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) STONE,TRIM1# |
64383-0A010-B1 |
— | ||
|
64034B
|
64034B
64383-0A010-A0
Grille Sub-Assy, Rear Speaker, Rh
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15S) IVORY,TRIM0# |
64383-0A010-A0 |
— | ||
|
64034B
|
64034B
64383-0A010-B1
Grille Sub-Assy, Rear Speaker, Rh
[12.2002 - 12.2005] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) STONE,TRIM1# |
64383-0A010-B1 |
— | ||
|
64271E
|
64271E
64241-0D020
Panel, Room Partition
[12.2002 - 03.2006] NCP4# |
64241-0D020 |
— | ||
|
64272A
|
64272A
64242-0D020
Panel, Room Partition, Lh
[12.2002 - 03.2006] NCP4# |
64242-0D020 |
— | ||
|
64330
|
64330
64330-0D040-A0
Panel Assy, Package Tray Trim
[10.2005 - 08.2007] NCP42..RHD..ATM..(15E,15S) W(SPEAKER GRILLE),IVORY,TRIM0# |
64330-0D040-A0 |
— | ||
|
64330
|
64330
64330-0D040-B2
Panel Assy, Package Tray Trim
[12.2002 - 12.2005] NCP42..PHL;NCP4#..(13E,15E)..(MA,PHL,TH) W(SPEAKER GRILLE),STONE,TRIM1# |
64330-0D040-B2 |
— | ||
|
64330A
|
64330A
90467-06061-A0 Clip(For Front Floor Silencer)[10.2005 - 03.2013] NCP42..15G..TAIW;NCP42..ATM..(15E,15S) IVORY,TRIM0# |
90467-06061-A0 |
US $1.31 |
||
|
64330A
|
64330A
90467-06061-B1 Clip(For Package Tray Trim Panel)[12.2002 - 03.2006] NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH) STONE,TRIM1# |
90467-06061-B1 |
US $1.60 |
||
|
64334A
|
64334A
64334-0D030
Pad, Package Tray Trim
[12.2002 - 12.2005] NCP4#..MA,PHL,TH |
64334-0D030 |
— | ||
|
64711
|
64711
64711-0D031-C1
Mat, Luggage Compartment Floor
[05.2003 - 03.2006] NCP42..15E..MA;NCP42..MTM..(15E,15S);NCP4#..(13E,13STD,15G,15J)..(MA,PHL,TH,VN) BLACK,TRIM1# |
64711-0D031-C1 |
— | ||
|
64717A
|
64717A
64717-0D020
Cover, Luggage Compartment Trim, Front
[12.2002 - 03.2006] NCP4#..MA,PHL,TH,VN |
64717-0D020 |
— | ||
|
64717B
|
64717B
90467-06061-A0 Clip(For Front Floor Silencer)[10.2005 - 03.2013] NCP42..ATM..(15E,15S);NCP42..(15G,15J)..TAIW IVORY,TRIM0# |
90467-06061-A0 |
US $1.31 |
||
|
64717B
|
64717B
90467-06061-B1 Clip(For Package Tray Trim Panel)[12.2002 - 03.2006] NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH) STONE,TRIM1# |
90467-06061-B1 |
US $1.60 |
||
|
64721
|
64721
64710-0D031-C1
Cover, Luggage Compartment Trim, Inner Rh
[05.2003 - 12.2005] NCP42..MA BLACK,TRIM1# |
64710-0D031-C1 |
— | ||
|
64721C
|
64721C
90467-08186-C0 Clip(For Front Bumper), No.1[03.2003 - 03.2006] NCP4#..MA,PHL,TH,VN BLACK,TRIM1# |
90467-08186-C0 |
from US $1.12 |
||
|
64722
|
64722
64722-0D031-C1 Cover, Luggage Compartment Trim, Inner LhLUGGAGE COMPARTMENT TRIM, INNER LH [05.2003 - 12.2005] NCP42..MA BLACK,TRIM1# |
64722-0D031-C1 |
US $30.32 |
||
|
64770
|
64770
64770-0D040 Cover Assy, Spare WheelSPARE WHEEL [12.2002 - 03.2006] NCP42..ATM..15S;NCP4#..(13E,13STD,15E,15G,15J)..(MA,PHL,TH,VN) |
64770-0D040 |
US $26.97 |
||
|
65327B
|
65327B
65327-0D010
Plate, Floor Board Side, Rh
[12.2002 - 03.2006] NCP4#..MA,PHL,TH,VN |
65327-0D010 |
— | ||
|
65328A
|
65328A
65328-0D010
Plate, Floor Board Side, Lh
[12.2002 - 03.2006] NCP4#..MA,PHL,TH,VN |
65328-0D010 |
— | ||
|
90119T0076
|
90119T0076
90119-T0076
New Genuine Part
|
90119-T0076 |
— | ||
|
9011908240
|
9011908240
90119-08240 New Genuine Part |
90119-08240 |
US $3.06 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.28 |
||
|
9046707115C0
|
9046707115C0
90467-07115-C0 Clip(For Front Floor Carpet) |
90467-07115-C0 |
US $1.16 |
