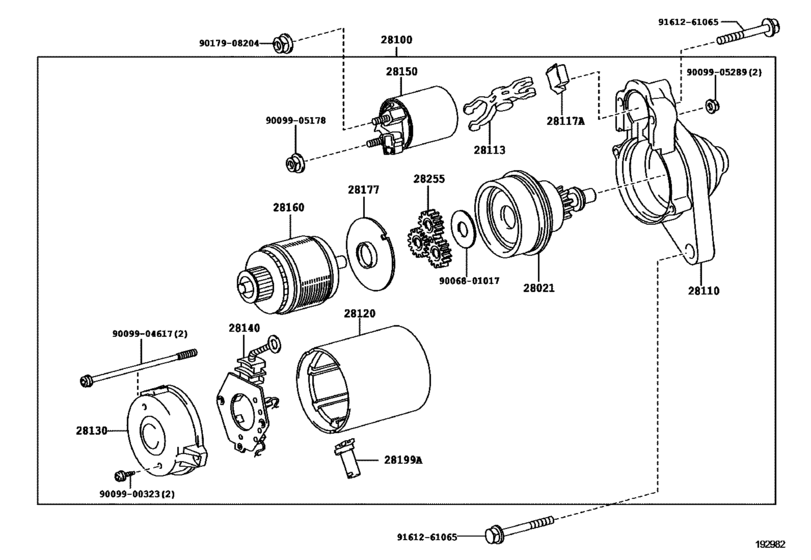

Starter ([02.2008 - 01.2012] 12V 1.6KW (0802-1201)2NZFE) Diagram Toyota VIOS
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- NCP92
- grade
- GLI
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- Model
- VIOS (CHINA)
- From
- 02.2008
- To
- 07.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- VIOS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-37050 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [02.2008 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28021-37050 |
US $151.42 |
||
|
28100
|
28100
28100-0M070
Starter Assy
[02.2008 - 08.2010] 2NZFE..NCP92 12V 1.6KW |
28100-0M070 |
— | ||
|
28110
|
28110
28110-0M070
Housing Assy, Starter Drive
[02.2008 - 08.2010] 2NZFE..NCP92 |
28110-0M070 |
— | ||
|
28113
|
28113
28113-0T020
Lever, Starter Pinion Drive
[02.2008 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28113-0T020 |
— | ||
|
28117A
|
28117A
28117-0T020
Seal, Rubber
[02.2008 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28117-0T020 |
— | ||
|
28120
|
28120
28120-0M070
Yoke Assy, Starter
[02.2008 - 08.2010] 2NZFE..NCP92 |
28120-0M070 |
— | ||
|
28130
|
28130
28130-0M070
Frame Assy, Starter Commutator End
[02.2008 - 08.2010] 2NZFE..NCP92 |
28130-0M070 |
— | ||
|
28140
|
28140
28140-0T020
Holder Assy, Starter Brush
[07.2008 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28140-0T020 |
— | ||
|
28140
|
28140
28140-37050 Holder Assy, Starter BrushSTARTER BRUSH [02.2008 - 07.2008] 2NZFE,1ZRFE..NCP92,ZSP92 |
28140-37050 |
US $30.11 |
||
|
28150
|
28150
28150-0M070
Switch Assy, Magnet Starter
[05.2009 - 08.2010] 2NZFE..NCP92 |
28150-0M070 |
— | ||
|
28150
|
28150
28150-37020 Switch Assy, Magnet Starter[02.2008 - 05.2009] 2NZFE..NCP92 |
28150-37020 |
US $109.08 |
||
|
28160
|
28160
28160-0T020
Armature Assy, Starter
[05.2009 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28160-0T020 |
— | ||
|
28160
|
28160
28160-37050 Armature Assy, Starter[02.2008 - 05.2009] 2NZFE,1ZRFE..NCP92,ZSP92 |
28160-37050 |
US $176.18 |
||
|
28177
|
28177
28177-0T020
Plate(For Starter Armature)
[02.2008 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28177-0T020 |
— | ||
|
28199A
|
28199A
28199-0M070
Protector, Dust Starter
[02.2008 - 08.2010] 2NZFE..NCP92 |
28199-0M070 |
— | ||
|
28255
|
28255
28255-37050
Gear, Planet
[02.2008 - 08.2010] 2NZFE,1ZRFE..NCP92,ZSP92 |
28255-37050 |
— | ||
|
9006801017
|
9006801017
90068-01017
New Genuine Part
|
90068-01017 |
— | ||
|
9009900323
|
9009900323
90099-00323
Screw, Starter
|
90099-00323 |
— | ||
|
9009904617
|
9009904617
90099-04617
New Genuine Part
|
90099-04617 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009905289
|
9009905289
90099-05289
New Genuine Part
|
90099-05289 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
