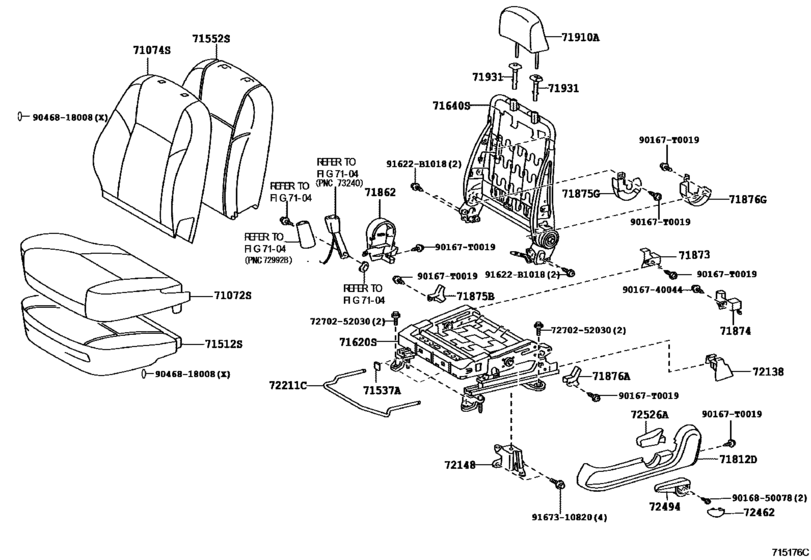

Front Seat & Seat Track ([02.2007 - ] DRIVER SEAT (0702- )LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71072S
|
71072S
71072-0D540-B1
Cover, Front Seat Cushion, Lh(For Separate Type)
[09.2007 - 04.2010] NCP93..LIMO..VN DARK GRAY,TRIM1# |
71072-0D540-B1 |
— | ||
|
71074S
|
71074S
71074-0D410-B0
Cover, Front Seat Back, Lh(For Separate Type)
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1# |
71074-0D410-B0 |
— | ||
|
71512S
|
71512S
71512-0D070
Pad, Front Seat Cushion, Lh (For Separate Type)
[09.2007 - 04.2010] NCP93..VN |
71512-0D070 |
— | ||
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[02.2007 - 04.2010] NCP9# |
71537-26010 |
US $0.96 |
||
|
71552S
|
71552S
71552-0D090
Pad, Front Seat Back, Lh(For Separate Type)
[09.2007 - 04.2010] NCP93..MTM..VN |
71552-0D090 |
— | ||
|
71620S
|
71620S
71620-0D050
Spring Assy, Front Seat Cushion, Lh(For Separate Type)
[09.2007 - 04.2010] NCP93..VN |
71620-0D050 |
— | ||
| replacements | |||||
|
71620S
|
71620S
71620-0D051
New Genuine Part
[09.2007 - 04.2010] NCP93..VN |
71620-0D051 |
— | ||
|
71620S
|
71620S
73214-0K010
Plate, Front Seat Belt Anchor
[09.2007 - 04.2010] NCP93..VN |
73214-0K010 |
— | ||
|
71640S
|
71640S
71640-0D150
Spring Assy, Front Seat Back, Lh(For Separate Type)
[09.2007 - 04.2010] NCP93..VN |
71640-0D150 |
— | ||
|
71812D
|
71812D
71812-0D150-B0
Shield, Front Seat Cushion, Lh
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1#; NCP93..(E,G)..VN DK.GRAY,TRIM4# |
71812-0D150-B0 |
— | ||
|
71862
|
71862
71862-0D080-B0
Shield, Front Seat Cushion, Inner Lh
[02.2007 - 04.2010] NCP93..(15G,E,G)..(IDN,VN) DK.GRAY,TRIM4#; NCP93..15E..IDN;NCP93..15J,15S,LIMO DK.GRAY,TRIM1# |
71862-0D080-B0 |
— | ||
|
71873
|
71873
71873-0D050
Shield, Front Seat Cushion, Lower Rh
[09.2008 - 04.2010] NCP93..IDN,TH,VN |
71873-0D050 |
— | ||
|
71873
|
71873
71873-0D050-B0
Shield, Front Seat Cushion, Lower Rh
[02.2007 - 09.2008] NCP93..(15S,LIMO)..(TH,VN) DK.GRAY,TRIM1#; NCP93..LIMO..IDN;NCP93..(15E,15G,15J,E)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71873-0D050-B0 |
— | ||
| replacement | |||||
|
71873
|
71873
71873-0D050
Shield, Front Seat Cushion, Lower Rh
[02.2007 - 09.2008] NCP93..(15S,LIMO)..(TH,VN) DK.GRAY,TRIM1#; NCP93..LIMO..IDN;NCP93..(15E,15G,15J,E)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71873-0D050 |
— | ||
|
71874
|
71874
71874-0D050
Shield, Front Seat Cushion, Lower Lh
[09.2008 - 04.2010] NCP93..IDN,TH,VN |
71874-0D050 |
— | ||
|
71874
|
71874
71874-0D050-B0
Shield, Front Seat Cushion, Lower Lh
[02.2007 - 09.2008] NCP93..(15S,LIMO)..(TH,VN) DK.GRAY,TRIM1#; NCP93..LIMO..IDN;NCP93..(15E,15G,15J,E)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71874-0D050-B0 |
— | ||
| replacement | |||||
|
71874
|
71874
71874-0D050
Shield, Front Seat Cushion, Lower Lh
[02.2007 - 09.2008] NCP93..(15S,LIMO)..(TH,VN) DK.GRAY,TRIM1#; NCP93..LIMO..IDN;NCP93..(15E,15G,15J,E)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71874-0D050 |
— | ||
|
71875B
|
71875B
71875-06070-B0
Cover, Reclining Adjuster Inside, Rh
[02.2007 - 04.2010] NCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71875-06070-B0 |
— | ||
|
71875G
|
71875G
71875-06370
Cover, Reclining Adjuster Inside, Rh
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
71875-06370 |
— | ||
|
71876A
|
71876A
71876-06320-B0
Cover, Reclining Adjuster Inside, Lh
[02.2007 - 04.2010] NCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71876-06320-B0 |
— | ||
|
71876G
|
71876G
71876-06400
Cover, Reclining Adjuster Inside, Lh
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
71876-06400 |
— | ||
|
71910A
|
71910A
71910-0D550-B0
Headrest Assy, Front Seat
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1# |
71910-0D550-B0 |
— | ||
|
71931
|
71931
71930-02050-B1
Support, Front Seat Headrest
[08.2007 - 04.2010] NCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN) W(LOCK),DK.GRAY,TRIM1# |
71930-02050-B1 |
— | ||
|
71931
|
71931
71931-02030-B1
Support, Front Seat Headrest
[08.2007 - 04.2010] NCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN) W/O(LOCK),DK.GRAY,TRIM1# |
71931-02030-B1 |
— | ||
|
72138
|
72138
72138-0D050
Cover, Seat Track, Outer Lh
[03.2010 - 04.2010] NCP9#..MA,PH,VN |
72138-0D050 |
— | ||
|
72138
|
72138
72138-0D050-B0
Cover, Seat Track, Outer Lh
[02.2007 - 03.2010] NCP93..(15E,15G)..TH DK.GRAY,TRIM1#,4#; NCP93..(15G,E,G)..(IDN,MA,VN) DK.GRAY,TRIM4#; NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1# |
72138-0D050-B0 |
— | ||
| replacement | |||||
|
72138
|
72138
72138-0D050
Cover, Seat Track, Outer Lh
[02.2007 - 03.2010] NCP93..(15E,15G)..TH DK.GRAY,TRIM1#,4#; NCP93..(15G,E,G)..(IDN,MA,VN) DK.GRAY,TRIM4#; NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1# |
72138-0D050 |
— | ||
|
72148
|
72148
72148-0D030
Bracket, Front Inner Seat Track, Lower Rear Lh
[02.2007 - 04.2010] NCP9# |
72148-0D030 |
— | ||
|
72211C
|
72211C
72211-0D060
Handle, Seat Track Adjusting
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
72211-0D060 |
— | ||
|
72462
|
72462
72462-0D030-B0
Cover, Vertical Adjuster Rh
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1#; NCP93..(E,G)..VN DK.GRAY,TRIM4# |
72462-0D030-B0 |
— | ||
|
72494
|
72494
72494-0D030-B0
Handle, Vertical Adjusting, Rh
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1#; NCP93..(E,G)..VN DK.GRAY,TRIM4# |
72494-0D030-B0 |
— | ||
|
72526A
|
72526A
72526-0D100-B0
Handle, Reclining Adjuster Release, Lh
[02.2007 - 04.2010] NCP93..(15G,E,G)..(IDN,VN) DK.GRAY,TRIM4#; NCP93..15E..IDN;NCP93..15J,15S,LIMO DK.GRAY,TRIM1# |
72526-0D100-B0 |
— | ||
|
90167T0019
|
90167T0019
90167-T0019 SCREW PAN TAPPING |
90167-T0019 |
US $1.02 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.94 |
||
|
7270252030
|
7270252030
72702-52030 Bolt |
72702-52030 |
US $1.76 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9016850078
|
9016850078
90168-50078 SCREW TAPPING |
90168-50078 |
US $1.12 |
||
|
9046818008
|
9046818008
90468-18008 Clip (For Rear Seat Back) |
90468-18008 |
from US $0.80 |
||
| replacement | |||||
|
9046818008
|
9046818008
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.78 |
||
|
9167310820
|
9167310820
91673-10820 New Genuine Part |
91673-10820 |
US $1.28 |
||
