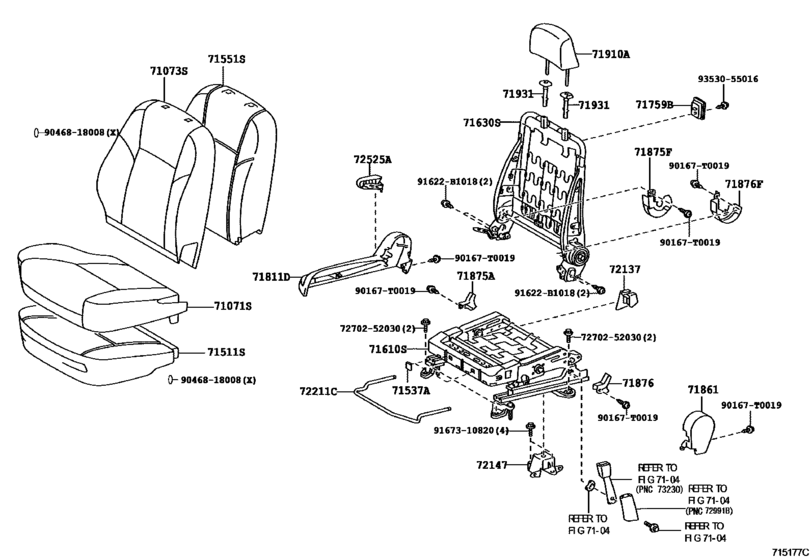

Front Seat & Seat Track ([02.2007 - ] PASSENGER SEAT (0702- )LHD) Diagram Toyota VIOS
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- NCP93
- grade
- LIMO
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- LIMO
- From
- 09.2007
- To
- 01.2014
- Vehicle Model
- LIMO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-0D550-B1
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.2007 - 04.2010] NCP93..LIMO..VN DARK GRAY,TRIM1# |
71071-0D550-B1 |
— | ||
|
71073S
|
71073S
71073-0D730-B0
Cover, Front Seat Back, Rh(For Separate Type)
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1# |
71073-0D730-B0 |
— | ||
|
71511S
|
71511S
71511-0D100
Pad, Front Seat Cushion, Rh(For Separate Type)
[09.2007 - 04.2010] NCP93..VN |
71511-0D100 |
— | ||
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[02.2007 - 04.2010] NCP9# |
71537-26010 |
US $0.96 |
||
|
71551S
|
71551S
71551-0D140
Pad, Front Seat Back, Rh(For Separate Type)
[09.2007 - 04.2010] NCP93..MTM..VN |
71551-0D140 |
— | ||
|
71610S
|
71610S
71610-0D060
Spring Assy, Front Seat Cushion, Rh(For Separate Type)
[09.2007 - 04.2010] NCP93..VN |
71610-0D060 |
— | ||
| replacements | |||||
|
71610S
|
71610S
71610-0D061
New Genuine Part
[09.2007 - 04.2010] NCP93..VN |
71610-0D061 |
— | ||
|
71610S
|
71610S
73214-0K010
Plate, Front Seat Belt Anchor
[09.2007 - 04.2010] NCP93..VN |
73214-0K010 |
— | ||
|
71630S
|
71630S
71630-0D180
Spring Assy, Front Seat Back, Rh(For Separate Type)
[09.2007 - 04.2010] NCP93..VN |
71630-0D180 |
— | ||
|
71759B
|
71759B
71759-13020-B0 Hook, Front Seat Back[02.2007 - 04.2010] NCP93..PH;NCP9#..13E,13J,15S,J,LIMO,S DK.GRAY,TRIM1# |
71759-13020-B0 |
US $12.67 |
||
|
71811D
|
71811D
71811-0D150-B0
Shield, Front Seat Cushion, Rh
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1#; NCP93..(E,G)..VN DK.GRAY,TRIM4# |
71811-0D150-B0 |
— | ||
|
71861
|
71861
71861-0D080-B0
Shield, Front Seat Cushion, Inner Rh
[02.2007 - 04.2010] NCP93..(15G,E,G)..(IDN,VN) DK.GRAY,TRIM4#; NCP93..15E..IDN;NCP93..15J,15S,LIMO DK.GRAY,TRIM1# |
71861-0D080-B0 |
— | ||
|
71875A
|
71875A
71875-06070-B0
Cover, Reclining Adjuster Inside, Rh
[02.2007 - 04.2010] NCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71875-06070-B0 |
— | ||
|
71875F
|
71875F
71875-06370
Cover, Reclining Adjuster Inside, Rh
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
71875-06370 |
— | ||
|
71876
|
71876
71876-06320-B0
Cover, Reclining Adjuster Inside, Lh
[02.2007 - 04.2010] NCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN) DK.GRAY,TRIM1#,4# |
71876-06320-B0 |
— | ||
|
71876F
|
71876F
71876-06400
Cover, Reclining Adjuster Inside, Lh
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
71876-06400 |
— | ||
|
71910A
|
71910A
71910-0D550-B0
Headrest Assy, Front Seat
[09.2007 - 04.2010] NCP93..LIMO..VN DK.GRAY,TRIM1# |
71910-0D550-B0 |
— | ||
|
71931
|
71931
71930-02050-B1
Support, Front Seat Headrest
[08.2007 - 04.2010] NCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN) W(LOCK),DK.GRAY,TRIM1# |
71930-02050-B1 |
— | ||
|
71931
|
71931
71931-02030-B1
Support, Front Seat Headrest
[08.2007 - 04.2010] NCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN) W/O(LOCK),DK.GRAY,TRIM1# |
71931-02030-B1 |
— | ||
|
72137
|
72137
72137-0D070
Cover, Seat Track, Outer Rh
[03.2010 - 04.2010] NCP9#..MA,PH,VN |
72137-0D070 |
— | ||
|
72137
|
72137
72137-0D070-B0
Cover, Seat Track, Outer Rh
[02.2007 - 03.2010] NCP93..(15E,15G)..TH DK.GRAY,TRIM1#,4#; NCP93..(15G,E,G)..(IDN,MA,VN) DK.GRAY,TRIM4#; NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1# |
72137-0D070-B0 |
— | ||
| replacement | |||||
|
72137
|
72137
72137-0D070
Cover, Seat Track, Outer Rh
[02.2007 - 03.2010] NCP93..(15E,15G)..TH DK.GRAY,TRIM1#,4#; NCP93..(15G,E,G)..(IDN,MA,VN) DK.GRAY,TRIM4#; NCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,15S,J,LIMO,S DK.GRAY,TRIM1# |
72137-0D070 |
— | ||
|
72147
|
72147
72147-0D030
Bracket, Front Inner Seat Track, Lower Rear Rh
[02.2007 - 04.2010] NCP9# |
72147-0D030 |
— | ||
|
72211C
|
72211C
72211-0D060
Handle, Seat Track Adjusting
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
72211-0D060 |
— | ||
|
72525A
|
72525A
72525-0D090-B0
Handle, Reclining Adjuster Release, Rh
[02.2007 - 04.2010] NCP93..(15G,E,G)..(IDN,VN) DK.GRAY,TRIM4#; NCP93..15E..IDN;NCP93..15J,15S,LIMO DK.GRAY,TRIM1# |
72525-0D090-B0 |
— | ||
|
90167T0019
|
90167T0019
90167-T0019 SCREW PAN TAPPING |
90167-T0019 |
US $1.02 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.94 |
||
|
7270252030
|
7270252030
72702-52030 Bolt |
72702-52030 |
US $1.76 |
||
|
9046818008
|
9046818008
90468-18008 Clip (For Rear Seat Back) |
90468-18008 |
from US $0.80 |
||
| replacement | |||||
|
9046818008
|
9046818008
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.78 |
||
|
9167310820
|
9167310820
91673-10820 New Genuine Part |
91673-10820 |
US $1.28 |
||
|
9353055016
|
9353055016
93530-55016 New Genuine Part |
93530-55016 |
US $0.61 |
||
