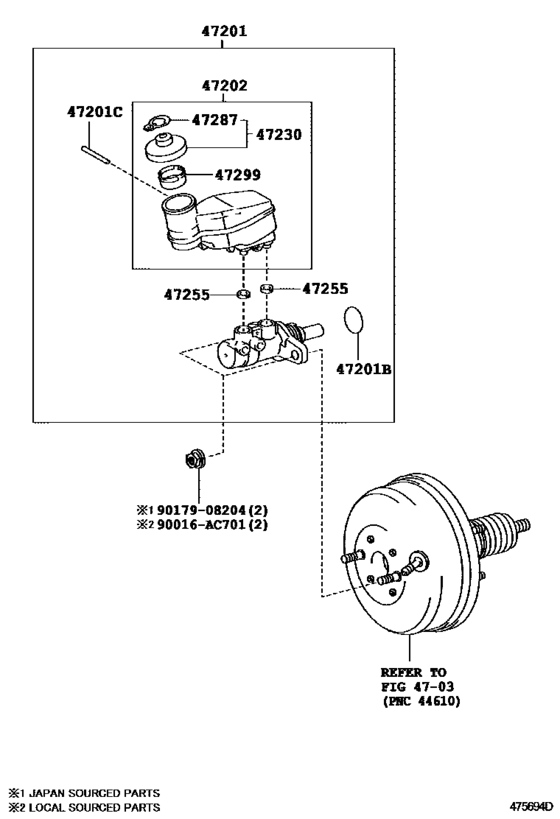

Brake Master Cylinder ([02.2007 - ] (0702- )RHD) Diagram Toyota VIOS
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- NCP93
- grade
- 15G
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- VIOS
- From
- 02.2007
- To
- 04.2013
- Vehicle Model
- VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-0D200
Cylinder Sub-Assy, Brake Master
[02.2007 - 03.2010] NCP93..MTM..15G..IDN |
47201-0D200 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-0D202
Cylinder Sub-Assy, Brake Master
[02.2007 - 03.2010] NCP93..MTM..15G..IDN |
47201-0D202 |
— | ||
|
47201
|
47201
47201-0D201
Cylinder Sub-Assy, Brake Master
[04.2012 - 07.2012] NCP93..MTM..15G..IDN |
47201-0D201 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-0D202
Cylinder Sub-Assy, Brake Master
[04.2012 - 07.2012] NCP93..MTM..15G..IDN |
47201-0D202 |
— | ||
|
47201
|
47201
47201-0D202
Cylinder Sub-Assy, Brake Master
[08.2012 - 04.2013] NCP93..MTM..15G..IDN |
47201-0D202 |
— | ||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[02.2007 - 03.2010] NCP93..IDN,TH |
90015-AH002 |
US $3.58 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[02.2007 - 03.2010] NCP93..IDN,TH |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-0D110
Reservoir Sub-Assy, Brake Master Cylinder
[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
47220-0D110 |
— | ||
|
47230
|
47230
47230-0K010
Cap Assy, Brake Master Cylinder Reservoir Filler
[02.2007 - 03.2010] NCP93..IDN,TH |
47230-0K010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-0D221 Cap Assy, Brake Master Cylinder Reservoir Filler[02.2007 - 03.2010] NCP93..IDN,TH |
47230-0D221 |
from US $8.46 |
||
|
47255
|
47255
90016-AT001 Grommet, Master Cylinder ReservoirMASTER CYLINDER RESERVOIR [04.2012 - 10.2013] NCP93..RHD..(15G,G,S) |
90016-AT001 |
US $4.80 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[02.2007 - 03.2010] NCP93..IDN,TH |
90029-48001 |
US $6.45 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[02.2007 - 03.2010] NCP93..IDN,TH |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-0D100
Strainer, Brake Master Cylinder Reservoir
[02.2007 - 03.2010] NCP93..IDN,TH |
47299-0D100 |
— | ||
|
90016AC701
|
90016AC701
90016-AC701
New Genuine Part
|
90016-AC701 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
