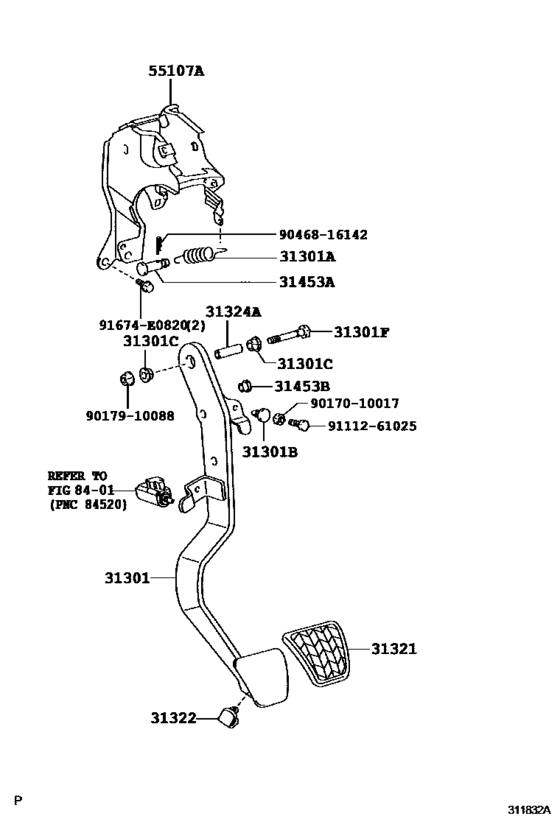

Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )RHD..MTM) Diagram Toyota VIOS
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- NCP93
- grade
- 15G
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- VIOS
- From
- 02.2007
- To
- 04.2013
- Vehicle Model
- VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-0D080
Pedal Sub-Assy, Clutch
[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
31301-0D080 |
— | ||
|
31301A
|
31301A
90507-14047 Spring(For Clutch Pedal)[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90507-14047 |
US $1.31 |
||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90541-06036 |
from US $0.90 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90386-13015 |
from US $0.64 |
||
|
31301F
|
31301F
90101-10015 Shaft, Clutch Pedal[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90101-10015 |
from US $1.07 |
||
| replacement | |||||
|
31301F
|
31301F
90101100151 Bolt, Hexagon[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90101100151 |
US $0.70 |
||
|
31321
|
31321
31321-0D040
Pad, Clutch Pedal
[11.2009 - 03.2010] NCP93..MTM..(IDN,TH) |
31321-0D040 |
— | ||
|
31321
|
31321
31321-52010 Pad, Brake Pedal[02.2007 - 10.2009] NCP93..RHD..MTM |
31321-52010 |
from US $1.99 |
||
|
31322
|
31322
31322-52010 Stopper, Clutch Pedal[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
31322-52010 |
US $5.39 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90387-10003 |
from US $3.94 |
||
|
31453A
|
31453A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) L=31.5 |
90249-08051 |
US $3.05 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
90386-08002 |
from US $3.22 |
||
|
55107A
|
55107A
55107-0D090
Support Sub-Assy, Clutch Pedal
[02.2007 - 04.2010] NCP93..RHD..MTM |
55107-0D090 |
— | ||
|
91674E0820
|
91674E0820
91674-E0820 New Genuine Part |
91674-E0820 |
US $1.02 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.79 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9111261025
|
9111261025
91112-61025 Bolt(For Clutch Pedal Stopper) |
91112-61025 |
from US $0.86 |
||
