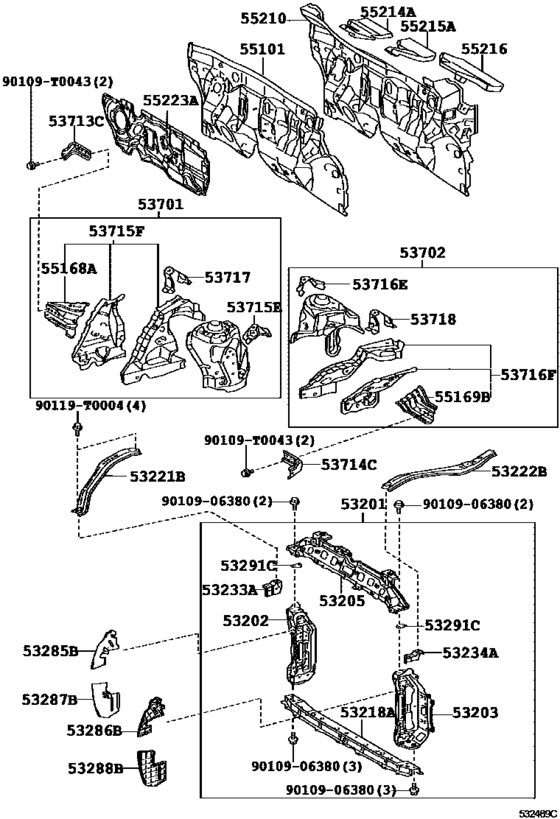

Front Fender Apron & Dash Panel ([02.2007 - ] (0702- )RHD) Diagram Toyota VIOS
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- NCP93
- grade
- 15G
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- VIOS
- From
- 02.2007
- To
- 04.2013
- Vehicle Model
- VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-0D130
Support Sub-Assy, Radiator
[02.2007 - 04.2010] NCP9# |
53201-0D130 |
— | ||
|
53202
|
53202
53202-0D070
Support Sub-Assy, Radiator, Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
53202-0D070 |
— | ||
|
53203
|
53203
53203-0D070
Support Sub-Assy, Radiator, Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
53203-0D070 |
— | ||
|
53205
|
53205
53205-0D050 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [02.2007 - 03.2010] NCP93..IDN,TH |
53205-0D050 |
US $158.94 |
||
|
53218A
|
53218A
53028-0D040
Support, Radiator, Lower
[02.2007 - 03.2010] NCP93..IDN,TH |
53028-0D040 |
— | ||
|
53221B
|
53221B
53221-0D010 Brace, Radiator Support Apron, RhRADIATOR SUPPORT APRON, RH [02.2007 - 04.2010] NCP9# |
53221-0D010 |
US $44.75 |
||
|
53222B
|
53222B
53222-0D010
Brace, Radiator Support Apron, Lh
[02.2007 - 04.2010] NCP9# |
53222-0D010 |
— | ||
|
53233A
|
53233A
53233-0D030
Bracket, Headlamp, No.1 Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
53233-0D030 |
— | ||
|
53234A
|
53234A
53234-0D030
Bracket, Headlamp, No.1 Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
53234-0D030 |
— | ||
|
53285B
|
53285B
53285-0D060
Seal, Radiator Side Air, No.1
[02.2007 - 01.2010] NCP9# |
53285-0D060 |
— | ||
| replacement | |||||
|
53285B
|
53285B
53285-0D061
Seal, Radiator Side Air, No.1
[02.2007 - 01.2010] NCP9# |
53285-0D061 |
— | ||
|
53285B
|
53285B
53285-0D061
Seal, Radiator Side Air, No.1
[02.2010 - 04.2010] NCP9# |
53285-0D061 |
— | ||
|
53286B
|
53286B
53286-0D060
Seal, Radiator Side Air, No.2
[02.2007 - 01.2010] NCP9# |
53286-0D060 |
— | ||
| replacement | |||||
|
53286B
|
53286B
53286-0D061
Seal, Radiator Side Air, No.2
[02.2007 - 01.2010] NCP9# |
53286-0D061 |
— | ||
|
53286B
|
53286B
53286-0D061
Seal, Radiator Side Air, No.2
[02.2010 - 04.2010] NCP9# |
53286-0D061 |
— | ||
|
53287B
|
53287B
53287-0D030
Extension, Radiator Support, Rh
[02.2007 - 01.2010] NCP9# |
53287-0D030 |
— | ||
| replacement | |||||
|
53287B
|
53287B
53287-0D031 Extension, Radiator Support, Rh[02.2007 - 01.2010] NCP9# |
53287-0D031 |
US $20.92 |
||
|
53287B
|
53287B
53287-0D031 Extension, Radiator Support, Rh[02.2010 - 04.2010] NCP9# |
53287-0D031 |
US $20.92 |
||
|
53288B
|
53288B
53288-0D030
Extension, Radiator Support, Lh
[02.2007 - 01.2010] NCP9# |
53288-0D030 |
— | ||
| replacement | |||||
|
53288B
|
53288B
53288-0D031
Extension, Radiator Support, Lh
[02.2007 - 01.2010] NCP9# |
53288-0D031 |
— | ||
|
53288B
|
53288B
53288-0D031
Extension, Radiator Support, Lh
[02.2010 - 04.2010] NCP9# |
53288-0D031 |
— | ||
|
53291C
|
53291C
53291-0D020
Seal, Radiator Support To Frame
[02.2007 - 03.2010] NCP93..IDN,TH |
53291-0D020 |
— | ||
|
53701
|
53701
53701-0D160 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [02.2007 - 04.2010] NCP9# |
53701-0D160 |
US $301.86 |
||
|
53702
|
53702
53702-0D150
Apron Sub-Assy, Front Fender, Lh
[02.2007 - 04.2010] NCP9# |
53702-0D150 |
— | ||
|
53713C
|
53713C
53713-0D030
Extension, Front Fender Apron, Front Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
53713-0D030 |
— | ||
|
53714C
|
53714C
53714-0D030
Extension, Front Fender Apron, Front Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
53714-0D030 |
— | ||
|
53715E
|
53715E
53715-0D020
Extension, Front Fender Apron, Rear Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
53715-0D020 |
— | ||
|
53715F
|
53715F
53707-0D020
Apron Sub-Assy, Fender Side, Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
53707-0D020 |
— | ||
|
53716E
|
53716E
53716-0D020
Extension, Front Fender Apron, Rear Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
53716-0D020 |
— | ||
|
53716F
|
53716F
53708-0D020
Apron Sub-Assy, Fender Side, Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
53708-0D020 |
— | ||
|
53717
|
53717
53717-0D030
Plate, Fender Apron, Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
53717-0D030 |
— | ||
|
53718
|
53718
53718-0D030
Plate, Fender Apron, Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
53718-0D030 |
— | ||
|
55101
|
55101
55101-0D230
Panel Sub-Assy, Dash
[02.2007 - 03.2010] NCP93..MTM..(IDN,TH) |
55101-0D230 |
— | ||
|
55168A
|
55168A
55168-0D050
Bracket, Front Fender Mounting, Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
55168-0D050 |
— | ||
|
55169B
|
55169B
55169-0D050
Bracket, Front Fender Mounting, Lh
[02.2007 - 03.2010] NCP93..IDN,TH |
55169-0D050 |
— | ||
|
55210
|
55210
55210-0D180
Insulator Assy, Dash Panel
[02.2007 - 03.2010] NCP93..IDN,TH |
55210-0D180 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-0D340
Insulator Assy, Dash Panel
[02.2007 - 03.2010] NCP93..IDN,TH |
55210-0D340 |
— | ||
|
55210
|
55210
55210-0D340
Insulator Assy, Dash Panel
[03.2010 - 08.2012] NCP93..RHD..(15E,15G) |
55210-0D340 |
— | ||
|
55210
|
55210
55210-0D440
Insulator Assy, Dash Panel
[08.2012 - 04.2013] NCP93..RHD..(15E,15G) |
55210-0D440 |
— | ||
|
55214A
|
55214A
55214-0D060
Pad, Dash Panel Insulator, No.2
[02.2007 - 03.2010] NCP93..IDN,TH |
55214-0D060 |
— | ||
|
55215A
|
55215A
55215-0D080
Pad, Dash Panel Insulator, No.3
[02.2007 - 03.2010] NCP93..IDN,TH |
55215-0D080 |
— | ||
|
55216
|
55216
55216-0D030
Pad, Dash Panel Insulator, No.4
[02.2007 - 03.2010] NCP93..IDN,TH |
55216-0D030 |
— | ||
|
55223A
|
55223A
55223-0D070
Insulator, Dash Panel, Outer
[02.2007 - 03.2010] NCP93..IDN,TH |
55223-0D070 |
— | ||
|
55223A
|
55223A
55223-0D280
Insulator, Dash Panel, Outer
[11.2012 - 10.2013] NCP93..RHD..(15E,15G,E,G,S) |
55223-0D280 |
— | ||
|
90109T0043
|
90109T0043
90109-T0043
New Genuine Part
|
90109-T0043 |
— | ||
|
90119T0004
|
90119T0004
90119-T0004 BOLTWWSH |
90119-T0004 |
US $0.21 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $1.08 |
||
