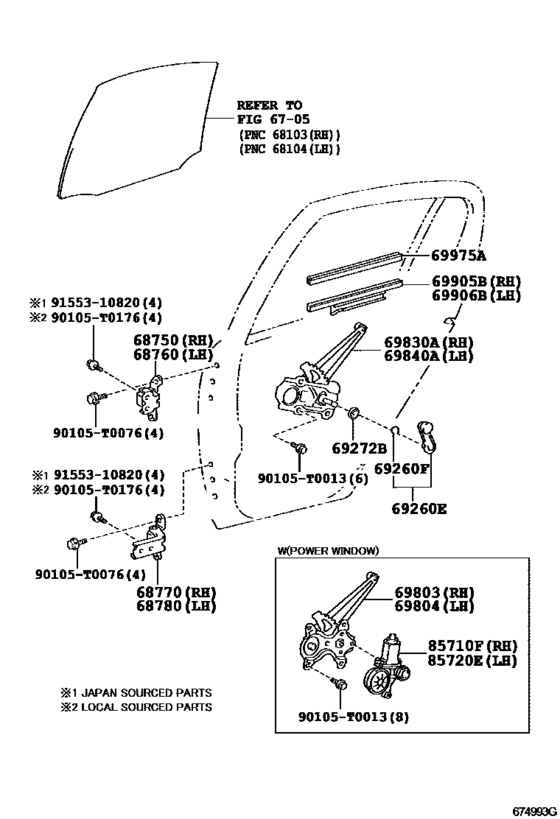

Rear Door Window Regulator & Hinge ([02.2007 - ] (0702- )) Diagram Toyota VIOS
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- NCP93
- grade
- 15G
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- VIOS
- From
- 02.2007
- To
- 04.2013
- Vehicle Model
- VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-0D030 Hinge Assy, Rear Door, Upper RhREAR DOOR, UPPER RH [02.2007 - 04.2010] NCP9# |
68750-0D030 |
US $32.90 |
||
|
68760
|
68760
68760-0D030 Hinge Assy, Rear Door, Upper LhREAR DOOR, UPPER LH [02.2007 - 04.2010] NCP9# |
68760-0D030 |
from US $32.21 |
||
|
68770
|
68770
68770-0D030 Hinge Assy, Rear Door, Lower RhREAR DOOR, LOWER RH [02.2007 - 04.2010] NCP9# |
68770-0D030 |
from US $32.41 |
||
|
68780
|
68780
68780-0D030 Hinge Assy, Rear Door, Lower LhREAR DOOR, LOWER LH [02.2007 - 04.2010] NCP9# |
68780-0D030 |
US $33.03 |
||
|
69803
|
69803
69803-0D070
Regulator Sub-Assy, Rear Door Window, Rh
[02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J,15S) |
69803-0D070 |
— | ||
|
69804
|
69804
69804-0D070
Regulator Sub-Assy, Rear Door Window, Lh
[02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J,15S) |
69804-0D070 |
— | ||
|
69905B
|
69905B
69905-0D080
Channel Sub-Assy, Rear Door Glass, Rh
[02.2007 - 03.2010] NCP93..IDN,TH |
69905-0D080 |
— | ||
|
69906B
|
69906B
69906-0D070 Channel Sub-Assy, Rear Door Glass, Lh[02.2007 - 03.2010] NCP93..IDN,TH |
69906-0D070 |
US $14.47 |
||
|
69975A
|
69975A
69975-0D050
Filler, Rear Door Glass Channel
[02.2007 - 03.2010] NCP93..IDN,TH |
69975-0D050 |
— | ||
|
85710F
|
85710F
85720-0K010 Motor Assy, Power Window Regulator, LhPOWER WINDOW REGULATOR, LH [02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J,15S) |
85720-0K010 |
US $224.97 |
||
|
85720E
|
85720E
85710-0K010 Motor Assy, Power Window Regulator, RhPOWER WINDOW REGULATOR, RH [02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J,15S) |
85710-0K010 |
US $234.35 |
||
|
90105T0013
|
90105T0013
90105-T0013
BOLT WASHER BASED H
|
90105-T0013 |
— | ||
|
90105T0076
|
90105T0076
90105-T0076
BOLT FLANGE
|
90105-T0076 |
— | ||
|
90105T0176
|
90105T0176
90105-T0176
New Genuine Part
|
90105-T0176 |
— | ||
|
9155310820
|
9155310820
91553-10820 New Genuine Part |
91553-10820 |
US $1.43 |
