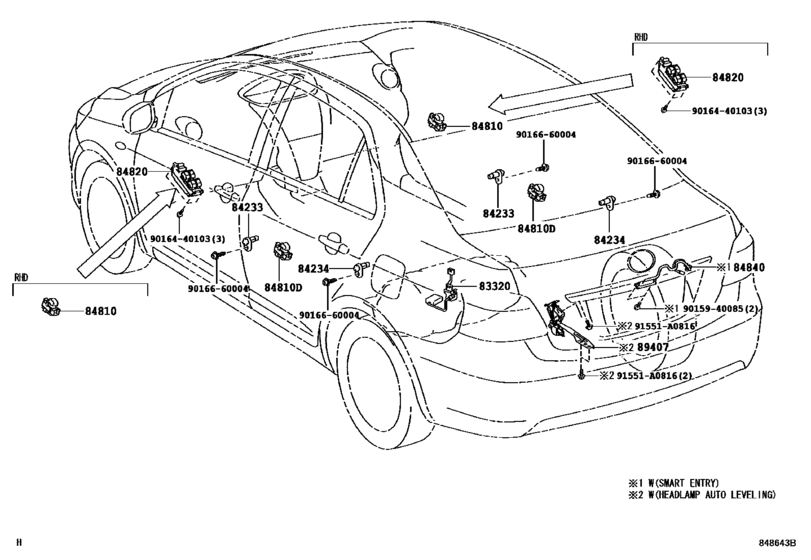

Switch & Relay & Computer ([02.2007 - ] DOOR,ROOF,FLOOR,SEAT & LAGGAGE (0702- )) Diagram Toyota VIOS
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- NCP93
- grade
- 15G
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- Model
- VIOS
- From
- 02.2007
- To
- 04.2013
- Vehicle Model
- VIOS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D060
Gage Assy, Fuel Sender
[02.2007 - 04.2010] NCP93..IDN,TH,VN |
83320-0D060 |
— | ||
|
84233
|
84233
84231-02070 Switch Assy, Courtesy Lamp (For Front Door)[02.2007 - 03.2010] NCP93..IDN,TH |
84231-02070 |
US $13.83 |
||
|
84234
|
84234
84231-02070 Switch Assy, Courtesy Lamp (For Front Door)[02.2007 - 03.2010] NCP93..IDN,TH |
84231-02070 |
US $13.83 |
||
|
84810
|
84810
84810-06050 Switch Assy, Power Window Regulator[02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J,15S) |
84810-06050 |
US $44.05 |
||
|
84810D
|
84810D
84810-06050 Switch Assy, Power Window Regulator[02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J,15S) |
84810-06050 |
US $44.05 |
||
|
84820
|
84820
84820-0D130
Master Switch Assy, Power Window Regulator
[02.2007 - 03.2010] NCP93..RHD..(15E,15G,15J) |
84820-0D130 |
— | ||
|
89407
|
89407
89407-52080 Sensor Sub-Assy, Height Control, Rear Rh[02.2007 - 03.2010] NCP93..15S;NCP93..15G..IDN |
89407-52080 |
US $352.35 |
||
|
91551A0816
|
91551A0816
91551-A0816 Bolt |
91551-A0816 |
US $1.43 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.72 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9016660004
|
9016660004
90166-60004 New Genuine Part |
90166-60004 |
US $1.08 |
