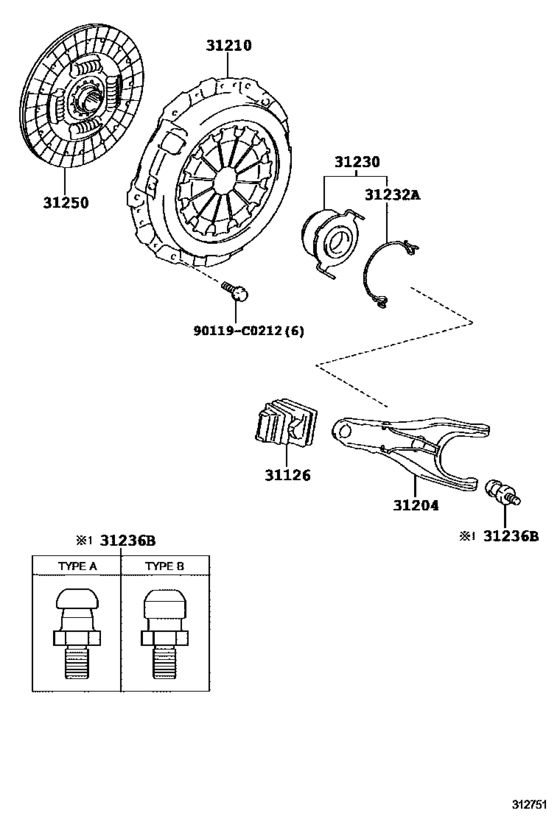

Clutch & Release Fork ([11.2013 - ] (1311- )5F) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0D040
Boot, Clutch Release Fork
[01.2014 - 09.2016] NSP15#..5F |
31126-0D040 |
— | ||
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[11.2013 - 01.2014] NSP15#..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-0D030
Fork Sub-Assy, Clutch Release
[01.2014 - 09.2016] NSP15#..5F PNC 31236B=TYPE B |
31204-0D030 |
— | ||
|
31204
|
31204
31204-52010 Fork Sub-Assy, Clutch Release[11.2013 - 01.2014] NSP15#..5F PNC 31236B=TYPE A |
31204-52010 |
from US $21.58 |
||
|
31210
|
31210
31210-0D170
Cover Assy, Clutch
[11.2013 - 09.2016] NSP151..5F |
31210-0D170 |
— | ||
|
31230
|
31230
31230-0D010
Bearing Assy, Clutch Release
[11.2013 - 12.2015] NSP15#..5F |
31230-0D010 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-0D012
Bearing Assy, Clutch Release
[11.2013 - 12.2015] NSP15#..5F |
31230-0D012 |
— | ||
|
31230
|
31230
31230-0D011
Bearing Assy, Clutch Release
[12.2015 - 09.2016] NSP15#..5F |
31230-0D011 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-0D012
Bearing Assy, Clutch Release
[12.2015 - 09.2016] NSP15#..5F |
31230-0D012 |
— | ||
|
31230
|
31230
31230-0D012
Bearing Assy, Clutch Release
[04.2017 -] NSP15#..5F |
31230-0D012 |
— | ||
|
31232A
|
31232A
31232-0D010
Clip, Release Bearing Hub
[12.2015 - 09.2016] NSP15#..5F |
31232-0D010 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[11.2013 - 12.2015] NSP15#..5F |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-0D010
Support, Release Fork
[01.2014 - 09.2016] NSP15#..5F TYPE B:REFER ILLUST. |
31236-0D010 |
— | ||
|
31236B
|
31236B
31236-12020 Support, Release Fork[11.2013 - 01.2014] NSP15#..5F TYPE A:REFER ILLUST. |
31236-12020 |
from US $8.16 |
||
|
31250
|
31250
31250-0D210
Disc Assy, Clutch
[11.2013 - 09.2016] NSP151..5F |
31250-0D210 |
— | ||
|
90119C0212
|
90119C0212
90119-C0212
Bolt (For Transmission Control Cable Bracket)
|
90119-C0212 |
— | ||
