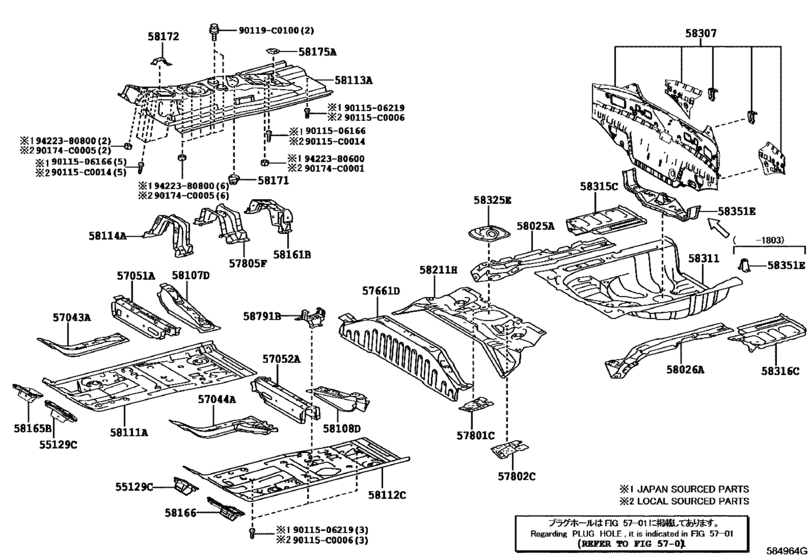

Floor Pan & Lower Back Panel ([11.2013 - ] (1311- )4D) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-0D110
Cover, Dash Panel Hole
[11.2013 - 09.2016] NSP15# RH |
55129-0D110 |
— | ||
|
55129C
|
55129C
55139-0D030
Cover, Dash Panel Hole
[11.2013 - 09.2016] NSP15# LH |
55139-0D030 |
— | ||
|
57043A
|
57043A
57145-0D051
Reinforcement, Front Side Member To Floor Pan
[11.2013 - 09.2016] NSP15# |
57145-0D051 |
— | ||
|
57044A
|
57044A
57044-0D050
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[11.2013 - 09.2016] NSP15# |
57044-0D050 |
— | ||
|
57051A
|
57051A
57051-0D030
Member Sub-Assy, Front Floor Cross, Rh
[11.2013 - 09.2016] NSP15# |
57051-0D030 |
— | ||
|
57052A
|
57052A
57052-0D030
Member Sub-Assy, Front Floor Cross, Lh
[11.2013 - 09.2016] NSP15# |
57052-0D030 |
— | ||
|
57661D
|
57661D
57661-0D070
Member, Rear Floor Cross, Front
[11.2013 - 09.2016] NSP15# |
57661-0D070 |
— | ||
|
57801C
|
57801C
57801-0D090
Reinforcement Sub-Assy, Belt Anchor, No.1 Rh
[11.2013 - 09.2016] NSP15# |
57801-0D090 |
— | ||
|
57802C
|
57802C
57802-0D080
Reinforcement Sub-Assy, Belt Anchor, No.1 Lh
[11.2013 - 09.2016] NSP15# |
57802-0D080 |
— | ||
|
57805F
|
57805F
57805-0D070
Reinforcement Sub-Assy, Belt Anchor, Rh
[11.2013 - 09.2016] NSP15# |
57805-0D070 |
— | ||
|
58025A
|
58025A
58025-0D030
Panel Sub-Assy, Floor Side Rail, Fr Rh
[11.2013 - 09.2016] NSP15# |
58025-0D030 |
— | ||
|
58026A
|
58026A
58026-0D030
Panel Sub-Assy, Floor Side Rail, Fr Lh
[11.2013 - 09.2016] NSP15# |
58026-0D030 |
— | ||
|
58107D
|
58107D
58107-0D010
Reinforce Sub-Assy, Front Cross To Front Panel, Rh
[11.2013 - 09.2016] NSP15# |
58107-0D010 |
— | ||
|
58108D
|
58108D
58108-0D010
Reinforce Sub-Assy, Front Cross To Front Panel, Lh
[11.2013 - 09.2016] NSP15# |
58108-0D010 |
— | ||
|
58111A
|
58111A
58111-52170 Pan, Front Floor, Rh[11.2013 - 09.2016] NSP15# |
58111-52170 |
US $174.72 |
||
|
58112C
|
58112C
58112-52904 Pan, Front Floor, Lh[11.2013 - 09.2016] NSP15# |
58112-52904 |
US $158.70 |
||
|
58113A
|
58113A
58113-0D910
Panel, Front Floor, Center
[11.2013 - 09.2016] NSP15# |
58113-0D910 |
— | ||
|
58114A
|
58114A
58114-0D130
Reinforcement, Front Floor Panel
[11.2013 - 09.2016] NSP15# |
58114-0D130 |
— | ||
|
58161B
|
58161B
58161-0D090
Reinforcement, Belt Anchor To Floor Pan
[11.2013 - 09.2016] NSP15# |
58161-0D090 |
— | ||
|
58165B
|
58165B
58165-0D010
Cover, Front Floor, Rh
[11.2013 - 09.2016] NSP15# |
58165-0D010 |
— | ||
|
58166
|
58166
58166-0D010
Cover, Front Floor, Lh
[11.2013 - 09.2016] NSP15# |
58166-0D010 |
— | ||
|
58171
|
58171
58171-0D040
Reinforcement, Parking Brake Base
[11.2013 - 09.2016] NSP15# |
58171-0D040 |
— | ||
|
58172
|
58172
58172-0D020
Bracket, Computer Mounting, No.3
[11.2013 - 09.2016] NSP15# |
58172-0D020 |
— | ||
|
58175A
|
58175A
58175-0D010
Reinforcement, Parking Brake Base, No.1
[11.2013 - 09.2016] NSP15# |
58175-0D010 |
— | ||
|
58211H
|
58211H
58211-0D100
Pan, Center Floor
[11.2013 - 09.2016] NSP15# |
58211-0D100 |
— | ||
|
58307
|
58307
58307-0D170
Panel Sub-Assy, Body Lower Back
[11.2013 - 09.2016] NSP15# |
58307-0D170 |
— | ||
|
58311
|
58311
58311-0D090
Pan, Rear Floor
[11.2013 - 12.2015] NSP15# |
58311-0D090 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-0D092
Pan, Rear Floor
[11.2013 - 12.2015] NSP15# |
58311-0D092 |
— | ||
|
58311
|
58311
58311-0D091
Pan, Rear Floor
[12.2015 - 01.2016] NSP15# |
58311-0D091 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-0D092
Pan, Rear Floor
[12.2015 - 01.2016] NSP15# |
58311-0D092 |
— | ||
|
58311
|
58311
58311-0D092
Pan, Rear Floor
[02.2016 - 09.2016] NSP15# |
58311-0D092 |
— | ||
|
58315C
|
58315C
58315-52170 Extension, Rear Floor Side Panel, Rh[11.2013 - 09.2016] NSP15# |
58315-52170 |
US $44.54 |
||
|
58316C
|
58316C
58316-0D220
Extension, Rear Floor Side Panel, Lh
[02.2016 - 09.2016] NSP15# |
58316-0D220 |
— | ||
|
58316C
|
58316C
58316-52190 Extension, Rear Floor Side Panel, Lh[11.2013 - 01.2016] NSP15# |
58316-52190 |
US $44.54 |
||
|
58325E
|
58325E
58325-0D080
Cover, Rear Floor Service Hole
[11.2013 - 09.2016] NSP15# |
58325-0D080 |
— | ||
|
58351E
|
58351E
58351-0D070
Bracket, Spare Wheel Clamp
[11.2013 - 09.2016] NSP15# |
58351-0D070 |
— | ||
|
58791B
|
58791B
58791-0D070
Carrier, Jack
[11.2013 - 09.2016] NSP15# |
58791-0D070 |
— | ||
|
90115C0006
|
90115C0006
90115-C0006
Bolt, Weld(For Front Floor Pan, Lh)
|
90115-C0006 |
— | ||
|
90115C0014
|
90115C0014
90115-C0014
Bolt, Weld(For Front Floor Pan)
|
90115-C0014 |
— | ||
|
90119C0100
|
90119C0100
90119-C0100
New Genuine Part
|
90119-C0100 |
— | ||
|
90174C0001
|
90174C0001
90174-C0001
New Genuine Part
|
90174-C0001 |
— | ||
|
90174C0005
|
90174C0005
90174-C0005
New Genuine Part
|
90174-C0005 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9422380600
|
9422380600
94223-80600 Retainer, Rear Door Open Switch Set, Rh |
94223-80600 |
US $1.12 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
