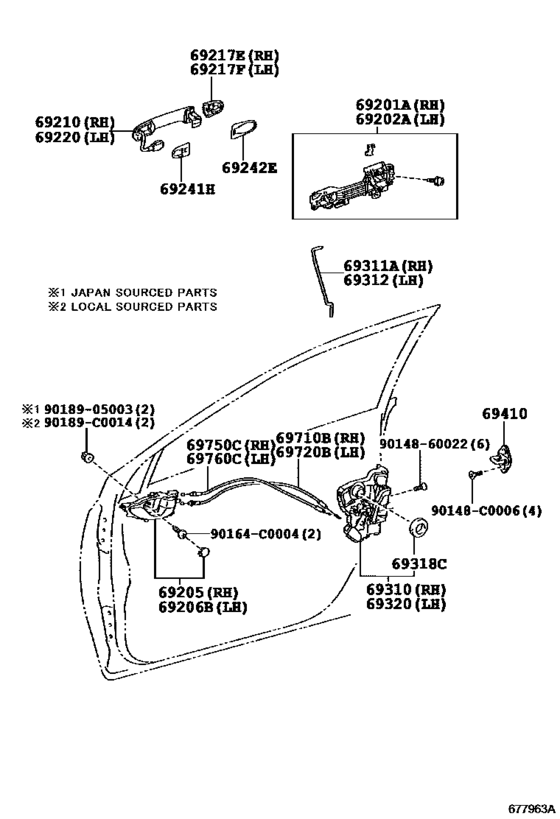

Front Door Lock & Handle ([11.2013 - ] (1311- )) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69201A
|
69201A
69201-02100
Frame Sub-Assy, Front Door Outside Handle, Rh
[02.2014 - 09.2016] NSP150;NSP151..MID |
69201-02100 |
— | ||
|
69201A
|
69201A
69201-0D120
Frame Sub-Assy, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID |
69201-0D120 |
— | ||
|
69202A
|
69202A
69202-02070
Frame Sub-Assy, Front Door Outside Handle, Lh
[02.2014 - 09.2016] NSP15#..LO,MID |
69202-02070 |
— | ||
|
69202A
|
69202A
69202-0D080
Frame Sub-Assy, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID |
69202-0D080 |
— | ||
|
69205
|
69205
69205-0D310-A0
Handle Sub-Assy, Front Door Inside, Rh
[11.2013 - 09.2016] NSP15#..LO,MID IVORY,TRIM0# |
69205-0D310-A0 |
— | ||
|
69205
|
69205
69205-0D310-C0
Handle Sub-Assy, Front Door Inside, Rh
[11.2013 - 09.2016] NSP15#..LO,MID BLACK,TRIM2# |
69205-0D310-C0 |
— | ||
|
69205
|
69205
69205-0D340-C0
Handle Sub-Assy, Front Door Inside, Rh
[10.2014 - 10.2015] NSP151..MID TWO-TONE PACKAGE,BLACK,TRIM2# |
69205-0D340-C0 |
— | ||
|
69206B
|
69206B
69206-0D310-A0
Handle Sub-Assy, Front Door Inside, Lh
[11.2013 - 09.2016] NSP15#..LO,MID IVORY,TRIM0# |
69206-0D310-A0 |
— | ||
|
69206B
|
69206B
69206-0D310-C0
Handle Sub-Assy, Front Door Inside, Lh
[11.2013 - 09.2016] NSP15#..LO,MID BLACK,TRIM2# |
69206-0D310-C0 |
— | ||
|
69206B
|
69206B
69206-0D340-C0
Handle Sub-Assy, Front Door Inside, Lh
[10.2014 - 10.2015] NSP151..MID TWO-TONE PACKAGE,BLACK,TRIM2# |
69206-0D340-C0 |
— | ||
|
69210
|
69210
69211-02190-A1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID SUPER WHITE 2,040 |
69211-02190-A1 |
— | ||
|
69210
|
69210
69211-02190-B1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID SILVER ME.,1F7 |
69211-02190-B1 |
— | ||
|
69210
|
69210
69211-02190-C0
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID BLACK MC.,209 |
69211-02190-C0 |
— | ||
|
69210
|
69210
69211-02190-D1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID RED M.M.,3R3 |
69211-02190-D1 |
— | ||
|
69210
|
69210
69211-02190-E4
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID ORANGE ME.,4R8 |
69211-02190-E4 |
— | ||
|
69210
|
69210
69211-02190-J7
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID BLUE ME.,8V6 |
69211-02190-J7 |
— | ||
|
69210
|
69210
69211-02190-K1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69211-02190-K1 |
— | ||
|
69210
|
69210
69211-0D160-A0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID SUPER WHITE 2,040 |
69211-0D160-A0 |
— | ||
|
69210
|
69210
69211-0D160-B0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID SILVER ME.,1F7 |
69211-0D160-B0 |
— | ||
|
69210
|
69210
69211-0D160-C0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID BLACK MC.,209 |
69211-0D160-C0 |
— | ||
|
69210
|
69210
69211-0D160-D1
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID RED M.M.,3R3 |
69211-0D160-D1 |
— | ||
|
69210
|
69210
69211-0D160-E0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID ORANGE ME.,4R8 |
69211-0D160-E0 |
— | ||
|
69210
|
69210
69211-0D160-E1
Handle Assy, Front Door, Outside Rh
[09.2016 -] NSP15#..LO,MID SILKY BEIGE ME.,4W1 |
69211-0D160-E1 |
— | ||
|
69210
|
69210
69211-0D160-J0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID BLUE ME.,8V6 |
69211-0D160-J0 |
— | ||
|
69210
|
69210
69211-0D160-K0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69211-0D160-K0 |
— | ||
|
69217E
|
69217E
69217-02140-A0
Cover, Back Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID SUPER WHITE 2,040 |
69217-02140-A0 |
— | ||
|
69217E
|
69217E
69217-02140-B0
Cover, Back Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID SILVER ME.,1F7 |
69217-02140-B0 |
— | ||
|
69217E
|
69217E
69217-02140-C0
Cover, Back Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID BLACK MC.,209 |
69217-02140-C0 |
— | ||
|
69217E
|
69217E
69217-02140-D0
Cover, Back Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID RED M.M.,3R3 |
69217-02140-D0 |
— | ||
|
69217E
|
69217E
69217-02140-E4
Cover, Front Door Outside Handle, Rh
[02.2014 - 09.2016] NSP15#..LO,MID ORANGE ME.,4R8 |
69217-02140-E4 |
— | ||
|
69217E
|
69217E
69217-02140-J6
Cover, Front Door Outside Handle, Rh
[02.2014 - 09.2016] NSP15#..LO,MID BLUE ME.,8V6 |
69217-02140-J6 |
— | ||
|
69217E
|
69217E
69217-02140-K1
Cover, Front Door Outside Handle, Rh
[02.2014 - 09.2016] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69217-02140-K1 |
— | ||
|
69217E
|
69217E
69217-0D150-A0
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID SUPER WHITE 2,040 |
69217-0D150-A0 |
— | ||
|
69217E
|
69217E
69217-0D150-B0
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID SILVER ME.,1F7 |
69217-0D150-B0 |
— | ||
|
69217E
|
69217E
69217-0D150-C0
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID BLACK MC.,209 |
69217-0D150-C0 |
— | ||
|
69217E
|
69217E
69217-0D150-D1
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID RED M.M.,3R3 |
69217-0D150-D1 |
— | ||
|
69217E
|
69217E
69217-0D150-E0
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID ORANGE ME.,4R8 |
69217-0D150-E0 |
— | ||
|
69217E
|
69217E
69217-0D150-E1
Cover, Front Door Outside Handle, Rh
[09.2016 -] NSP15#..LO,MID SILKY BEIGE ME.,4W1 |
69217-0D150-E1 |
— | ||
|
69217E
|
69217E
69217-0D150-J0
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID BLUE ME.,8V6 |
69217-0D150-J0 |
— | ||
|
69217E
|
69217E
69217-0D150-K0
Cover, Front Door Outside Handle, Rh
[11.2013 - 02.2014] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69217-0D150-K0 |
— | ||
|
69217F
|
69217F
69217-02170-A1
Cover, Front Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID SUPER WHITE 2,040 |
69217-02170-A1 |
— | ||
|
69217F
|
69217F
69217-02170-B1
Cover, Front Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID SILVER ME.,1F7 |
69217-02170-B1 |
— | ||
|
69217F
|
69217F
69217-02170-C0
Cover, Front Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID BLACK MC.,209 |
69217-02170-C0 |
— | ||
|
69217F
|
69217F
69217-02170-D1
Cover, Front Door Outside Handle
[02.2014 - 09.2016] NSP15#..LO,MID RED M.M.,3R3 |
69217-02170-D1 |
— | ||
|
69217F
|
69217F
69217-02170-E4
Cover, Front Door Outside Handle, Lh
[02.2014 - 09.2016] NSP15#..LO,MID ORANGE ME.,4R8 |
69217-02170-E4 |
— | ||
|
69217F
|
69217F
69217-02170-J7
Cover, Front Door Outside Handle, Lh
[02.2014 - 09.2016] NSP15#..LO,MID BLUE ME.,8V6 |
69217-02170-J7 |
— | ||
|
69217F
|
69217F
69217-02170-K1
Cover, Front Door Outside Handle, Lh
[02.2014 - 09.2016] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69217-02170-K1 |
— | ||
|
69217F
|
69217F
69217-0D140-A0
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID SUPER WHITE 2,040 |
69217-0D140-A0 |
— | ||
|
69217F
|
69217F
69217-0D140-B0
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID SILVER ME.,1F7 |
69217-0D140-B0 |
— | ||
|
69217F
|
69217F
69217-0D140-C0
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID BLACK MC.,209 |
69217-0D140-C0 |
— | ||
|
69217F
|
69217F
69217-0D140-D1
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID RED M.M.,3R3 |
69217-0D140-D1 |
— | ||
|
69217F
|
69217F
69217-0D140-E0
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID ORANGE ME.,4R8 |
69217-0D140-E0 |
— | ||
|
69217F
|
69217F
69217-0D140-E1
Cover, Front Door Outside Handle, Lh
[09.2016 -] NSP15#..LO,MID SILKY BEIGE ME.,4W1 |
69217-0D140-E1 |
— | ||
|
69217F
|
69217F
69217-0D140-J0
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID BLUE ME.,8V6 |
69217-0D140-J0 |
— | ||
|
69217F
|
69217F
69217-0D140-K0
Cover, Front Door Outside Handle, Lh
[11.2013 - 02.2014] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69217-0D140-K0 |
— | ||
|
69220
|
69220
69211-02190-A1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID SUPER WHITE 2,040 |
69211-02190-A1 |
— | ||
|
69220
|
69220
69211-02190-B1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID SILVER ME.,1F7 |
69211-02190-B1 |
— | ||
|
69220
|
69220
69211-02190-C0
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID BLACK MC.,209 |
69211-02190-C0 |
— | ||
|
69220
|
69220
69211-02190-D1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID RED M.M.,3R3 |
69211-02190-D1 |
— | ||
|
69220
|
69220
69211-02190-E4
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID ORANGE ME.,4R8 |
69211-02190-E4 |
— | ||
|
69220
|
69220
69211-02190-J7
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID BLUE ME.,8V6 |
69211-02190-J7 |
— | ||
|
69220
|
69220
69211-02190-K1
Handle Assy, Front Door, Outside Rh
[02.2014 - 09.2016] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69211-02190-K1 |
— | ||
|
69220
|
69220
69211-0D160-A0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID SUPER WHITE 2,040 |
69211-0D160-A0 |
— | ||
|
69220
|
69220
69211-0D160-B0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID SILVER ME.,1F7 |
69211-0D160-B0 |
— | ||
|
69220
|
69220
69211-0D160-C0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID BLACK MC.,209 |
69211-0D160-C0 |
— | ||
|
69220
|
69220
69211-0D160-D1
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID RED M.M.,3R3 |
69211-0D160-D1 |
— | ||
|
69220
|
69220
69211-0D160-E0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID ORANGE ME.,4R8 |
69211-0D160-E0 |
— | ||
|
69220
|
69220
69211-0D160-E1
Handle Assy, Front Door, Outside Rh
[09.2016 -] NSP15#..LO,MID SILKY BEIGE ME.,4W1 |
69211-0D160-E1 |
— | ||
|
69220
|
69220
69211-0D160-J0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID BLUE ME.,8V6 |
69211-0D160-J0 |
— | ||
|
69220
|
69220
69211-0D160-K0
Handle Assy, Front Door, Outside Rh
[11.2013 - 02.2014] NSP15#..LO,MID GLITTER VIOLET M.M.,9AP |
69211-0D160-K0 |
— | ||
|
69241H
|
69241H
69241-02070
Pad, Front Door Outside Handle, Rh
[02.2014 - 09.2016] NSP150;NSP151..MID |
69241-02070 |
— | ||
|
69241H
|
69241H
69241-0D070
Pad, Front Door Outside Handle, Front
[11.2013 - 02.2014] NSP15#..LO,MID |
69241-0D070 |
— | ||
|
69242E
|
69242E
69242-02070
Pad, Front Door Outside Handle, Lh
[02.2014 - 09.2016] NSP150;NSP151..MID |
69242-02070 |
— | ||
|
69242E
|
69242E
69242-0D030
Pad, Front Door Outside Handle, Rear
[11.2013 - 02.2014] NSP15#..LO,MID |
69242-0D030 |
— | ||
|
69310
|
69310
69030-0D440
Lock Assy, Front Door, Rh
[11.2013 - 09.2016] NSP15#..LO,MID |
69030-0D440 |
— | ||
|
69311A
|
69311A
69311-0D140
Rod, Front Door Lock Open, Rh
[11.2013 - 09.2016] NSP15# |
69311-0D140 |
— | ||
|
69312
|
69312
69312-0D140
Rod, Front Door Lock Open, Lh
[11.2013 - 09.2016] NSP15# |
69312-0D140 |
— | ||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[11.2013 - 09.2016] NSP15# |
69318-51010 |
from US $1.64 |
||
|
69320
|
69320
69040-0D440
Lock Assy, Front Door, Lh
[11.2013 - 09.2016] NSP15# |
69040-0D440 |
— | ||
|
69410
|
69410
69410-0D020
Plate Assy, Front Door Lock Striker
[11.2013 - 09.2016] NSP15# |
69410-0D020 |
— | ||
|
69710B
|
69710B
69710-0D200
Cable Assy, Front Door Lock Remote Control, Rh
[11.2013 - 09.2016] NSP15# |
69710-0D200 |
— | ||
|
69720B
|
69720B
69710-0D200
Cable Assy, Front Door Lock Remote Control, Rh
[11.2013 - 09.2016] NSP15# |
69710-0D200 |
— | ||
|
69750C
|
69750C
69750-0D130
Cable Assy, Front Door Inside Locking, Rh
[11.2013 - 09.2016] NSP15# |
69750-0D130 |
— | ||
|
69760C
|
69760C
69750-0D130
Cable Assy, Front Door Inside Locking, Rh
[11.2013 - 09.2016] NSP15# |
69750-0D130 |
— | ||
|
90148C0006
|
90148C0006
90148-C0006
New Genuine Part
|
90148-C0006 |
— | ||
|
90164C0004
|
90164C0004
90164-C0004
New Genuine Part
|
90164-C0004 |
— | ||
|
90189C0014
|
90189C0014
90189-C0014
New Genuine Part
|
90189-C0014 |
— | ||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
