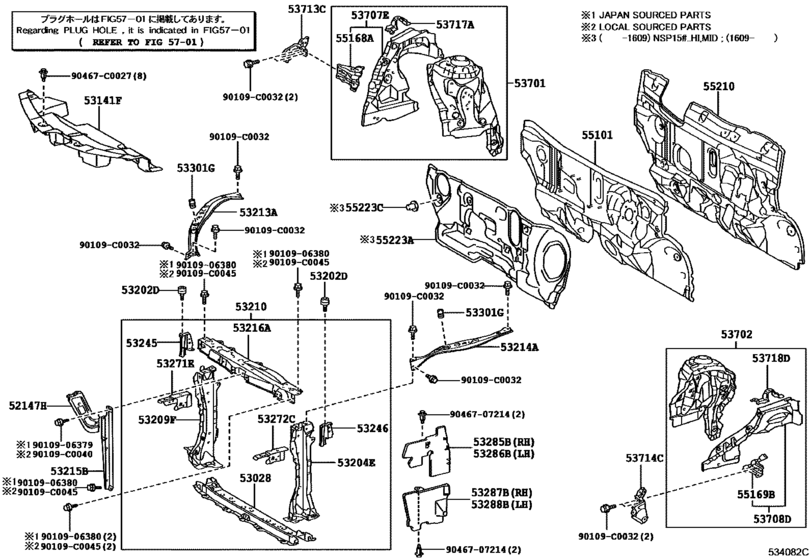

Front Fender Apron & Dash Panel ([11.2013 - ] (1311- )) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52147H
|
52147H
52147-0D110
Bracket, Front Bumper Mounting
[11.2013 - 09.2016] NSP15# |
52147-0D110 |
— | ||
|
53028
|
53028
53028-0D060
Support Sub-Assy, Radiator, Lower
[11.2013 - 09.2016] NSP15# |
53028-0D060 |
— | ||
|
53141F
|
53141F
53141-0D030
Cover, Radiator
[11.2013 - 09.2016] NSP15# |
53141-0D030 |
— | ||
|
53202D
|
53202D
53119-12150 Cover, Front Bumper Side(For Gllile Guard)[11.2013 - 09.2016] NSP15# |
53119-12150 |
from US $7.04 |
||
|
53204E
|
53204E
53204-0D010
Brace Sub-Assy, Radiator Support To Cross Member, Lh
[11.2013 - 09.2016] NSP15# |
53204-0D010 |
— | ||
|
53209F
|
53209F
53209-0D010
Brace Sub-Assy, Radiator Support To Cross Member, Rh
[11.2013 - 09.2016] NSP15# |
53209-0D010 |
— | ||
|
53210
|
53210
53210-0D915
Support Assy, Radiator
[11.2013 - 09.2016] NSP15# |
53210-0D915 |
— | ||
|
53213A
|
53213A
53213-0D100
Support, Radiator, Upper Rh
[11.2013 - 09.2016] NSP15# |
53213-0D100 |
— | ||
|
53214A
|
53214A
53214-0D110
Support, Radiator, Upper Lh
[11.2013 - 09.2016] NSP15# |
53214-0D110 |
— | ||
|
53215B
|
53215B
53215-0D111
Support, Hood Lock
[11.2013 - 09.2016] NSP15# |
53215-0D111 |
— | ||
|
53216A
|
53216A
53216-0D080
Support, Radiator, Upper
[11.2013 - 09.2016] NSP15# |
53216-0D080 |
— | ||
|
53245
|
53245
53245-0D020
Bracket, Headlamp, Rh
[11.2013 - 09.2016] NSP15# |
53245-0D020 |
— | ||
|
53246
|
53246
53246-0D020
Bracket, Headlamp, Lh
[11.2013 - 09.2016] NSP15# |
53246-0D020 |
— | ||
|
53271E
|
53271E
53271-0D020
Bracket, Headlamp Mounting, Rh
[11.2013 - 09.2016] NSP15# |
53271-0D020 |
— | ||
|
53272C
|
53272C
53272-0D020
Bracket, Headlamp Mounting, Lh
[11.2013 - 09.2016] NSP15# |
53272-0D020 |
— | ||
|
53285B
|
53285B
53285-0D160
Seal, Radiator Side Air, No.1
[11.2013 - 09.2016] NSP15# |
53285-0D160 |
— | ||
|
53285B
|
53285B
53285-0D341
Seal, Radiator Side Air, No.1
[09.2016 -] NSP15# |
53285-0D341 |
— | ||
|
53286B
|
53286B
53286-0D150
Seal, Radiator Side Air, No.2
[11.2013 - 09.2016] NSP15# |
53286-0D150 |
— | ||
|
53286B
|
53286B
53286-0D341
Seal, Radiator Side Air, No.2
[09.2016 -] NSP15# |
53286-0D341 |
— | ||
|
53287B
|
53287B
53287-0D110
Extension, Radiator Support, Rh
[11.2013 - 09.2016] NSP15# |
53287-0D110 |
— | ||
|
53287B
|
53287B
53287-0D231
Extension, Radiator Support, Rh
[09.2016 -] NSP15# |
53287-0D231 |
— | ||
|
53288B
|
53288B
53288-0D100
Extension, Radiator Support, Lh
[11.2013 - 09.2016] NSP15# |
53288-0D100 |
— | ||
|
53288B
|
53288B
53288-0D221
Extension, Radiator Support, Lh
[09.2016 -] NSP15# |
53288-0D221 |
— | ||
|
53301G
|
53301G
90541-15111 Cushion, Radiator Support[11.2013 - 09.2016] NSP15# |
90541-15111 |
from US $2.15 |
||
|
53301G
|
53301G
90541-C0005
Cushion, Hood Bumper
[01.2017 -] NSP15# (L) |
90541-C0005 |
— | ||
|
53701
|
53701
53701-0D140
Apron Sub-Assy, Front Fender, Rh
[11.2013 - 09.2016] NSP15# |
53701-0D140 |
— | ||
|
53702
|
53702
53702-0D130
Apron Sub-Assy, Front Fender, Lh
[11.2013 - 09.2016] NSP15# |
53702-0D130 |
— | ||
|
53707E
|
53707E
53707-0D020
Apron Sub-Assy, Fender Side, Rh
[11.2013 - 09.2016] NSP15# |
53707-0D020 |
— | ||
|
53708D
|
53708D
53708-0D020
Apron Sub-Assy, Fender Side, Lh
[11.2013 - 09.2016] NSP15# |
53708-0D020 |
— | ||
|
53713C
|
53713C
53713-0D050
Extension, Front Fender Apron, Front Rh
[11.2013 - 09.2014] NSP15# |
53713-0D050 |
— | ||
| replacement | |||||
|
53713C
|
53713C
53713-0D901
Extension, Front Fender Apron, Front Rh
[11.2013 - 09.2014] NSP15# |
53713-0D901 |
— | ||
|
53713C
|
53713C
53713-0D901
Extension, Front Fender Apron, Front Rh
[09.2014 - 09.2016] NSP15# |
53713-0D901 |
— | ||
|
53714C
|
53714C
53714-0D050
Extension, Front Fender Apron, Front Lh
[11.2013 - 09.2014] NSP15# |
53714-0D050 |
— | ||
| replacement | |||||
|
53714C
|
53714C
53714-0D901
Extension, Front Fender Apron, Front Lh
[11.2013 - 09.2014] NSP15# |
53714-0D901 |
— | ||
|
53714C
|
53714C
53714-0D901
Extension, Front Fender Apron, Front Lh
[09.2014 - 09.2016] NSP15# |
53714-0D901 |
— | ||
|
53717A
|
53717A
53717-0D050
Plate, Fender Apron
[11.2013 - 09.2016] NSP15# |
53717-0D050 |
— | ||
|
53718D
|
53718D
53718-0D050
Gusset, Fender Apron, Lh
[11.2013 - 09.2016] NSP15# |
53718-0D050 |
— | ||
|
55101
|
55101
55101-0D470
Panel Sub-Assy, Dash
[11.2013 - 09.2016] NSP15#..5F |
55101-0D470 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-0D861
Panel Sub-Assy, Dash
[11.2013 - 09.2016] NSP15#..5F |
55101-0D861 |
— | ||
|
55101
|
55101
55223-0D351
Insulator, Dash Panel, Outer
[11.2013 - 09.2016] NSP15#..5F |
55223-0D351 |
— | ||
|
55101
|
55101
90950-01850 PLUG HOLE[11.2013 - 09.2016] NSP15#..5F |
90950-01850 |
US $0.64 |
||
|
55101
|
55101
55101-0D860
Panel Sub-Assy, Dash
[09.2016 - 10.2016] NSP15#..5F |
55101-0D860 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-0D861
Panel Sub-Assy, Dash
[09.2016 - 10.2016] NSP15#..5F |
55101-0D861 |
— | ||
|
55101
|
55101
90950-01850 PLUG HOLE[09.2016 - 10.2016] NSP15#..5F |
90950-01850 |
US $0.64 |
||
|
55101
|
55101
55101-0D861
Panel Sub-Assy, Dash
[10.2016 -] NSP15#..5F |
55101-0D861 |
— | ||
|
55168A
|
55168A
55168-0D050
Bracket, Front Fender Mounting, Rh
[11.2013 - 09.2016] NSP15# |
55168-0D050 |
— | ||
|
55169B
|
55169B
55169-0D050
Bracket, Front Fender Mounting, Lh
[11.2013 - 09.2016] NSP15# |
55169-0D050 |
— | ||
|
55210
|
55210
55210-0D370
Insulator Assy, Dash Panel
[11.2013 - 12.2015] NSP15#..HI,MID |
55210-0D370 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-0D371
Insulator Assy, Dash Panel
[11.2013 - 12.2015] NSP15#..HI,MID |
55210-0D371 |
— | ||
|
55210
|
55210
55210-0D371
Insulator Assy, Dash Panel
[12.2015 - 09.2016] NSP15#..HI,MID |
55210-0D371 |
— | ||
|
55210
|
55210
55210-0D710
Insulator Assy, Dash Panel
[09.2016 -] NSP15# |
55210-0D710 |
— | ||
|
55223A
|
55223A
55223-0D240
Insulator, Dash Panel, Outer
[11.2013 - 12.2015] NSP15#..HI,MID |
55223-0D240 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-0D241
Insulator, Dash Panel, Outer
[11.2013 - 12.2015] NSP15#..HI,MID |
55223-0D241 |
— | ||
|
55223A
|
55223A
55223-0D241
Insulator, Dash Panel, Outer
[12.2015 - 09.2016] NSP15#..HI,MID |
55223-0D241 |
— | ||
|
55223A
|
55223A
55223-0D350
Insulator, Dash Panel, Outer
[09.2016 - 11.2016] NSP15# |
55223-0D350 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-0D351
Insulator, Dash Panel, Outer
[09.2016 - 11.2016] NSP15# |
55223-0D351 |
— | ||
|
55223A
|
55223A
55223-0D351
Insulator, Dash Panel, Outer
[12.2016 -] NSP15# |
55223-0D351 |
— | ||
|
55223C
|
55223C
90467-06197 Clip[11.2013 - 09.2016] NSP15#..HI,MID |
90467-06197 |
from US $1.54 |
||
|
90109C0032
|
90109C0032
90109-C0032
New Genuine Part
|
90109-C0032 |
— | ||
|
90109C0040
|
90109C0040
90109-C0040
New Genuine Part
|
90109-C0040 |
— | ||
|
90109C0045
|
90109C0045
90109-C0045
New Genuine Part
|
90109-C0045 |
— | ||
|
90467C0027
|
90467C0027
90467-C0027
New Genuine Part
|
90467-C0027 |
— | ||
|
9010906379
|
9010906379
90109-06379 New Genuine Part |
90109-06379 |
US $0.96 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.88 |
||
