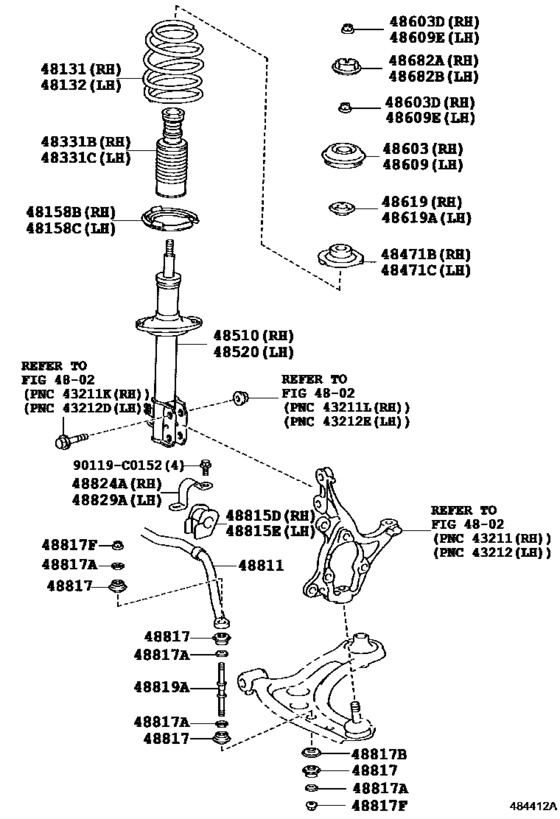

Front Spring & Shock Absorber ([09.2016 - ] (1609- )) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-0D800
Spring, Front Coil, Rh
[11.2013 - 09.2016] NSP15# |
48131-0D800 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-0DF30
Spring, Front Coil, Rh
[11.2013 - 09.2016] NSP15# |
48131-0DF30 |
— | ||
|
48131
|
48131
48131-0DF30
Spring, Front Coil, Rh
[09.2016 -] NSP15#..5F |
48131-0DF30 |
— | ||
|
48132
|
48132
48131-0D800
Spring, Front Coil, Rh
[11.2013 - 09.2016] NSP15# |
48131-0D800 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-0DF30
Spring, Front Coil, Rh
[11.2013 - 09.2016] NSP15# |
48131-0DF30 |
— | ||
|
48132
|
48132
48131-0DF30
Spring, Front Coil, Rh
[09.2016 -] NSP15#..5F |
48131-0DF30 |
— | ||
|
48158B
|
48158B
48158-0D060
Insulator, Front Coil Spring, Lower Rh
[09.2016 -] NSP15# |
48158-0D060 |
— | ||
|
48158C
|
48158C
48158-0D060
Insulator, Front Coil Spring, Lower Rh
[09.2016 -] NSP15# |
48158-0D060 |
— | ||
|
48331B
|
48331B
48331-0D110
Bumper, Front Spring, Rh
[11.2013 - 09.2016] NSP15# |
48331-0D110 |
— | ||
|
48331B
|
48331B
48331-0D170
Bumper, Front Spring, Rh
[09.2016 -] NSP15# |
48331-0D170 |
— | ||
|
48331C
|
48331C
48331-0D110
Bumper, Front Spring, Rh
[11.2013 - 09.2016] NSP15# |
48331-0D110 |
— | ||
|
48331C
|
48331C
48331-0D170
Bumper, Front Spring, Rh
[09.2016 -] NSP15# |
48331-0D170 |
— | ||
|
48471B
|
48471B
48471-0D100
Seat, Front Coil Spring, Upper Rh
[11.2013 - 09.2016] NSP15# |
48471-0D100 |
— | ||
|
48471B
|
48471B
48471-0D170
Seat, Front Coil Spring, Upper Rh
[09.2016 -] NSP15# |
48471-0D170 |
— | ||
|
48471C
|
48471C
48471-0D100
Seat, Front Coil Spring, Upper Rh
[11.2013 - 09.2016] NSP15# |
48471-0D100 |
— | ||
|
48471C
|
48471C
48471-0D170
Seat, Front Coil Spring, Upper Rh
[09.2016 -] NSP15# |
48471-0D170 |
— | ||
|
48510
|
48510
48510-0D490
Absorber Assy, Shock, Front Rh
[11.2013 - 09.2016] NSP15# MARK 48510-0D490 |
48510-0D490 |
— | ||
|
48510
|
48510
48510-0DE50
Absorber Assy, Shock, Front Rh
[09.2016 -] NSP15# MARK 48510-0DE50 |
48510-0DE50 |
— | ||
|
48520
|
48520
48510-0D490
Absorber Assy, Shock, Front Rh
[11.2013 - 09.2016] NSP15# MARK 48510-0D490 |
48510-0D490 |
— | ||
|
48520
|
48520
48510-0DE50
Absorber Assy, Shock, Front Rh
[09.2016 -] NSP15# MARK 48510-0DE50 |
48510-0DE50 |
— | ||
|
48603
|
48603
48609-0D140
Support Sub-Assy, Front Suspension, Rh
[11.2013 - 09.2016] NSP15# |
48609-0D140 |
— | ||
|
48603D
|
48603D
90178-C0046
Nut(For Front Support To Front Shock Absorber Rh)
[11.2013 - 09.2016] NSP15# |
90178-C0046 |
— | ||
|
48609
|
48609
48609-0D140
Support Sub-Assy, Front Suspension, Rh
[11.2013 - 09.2016] NSP15# |
48609-0D140 |
— | ||
|
48609E
|
48609E
90178-C0046
Nut(For Front Support To Front Shock Absorber Rh)
[11.2013 - 09.2016] NSP15# |
90178-C0046 |
— | ||
|
48619
|
48619
48619-0D040
Bearing, Strut Mounting, Rh
[11.2013 - 09.2016] NSP15# |
48619-0D040 |
— | ||
|
48619A
|
48619A
48619-0D040
Bearing, Strut Mounting, Rh
[11.2013 - 09.2016] NSP15# |
48619-0D040 |
— | ||
|
48682A
|
48682A
48682-0D100
Support, Front Suspension, No.2 Rh
[11.2013 - 09.2016] NSP15# |
48682-0D100 |
— | ||
|
48682A
|
48682A
48682-0D141
Support, Front Suspension, No.2 Rh
[09.2016 -] NSP15# |
48682-0D141 |
— | ||
|
48682B
|
48682B
48682-0D100
Support, Front Suspension, No.2 Rh
[11.2013 - 09.2016] NSP15# |
48682-0D100 |
— | ||
|
48682B
|
48682B
48682-0D141
Support, Front Suspension, No.2 Rh
[09.2016 -] NSP15# |
48682-0D141 |
— | ||
|
48811
|
48811
48811-0D180
Bar, Stabilizer, Front
[11.2013 - 10.2015] NSP15# |
48811-0D180 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-0D181
Bar, Stabilizer, Front
[11.2013 - 10.2015] NSP15# |
48811-0D181 |
— | ||
|
48811
|
48811
48811-0D181
Bar, Stabilizer, Front
[11.2015 - 09.2016] NSP15# |
48811-0D181 |
— | ||
|
48815D
|
48815D
48815-0D150
Bush, Front Stabilizer Bar, Rh
[11.2013 - 09.2016] NSP15# |
48815-0D150 |
— | ||
|
48815E
|
48815E
48815-0D150
Bush, Front Stabilizer Bar, Rh
[11.2013 - 09.2016] NSP15# |
48815-0D150 |
— | ||
|
48817
|
48817
48817-52010
Cushion, Front Stabilizer
[11.2013 - 09.2016] NSP15# |
48817-52010 |
— | ||
| replacement | |||||
|
48817
|
48817
48817-52011 Cushion, Front Stabilizer[11.2013 - 09.2016] NSP15# |
48817-52011 |
from US $2.57 |
||
|
48817A
|
48817A
90948-02179 Retainer, Cushion, No.1(For Front Stabilizer Bar)[11.2013 - 09.2016] NSP15# |
90948-02179 |
from US $1.60 |
||
|
48817B
|
48817B
90948-02178 Retainer, Cushion, No.2(For Front Stabilizer Bar)[11.2013 - 09.2016] NSP15# |
90948-02178 |
from US $2.88 |
||
|
48817F
|
48817F
90177-C0001
Nut(For Front Stabilizer Bar)
[11.2013 - 09.2016] NSP15# |
90177-C0001 |
— | ||
|
48819A
|
48819A
48819-70010 Bolt, Front StabilizerFRONT STABILIZER [11.2013 - 02.2014] NSP15# |
48819-70010 |
from US $1.12 |
||
|
48819A
|
48819A
48821-52040 Bolt, Front Stabilizer[03.2014 - 09.2016] NSP15# |
48821-52040 |
from US $5.40 |
||
|
48824A
|
48824A
48824-0D100
Bracket, Front Stabilizer, No.1 Rh
[11.2013 - 09.2016] NSP15# |
48824-0D100 |
— | ||
|
48829A
|
48829A
48824-0D100
Bracket, Front Stabilizer, No.1 Rh
[11.2013 - 09.2016] NSP15# |
48824-0D100 |
— | ||
|
90119C0152
|
90119C0152
90119-C0152
New Genuine Part
|
90119-C0152 |
— | ||
