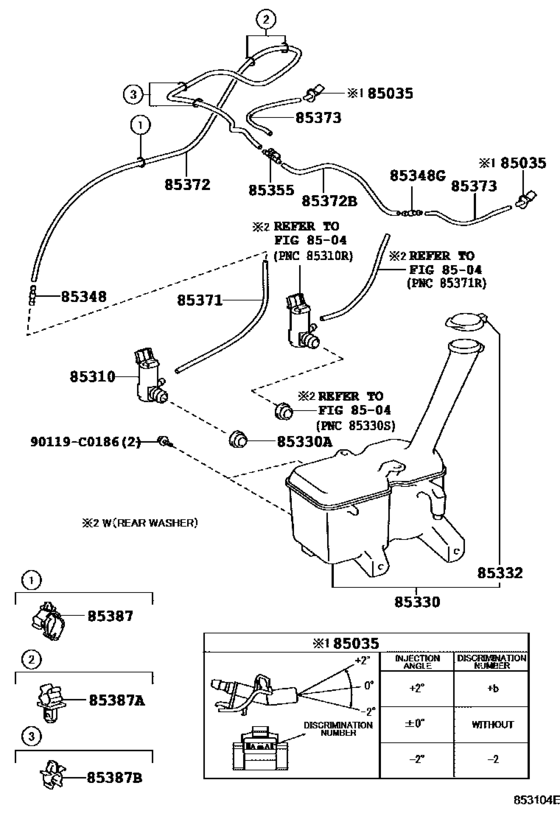

Windshield Washer ([11.2013 - ] (1311- )) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12400 Nozzle Sub-Assy, Washer[11.2013 - 09.2016] NSP15# ANGLE -2 |
85381-12400 |
from US $8.56 |
||
|
85035
|
85035
85381-30220 Nozzle Sub-Assy, Washer[11.2013 - 09.2016] NSP15# ANGLE +2 |
85381-30220 |
from US $9.43 |
||
|
85035
|
85035
85381-30230 Nozzle Sub-Assy, Washer[11.2013 - 09.2016] NSP15# ANGLE 0 |
85381-30230 |
US $14.12 |
||
|
85310
|
85310
85330-0D130
Motor And Pump Assy, Windshield Washer
[11.2013 - 07.2016] NSP15# |
85330-0D130 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-0D131 Motor And Pump Assy, Windshield Washer[11.2013 - 07.2016] NSP15# |
85330-0D131 |
US $103.43 |
||
|
85310
|
85310
85330-0D131 Motor And Pump Assy, Windshield Washer[08.2016 - 09.2016] NSP15# |
85330-0D131 |
US $103.43 |
||
|
85330
|
85330
85315-0D200
Jar Assy, Windshield Washer
[11.2013 - 09.2016] NSP15# |
85315-0D200 |
— | ||
|
85330A
|
85330A
90068-32006
Bush, Windshield Washer Jar
[11.2013 - 09.2016] NSP15# |
90068-32006 |
— | ||
|
85332
|
85332
85316-0D200
Cap, Windshield Washer Jar
[11.2013 - 09.2016] NSP15# |
85316-0D200 |
— | ||
|
85348
|
85348
85375-0D030
Joint, Windshield Washer Hose, No.1
[11.2013 - 09.2016] NSP15# |
85375-0D030 |
— | ||
|
85348G
|
85348G
85375-0D030
Joint, Windshield Washer Hose, No.1
[11.2013 - 09.2016] NSP15# |
85375-0D030 |
— | ||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[11.2013 - 09.2016] NSP15# |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90068-33188
Hose, Windshield Washer (From Motor To Joint)
[11.2013 - 09.2016] NSP15# L=260 |
90068-33188 |
— | ||
|
85372
|
85372
90068-59115
Hose, Windshield Washer (From Joint To Joint), No.1
[11.2013 - 09.2016] NSP15# L=1560 |
90068-59115 |
— | ||
|
85372B
|
85372B
90068-59108
Hose, Windshield Washer (From Joint To Joint), No.2
[11.2013 - 09.2016] NSP15# L=305 |
90068-59108 |
— | ||
|
85373
|
85373
90068-33193
Hose, Windshield Washer (From Joint To Nozzle)
[11.2013 - 09.2016] NSP15# L=230 |
90068-33193 |
— | ||
|
85387
|
85387
82711-3F230 Clamp, Sliding Roof Drain Hose[11.2013 - 09.2016] NSP15# |
82711-3F230 |
US $3.20 |
||
|
85387A
|
85387A
85371-52110 Clamp[11.2013 - 09.2016] NSP15# |
85371-52110 |
US $1.44 |
||
|
85387B
|
85387B
90469-07011 Clamp No.1 (For Windseield Washer)[11.2013 - 09.2016] NSP15# |
90469-07011 |
from US $1.76 |
||
|
90119C0186
|
90119C0186
90119-C0186
New Genuine Part
|
90119-C0186 |
— | ||
