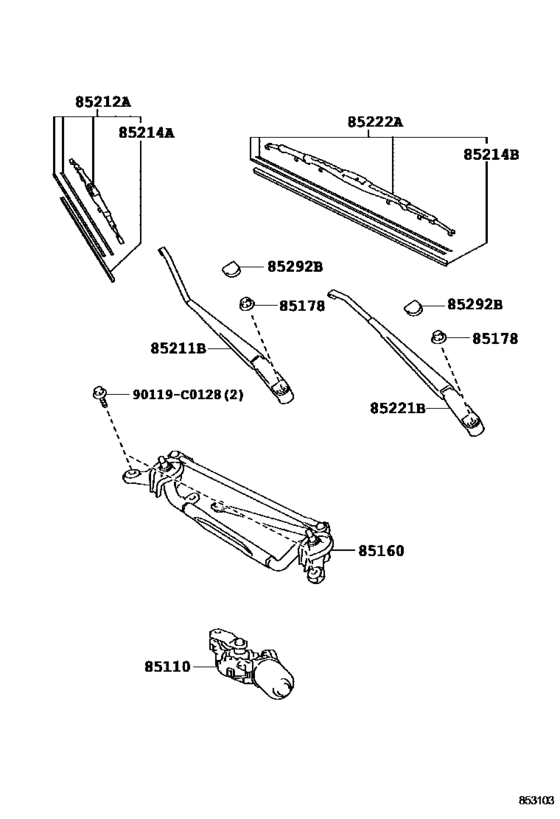

Windshield Wiper ([11.2013 - ] (1311- )) Diagram Toyota VIOS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NSP151
- grade
- MID
- body
- SED
- ENGINE
- 5NRFE
- TRANSMISSION
- MTM
- Model
- VIOS (CHINA)
- From
- 11.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- VIOS
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-0D150
Motor Assy, Windshield Wiper
[11.2013 - 09.2016] NSP15# |
85110-0D150 |
— | ||
|
85160
|
85160
85150-0D150
Link Assy, Windshield Wiper
[11.2013 - 09.2016] NSP15# |
85150-0D150 |
— | ||
|
85178
|
85178
90182-C0012
Nut (For Front Wiper Arm Setting)
[11.2013 - 09.2016] NSP15# |
90182-C0012 |
— | ||
|
85211B
|
85211B
85211-0D190
Arm, Front Wiper, Rh
[11.2013 - 09.2016] NSP15# |
85211-0D190 |
— | ||
|
85212A
|
85212A
85212-0D140
Blade, Fr Wiper, Rh
[11.2013 - 09.2016] NSP15# |
85212-0D140 |
— | ||
|
85214A
|
85214A
85214-0D220
Rubber, Wiper, Rh
[11.2013 - 09.2016] NSP15# |
85214-0D220 |
— | ||
|
85214B
|
85214B
85214-02070 Rubber, Wiper, RhWIPER, RH [11.2013 - 09.2016] NSP15# |
85214-02070 |
US $6.88 |
||
|
85221B
|
85221B
85221-0D170
Arm, Front Wiper, Lh
[11.2013 - 09.2016] NSP15# |
85221-0D170 |
— | ||
|
85222A
|
85222A
85222-0D140
Blade, Fr Wiper, Lh
[11.2013 - 09.2016] NSP15# |
85222-0D140 |
— | ||
|
85292B
|
85292B
85292-0D070
Cap, Front Wiper Arm Head
[11.2013 - 09.2016] NSP15# |
85292-0D070 |
— | ||
|
90119C0128
|
90119C0128
90119-C0128
New Genuine Part
|
90119-C0128 |
— |
