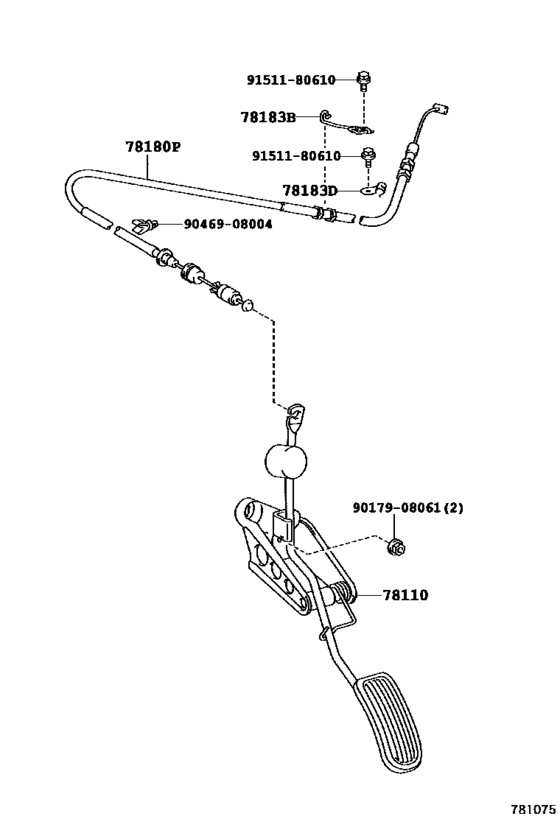

Accelerator Link ([08.2006 - ] (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-0D020
Rod Assy, Accelerator Pedal
[08.2006 -] SCP4# |
78120-0D020 |
— | ||
|
78180P
|
78180P
78180-0D110
Cable Assy, Accelerator Control
[08.2006 -] SCP4# |
78180-0D110 |
— | ||
|
78183B
|
78183B
78183-52230
Clamp, Accelerator Control Cable
[08.2006 -] SCP4# |
78183-52230 |
— | ||
|
78183D
|
78183D
78183-52210
Clamp, Accelerator Control Cable
[08.2006 -] SCP4# |
78183-52210 |
— | ||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9046908004
|
9046908004
90469-08004 New Genuine Part |
90469-08004 |
US $1.60 |
||
|
9151180610
|
9151180610
91511-80610 New Genuine Part |
91511-80610 |
US $0.73 |
