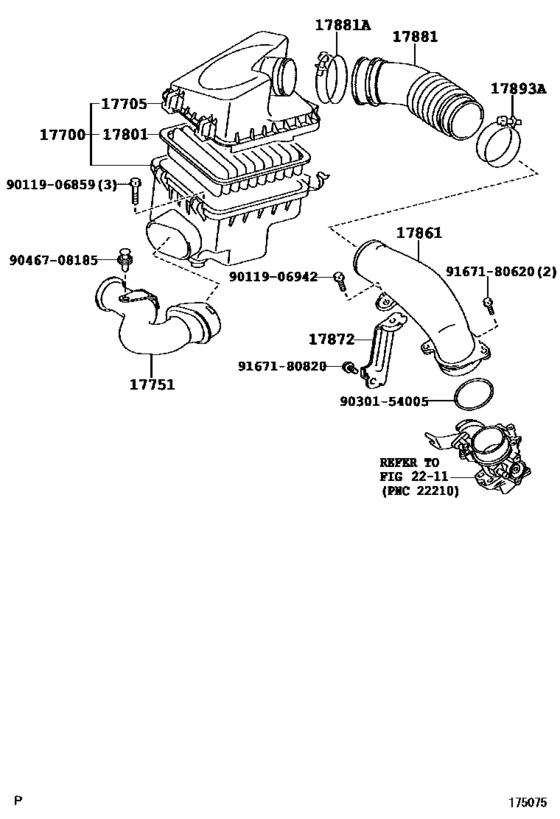

Air Cleaner ([08.2006 - ] (0608- )2SZFE,3SZFE) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-0J020
Cleaner Assy, Air
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17700-0J020 |
— | ||
|
17705
|
17705
17705-02120
Cap Sub-Assy, Air Cleaner
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17705-02120 |
— | ||
|
17751
|
17751
17751-02110
Inlet, Air Cleaner, No.1
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17751-02110 |
— | ||
|
17801
|
17801
17801-02070
Element Sub-Assy, Air Cleaner Filter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17801-02070 |
— | ||
|
17861
|
17861
17861-0J010
Connector, Intake Air
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17861-0J010 |
— | ||
|
17872
|
17872
17872-0J010
Bracket, Intake Air Connector
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17872-0J010 |
— | ||
|
17881
|
17881
17881-0J010
Hose, Air Cleaner, No.1
[08.2006 -] 2SZFE,3SZFE..SCP4# |
17881-0J010 |
— | ||
|
17881A
|
17881A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[08.2006 -] 2SZFE,3SZFE..SCP4# |
96111-10730 |
US $2.87 |
||
|
17893A
|
17893A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[08.2006 -] 2SZFE,3SZFE..SCP4# |
96111-10710 |
from US $2.87 |
||
|
9011906859
|
9011906859
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.03 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.66 |
||
|
9030154005
|
9030154005
90301-54005 RING O |
90301-54005 |
from US $7 |
||
|
9046708185
|
9046708185
90467-08185 Reinforcement, Front Spring Support, No.3 |
90467-08185 |
from US $0.88 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.80 |
