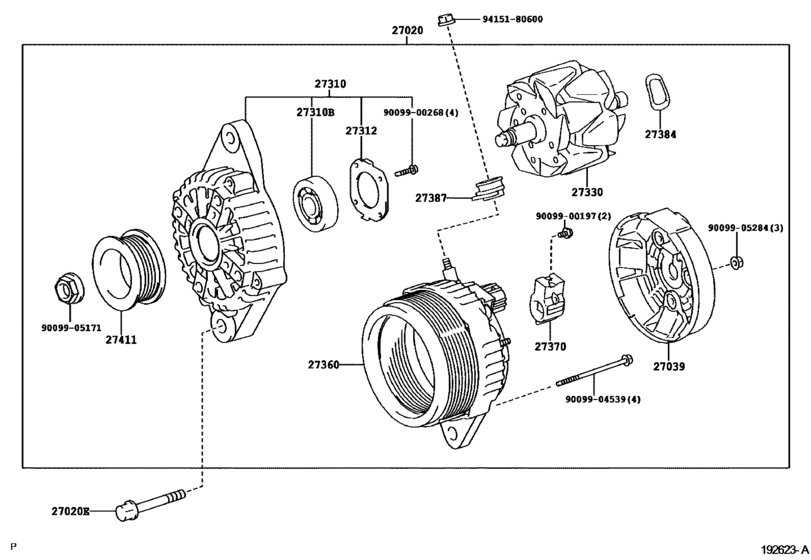

Alternator ([08.2006 - ] 12V 80A (0608- )2SZFE,3SZFE) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0J070
Alternator Assy
[08.2006 -] 2SZFE,3SZFE..SCP4# 12V 80A |
27060-0J070 |
— | ||
|
27020E
|
27020E
90105-10548
Bolt(For Alternator)
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90105-10548 |
— | ||
|
27039
|
27039
27039-0J070
Cover, Alternator Rear End
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27039-0J070 |
— | ||
|
27310
|
27310
27310-0J070
Frame Assy, Drive End, Alternator
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27310-0J070 |
— | ||
|
27310B
|
27310B
90068-10014
Bearing(For Alternator Drive End Frame)
[08.2006 - 05.2007] 2SZFE,3SZFE..SCP4# |
90068-10014 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90068-10029 Bearing(For Alternator Drive End Frame)[08.2006 - 05.2007] 2SZFE,3SZFE..SCP4# |
90068-10029 |
US $16.28 |
||
|
27310B
|
27310B
90068-10029 Bearing(For Alternator Drive End Frame)[06.2007 -] 2SZFE,3SZFE..SCP4# |
90068-10029 |
US $16.28 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27312-72100 |
— | ||
|
27330
|
27330
27330-0H110
Rotor Assy, Alternator
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27330-0H110 |
— | ||
|
27360
|
27360
27360-0J070
Coil Assy, Alternator
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27360-0J070 |
— | ||
|
27370
|
27370
27370-0H110
Holder Assy, Alternator Brush
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27370-0H110 |
— | ||
|
27384
|
27384
27384-16380
Washer
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27384-16380 |
— | ||
|
27387
|
27387
27387-0H110
Insulator, Alternator Terminal
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27387-0H110 |
— | ||
|
27411
|
27411
27411-0J070
Pulley, Alternator
[08.2006 -] 2SZFE,3SZFE..SCP4# |
27411-0J070 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.42 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
