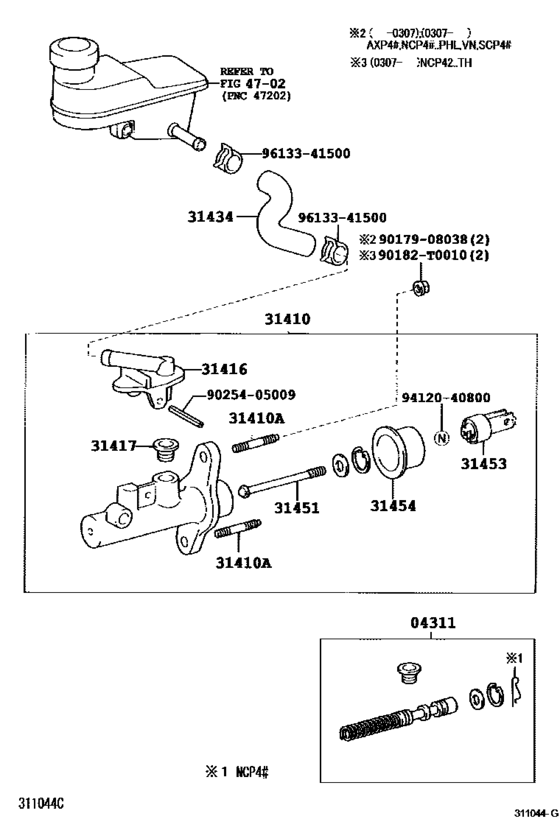

Clutch Master Cylinder ([10.2002 - ] (0210- )MTM) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-0D011
Cylinder Kit, Clutch Master
[08.2006 -] SCP4#..MTM |
04311-0D011 |
— | ||
|
31410
|
31410
31420-0D020
Cylinder Assy, Clutch Master
[08.2006 -] SCP4#..MTM |
31420-0D020 |
— | ||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[08.2006 -] SCP4#..MTM |
90116-08146 |
US $1.93 |
||
|
31416
|
31416
31416-0D010
Union, Clutch Master Cylinder Inlet
[08.2006 -] SCP4#..MTM |
31416-0D010 |
— | ||
|
31417
|
31417
31417-35010 Grommet[08.2006 -] SCP4#..MTM |
31417-35010 |
from US $2.01 |
||
|
31434
|
31434
31434-52080 Tube, Clutch ReservoirCLUTCH RESERVOIR [08.2006 -] SCP4#..MTM |
31434-52080 |
US $33.20 |
||
|
31451
|
31451
31451-36040 Rod, Clutch Master Cylinder Push[08.2006 -] SCP4#..MTM |
31451-36040 |
US $5.87 |
||
|
31453
|
31453
31404-17010 Clevis, Clutch Master Cylinder Push Rod[08.2006 -] SCP4#..MTM |
31404-17010 |
US $45.25 |
||
|
31454
|
31454
31454-16010 Boot, Clutch Master Cylinder[08.2006 -] SCP4#..MTM |
31454-16010 |
US $5.02 |
||
|
90182T0010
|
90182T0010
90182-T0010
New Genuine Part
|
90182-T0010 |
— | ||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9025405009
|
9025405009
90254-05009 New Genuine Part |
90254-05009 |
US $1.43 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
