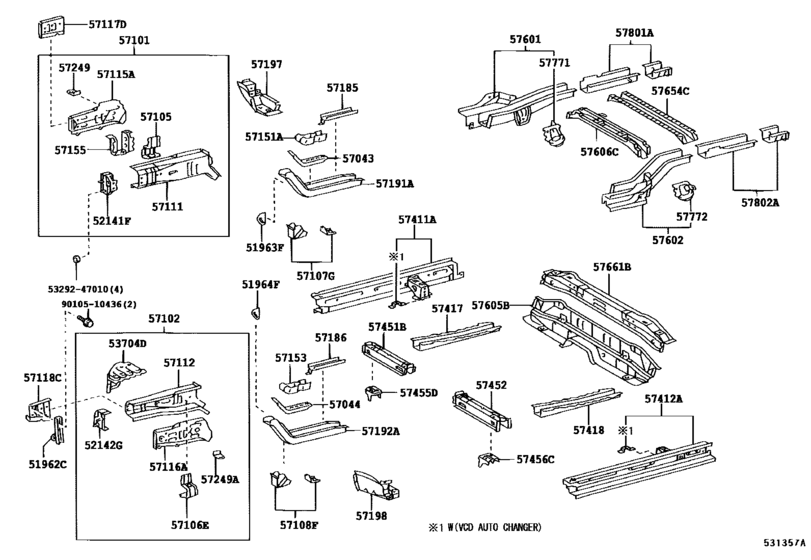

Floor Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51962C
|
51962C
51962-52010 Hook, Front Lh[08.2006 -] SCP4# |
51962-52010 |
US $29.70 |
||
| replacement | |||||
|
51962C
|
51962C
51962-52011 Hook, Front Lh[08.2006 -] SCP4# |
51962-52011 |
US $29.70 |
||
|
51963F
|
51963F
51963-0D040
Hook, Transport
[08.2006 -] SCP4# |
51963-0D040 |
— | ||
|
51964F
|
51964F
51963-0D040
Hook, Transport
[08.2006 -] SCP4# |
51963-0D040 |
— | ||
|
52141F
|
52141F
52141-52020 Arm, Front Bumper, Rh[08.2006 -] SCP4# |
52141-52020 |
US $30.28 |
||
|
52142G
|
52142G
52142-52010 Arm, Front Bumper, Lh[08.2006 -] SCP4# |
52142-52010 |
US $28.64 |
||
|
53704D
|
53704D
53704-0D020
Support Sub-Assy, Battery, Lh
[08.2006 -] SCP4# |
53704-0D020 |
— | ||
|
57043
|
57043
57044-0D030
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[08.2006 -] SCP4# |
57044-0D030 |
— | ||
|
57044
|
57044
57044-0D030
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[08.2006 -] SCP4# |
57044-0D030 |
— | ||
|
57101
|
57101
57101-0D901
Member Sub-Assy, Front Side, Rh
[08.2006 -] SCP4# |
57101-0D901 |
— | ||
|
57102
|
57102
57102-0D901
Member Sub-Assy, Front Side, Lh
[08.2006 -] SCP4# |
57102-0D901 |
— | ||
|
57105
|
57105
57105-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[08.2006 -] SCP4# |
57105-52010 |
US $30.28 |
||
|
57106E
|
57106E
57105-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[08.2006 -] SCP4# |
57105-52010 |
US $30.28 |
||
|
57107G
|
57107G
57107-0D030
Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh
[08.2006 -] SCP4# |
57107-0D030 |
— | ||
|
57108F
|
57108F
57108-0D030
Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh
[08.2006 -] SCP4# |
57108-0D030 |
— | ||
|
57111
|
57111
57111-0D020
Member, Front Side, Rh
[08.2006 -] SCP4# |
57111-0D020 |
— | ||
|
57112
|
57112
57112-0D030
Member, Front Side, Lh
[08.2006 -] SCP4# |
57112-0D030 |
— | ||
|
57115A
|
57115A
57115-0D020
Plate, Front Side Member, Outer Rh
[08.2006 -] SCP4# |
57115-0D020 |
— | ||
|
57116A
|
57116A
57116-0D020
Plate, Front Side Member, Outer Lh
[08.2006 -] SCP4# |
57116-0D020 |
— | ||
|
57117D
|
57117D
57117-52020 Plate Sub-Assy, Front Side Member, Front Rh[08.2006 -] SCP4# |
57117-52020 |
from US $22.56 |
||
|
57118C
|
57118C
57202-52010 Reinforcement, Front Bumper Mounting, Lh[08.2006 -] SCP4# |
57202-52010 |
US $46.16 |
||
|
57151A
|
57151A
57151-0D030
Reinforcement, Front Side Member, No.1 Rh
[08.2006 -] SCP4# |
57151-0D030 |
— | ||
|
57153
|
57153
57153-0D030
Reinforcement, Front Side Member, No.2 Rh
[08.2006 -] SCP4# |
57153-0D030 |
— | ||
|
57155
|
57155
57155-52020 Reinforcement, Front Side Member, No.3, RhFRONT SIDE MEMBER, NO.3, RH [08.2006 -] SCP4# |
57155-52020 |
US $23.59 |
||
|
57185
|
57185
57185-0D010
Reinforsement, Front Side Member, Rear No.1 Inner Rh
[08.2006 -] SCP4# |
57185-0D010 |
— | ||
|
57186
|
57186
57185-0D010
Reinforsement, Front Side Member, Rear No.1 Inner Rh
[08.2006 -] SCP4# |
57185-0D010 |
— | ||
|
57191A
|
57191A
57191-0D020
Member, Front Side, Inner Rear Rh
[08.2006 -] SCP4# |
57191-0D020 |
— | ||
|
57192A
|
57192A
57192-0D020
Member, Front Side, Inner Rear Lh
[08.2006 -] SCP4# |
57192-0D020 |
— | ||
|
57197
|
57197
57077-52020 Box, Torque, Front Rh[08.2006 -] SCP4# |
57077-52020 |
US $63.19 |
||
|
57198
|
57198
57078-52020 Box, Torque, Front Lh[08.2006 -] SCP4# |
57078-52020 |
from US $63.19 |
||
|
57249
|
57249
57249-10040 Bracket, Front Side Member, Rh[08.2006 -] SCP4# |
57249-10040 |
US $4.37 |
||
|
57249A
|
57249A
57249-10040 Bracket, Front Side Member, Rh[08.2006 -] SCP4# |
57249-10040 |
US $4.37 |
||
|
57411A
|
57411A
57401-0D030
Member, Floor Side, Inner Rh
[08.2006 -] SCP4# |
57401-0D030 |
— | ||
|
57412A
|
57412A
57402-0D030
Member, Floor Side, Inner Lh
[08.2006 -] SCP4# |
57402-0D030 |
— | ||
|
57417
|
57417
57417-52031 Reinforcement, Front Floor Under, Rh[08.2006 -] SCP4# |
57417-52031 |
US $55.56 |
||
|
57418
|
57418
57417-52031 Reinforcement, Front Floor Under, Rh[08.2006 -] SCP4# |
57417-52031 |
US $55.56 |
||
|
57451B
|
57451B
57451-0D021
Member, Front Floor Cross, Rh
[08.2006 -] SCP4# |
57451-0D021 |
— | ||
|
57452
|
57452
57452-0D020
Member, Front Floor Cross, Lh
[08.2006 -] SCP4# |
57452-0D020 |
— | ||
|
57455D
|
57455D
57455-52010 Gusset, Front Floor Crossmember, RhFRONT FLOOR CROSSMEMBER, RH [08.2006 -] SCP4# |
57455-52010 |
US $17.76 |
||
|
57456C
|
57456C
57456-52010 Gusset, Front Floor Crossmember, LhFRONT FLOOR CROSSMEMBER, LH [08.2006 -] SCP4# |
57456-52010 |
US $17.76 |
||
|
57601
|
57601
57601-0D901
Member Sub-Assy, Rear Floor Side, Rh
[08.2006 -] SCP4# |
57601-0D901 |
— | ||
|
57602
|
57602
57602-0D901
Member Sub-Assy, Rear Floor Side, Lh
[08.2006 -] SCP4# |
57602-0D901 |
— | ||
|
57605B
|
57605B
57605-0D020
Member Sub-Assy, Rear Floor Cross, No.1
[08.2006 -] SCP4# |
57605-0D020 |
— | ||
|
57606C
|
57606C
57606-0D020
Member Sub-Assy, Rear Floor Cross, No.2
[08.2006 -] SCP4# |
57606-0D020 |
— | ||
|
57654C
|
57654C
57607-0D010
Member, Rear Floor Cross, No.3
[08.2006 -] SCP4# |
57607-0D010 |
— | ||
|
57661B
|
57661B
57661-0D010
Member, Rear Floor Cross, Front
[08.2006 -] SCP4# |
57661-0D010 |
— | ||
|
57771
|
57771
51301-0D030
Plate, Rear Spring, Rh
[08.2006 -] SCP4# |
51301-0D030 |
— | ||
|
57772
|
57772
51302-0D030
Plate, Rear Spring, Lh
[08.2006 -] SCP4# |
51302-0D030 |
— | ||
|
57801A
|
57801A
57801-0D010
Reinforcement Sub-Assy, Rear Floor Side Member, Rh
[08.2006 -] SCP4# |
57801-0D010 |
— | ||
|
57802A
|
57802A
57802-0D010
Reinforcement Sub-Assy, Rear Floor Side Member, Lh
[08.2006 -] SCP4# |
57802-0D010 |
— | ||
|
5329247010
|
5329247010
53292-47010 Seal, Radiator Support, Upper |
53292-47010 |
US $0.73 |
||
|
9010510436
|
9010510436
90105-10436 BOLT WASHER BASED |
90105-10436 |
from US $1.01 |
||
