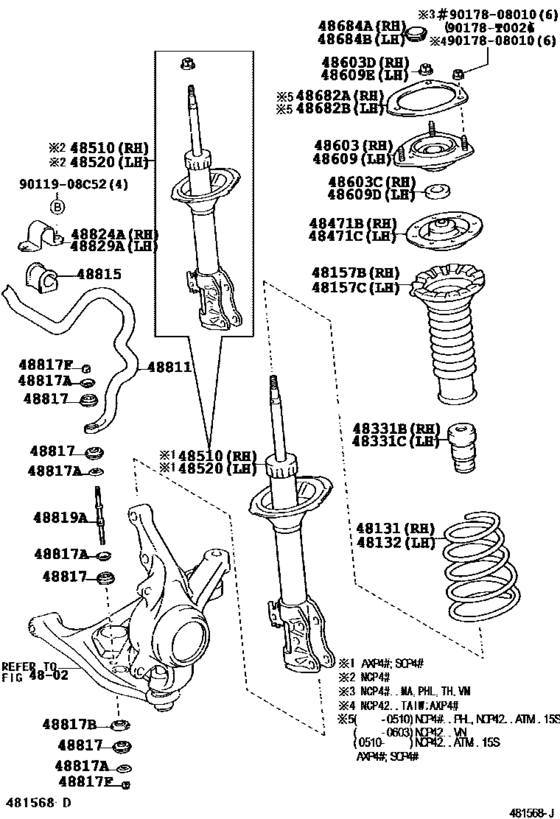

Front Spring & Shock Absorber ([10.2002 - ] (0210- )) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-0D270
Spring, Front Coil, Rh
[08.2006 -] SCP4#..MTM |
48131-0D270 |
— | ||
|
48132
|
48132
48131-0D270
Spring, Front Coil, Rh
[08.2006 -] SCP4#..MTM |
48131-0D270 |
— | ||
|
48157B
|
48157B
48157-0D020
Insulator, Front Coil Spring, Upper Rh
[08.2006 -] SCP4# |
48157-0D020 |
— | ||
|
48157C
|
48157C
48157-0D020
Insulator, Front Coil Spring, Upper Rh
[08.2006 -] SCP4# |
48157-0D020 |
— | ||
|
48331B
|
48331B
48331-0D020
Bumper, Front Spring, Rh
[08.2006 -] SCP4# |
48331-0D020 |
— | ||
|
48331C
|
48331C
48331-0D020
Bumper, Front Spring, Rh
[08.2006 -] SCP4# |
48331-0D020 |
— | ||
|
48471B
|
48471B
48044-52010 Seat, Front Coil Spring, Upper[08.2006 -] SCP4# |
48044-52010 |
from US $11.80 |
||
|
48471C
|
48471C
48044-52010 Seat, Front Coil Spring, Upper[08.2006 -] SCP4# |
48044-52010 |
from US $11.80 |
||
|
48510
|
48510
48510-0D031
Absorber Assy, Shock, Front Rh
[08.2006 -] SCP4# MARK 48510-0D031 |
48510-0D031 |
— | ||
|
48520
|
48520
48510-0D031
Absorber Assy, Shock, Front Rh
[08.2006 -] SCP4# MARK 48510-0D031 |
48510-0D031 |
— | ||
|
48603
|
48603
48609-0D030
Support Sub-Assy, Front Suspension, Rh
[08.2006 -] SCP4# |
48609-0D030 |
— | ||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[08.2006 -] SCP4# |
90303-22002 |
from US $3.58 |
||
|
48603D
|
48603D
90179-12145 Nut[08.2006 -] SCP4# |
90179-12145 |
from US $0.92 |
||
|
48609
|
48609
48609-0D030
Support Sub-Assy, Front Suspension, Rh
[08.2006 -] SCP4# |
48609-0D030 |
— | ||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[08.2006 -] SCP4# |
90303-22002 |
from US $3.58 |
||
|
48609E
|
48609E
90179-12145 Nut[08.2006 -] SCP4# |
90179-12145 |
from US $0.92 |
||
|
48682A
|
48682A
48682-52010 Support, Front Suspension, No.2 Rh[08.2006 -] SCP4# |
48682-52010 |
US $17.14 |
||
|
48682B
|
48682B
48682-52010 Support, Front Suspension, No.2 Rh[08.2006 -] SCP4# |
48682-52010 |
US $17.14 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[08.2006 -] SCP4# |
48684-52010 |
from US $9.44 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[08.2006 -] SCP4# |
48684-52010 |
from US $9.44 |
||
|
48811
|
48811
48811-0D020
Bar, Stabilizer, Front
[08.2006 - 09.2007] SCP4# (L) |
48811-0D020 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-0D021
Bar, Stabilizer, Front
[08.2006 - 09.2007] SCP4# (L) |
48811-0D021 |
— | ||
|
48811
|
48811
48811-0D021
Bar, Stabilizer, Front
[10.2007 -] SCP4# (L) |
48811-0D021 |
— | ||
|
48811
|
48811
48811-52120 Bar, Stabilizer, Front[08.2006 -] SCP4# (J) |
48811-52120 |
US $147.06 |
||
|
48815
|
48815
48815-0D020
Bush, Front Stabilizer Bar, No.1
[08.2006 -] SCP4# |
48815-0D020 |
— | ||
|
48817
|
48817
48817-0D020
Cushion, Front Stabilizer
[08.2006 -] SCP4# |
48817-0D020 |
— | ||
|
48817A
|
48817A
90948-02179 Retainer, Cushion, No.1(For Front Stabilizer Bar)[08.2006 -] SCP4# |
90948-02179 |
from US $1.79 |
||
|
48817B
|
48817B
90948-02178 Retainer, Cushion, No.2(For Front Stabilizer Bar)[08.2006 -] SCP4# |
90948-02178 |
from US $2.87 |
||
|
48817F
|
48817F
94182-10800 Nut[08.2006 -] SCP4# |
94182-10800 |
from US $1.31 |
||
|
48819A
|
48819A
48819-52010 Bolt, Front Stabilizer[08.2006 -] SCP4# |
48819-52010 |
from US $3.43 |
||
|
48824A
|
48824A
48824-52031 Bracket, Front Stabilizer, No.1[08.2006 -] SCP4# |
48824-52031 |
US $15.59 |
||
|
48829A
|
48829A
48824-52031 Bracket, Front Stabilizer, No.1[08.2006 -] SCP4# |
48824-52031 |
US $15.59 |
||
|
90178T0026
|
90178T0026
90178-T0026
Nut(For Front Suspension Support)
|
90178-T0026 |
— | ||
|
9011908C52
|
9011908C52
90119-08C52 New Genuine Part |
90119-08C52 |
US $2.33 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $0.90 |
||
