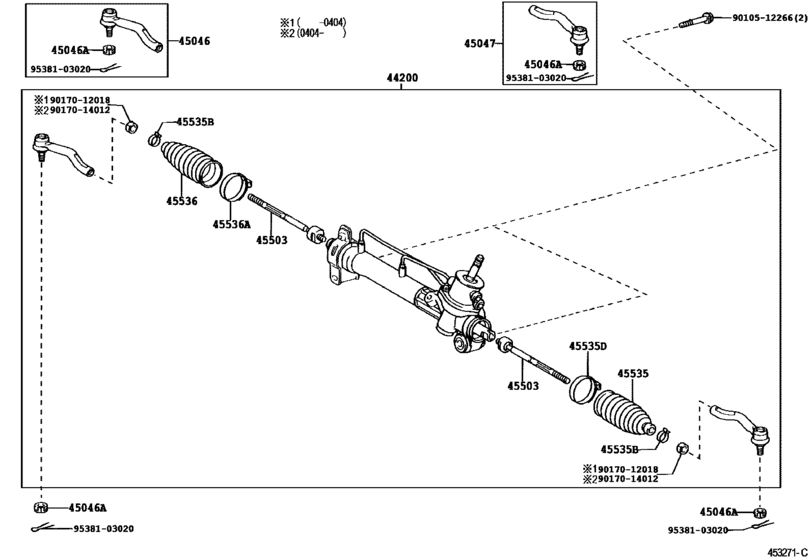

Front Steering Gear & Link ([10.2002 - ] (0210- )15GLI,DLXI,GL,GLI,GLS,GLXI) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-52420 Link Assy, Power Steering[08.2006 -] SCP4# |
44200-52420 |
US $1,528.80 |
||
| replacements | |||||
|
44200
|
44200
44250-52230
Gear Assy, Power Steering(for Rack & Pinion)
[08.2006 -] SCP4# |
44250-52230 |
— | ||
|
44200
|
44200
45046-19175 End Sub-Assy, Tie Rod[08.2006 -] SCP4# |
45046-19175 |
from US $50.13 |
||
|
44200
|
44200
90170-14012 Nut, Rack End Lock[08.2006 -] SCP4# |
90170-14012 |
from US $1.07 |
||
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[08.2006 -] SCP4# |
45046-19175 |
from US $50.13 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.2006 -] SCP4# |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[08.2006 -] SCP4# |
45046-19175 |
from US $50.13 |
||
|
45503
|
45503
45503-52030 End Sub-Assy, Steering Rack[08.2006 -] SCP4# |
45503-52030 |
US $78.62 |
||
|
45535
|
45535
45535-52060 Boot, Steering Rack, No.1[08.2006 -] SCP4# |
45535-52060 |
from US $9.69 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2006 -] SCP4# |
90467-19021 |
from US $1.37 |
||
|
45535D
|
45535D
90460-58008 Clamp(For Steering Rack Boot)[08.2006 -] SCP4# |
90460-58008 |
US $6.99 |
||
|
45536
|
45536
45535-52060 Boot, Steering Rack, No.1[08.2006 -] SCP4# |
45535-52060 |
from US $9.69 |
||
|
45536A
|
45536A
90460-58008 Clamp(For Steering Rack Boot)[08.2006 -] SCP4# |
90460-58008 |
US $6.99 |
||
|
9010512266
|
9010512266
90105-12266 BOLT WASHER BASED |
90105-12266 |
US $6.99 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $0.64 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
