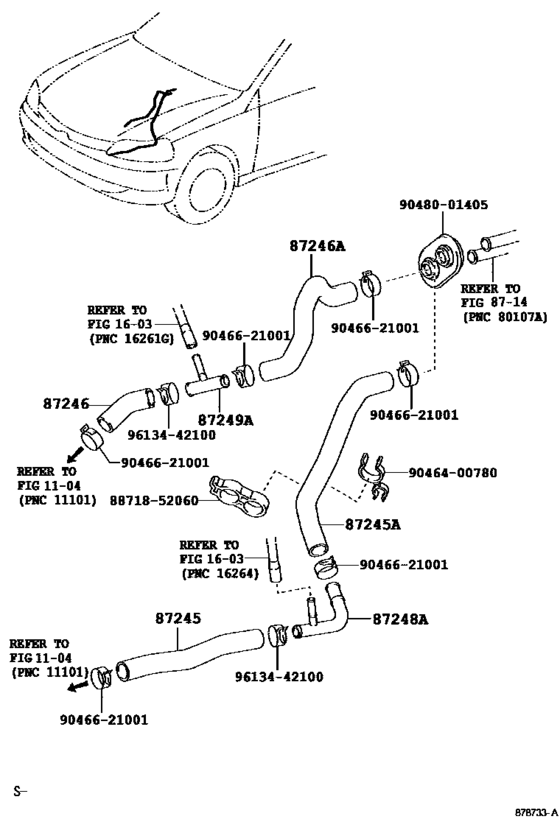

Heating & Air Conditioning - Water Piping ([08.2006 - ] (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245
|
87245
87245-0D120
Hose, Heater Water, Inlet
[08.2006 -] SCP4# |
87245-0D120 |
— | ||
|
87245A
|
87245A
87245-0D130
Hose, Heater Water, Inlet A
[08.2006 -] SCP4# |
87245-0D130 |
— | ||
|
87246
|
87246
87245-0D140
Hose, Heater Water, Outlet
[08.2006 -] SCP4# |
87245-0D140 |
— | ||
|
87246A
|
87246A
87245-0D150
Hose, Heater Water, Outlet A
[08.2006 -] SCP4# |
87245-0D150 |
— | ||
|
87248A
|
87248A
87248-0D020
Pipe, Heater Water Inlet, A
[08.2006 -] SCP4# |
87248-0D020 |
— | ||
|
87249A
|
87249A
87248-0D010
Pipe, Heater Water Outlet, A
[08.2006 -] SCP4# |
87248-0D010 |
— | ||
|
8871852060
|
8871852060
88718-52060
Pipe, Cooler Refrigerant Suction, No.2
|
88718-52060 |
— | ||
|
9046400780
|
9046400780
90464-00780 New Genuine Part |
90464-00780 |
US $2.04 |
||
|
9046621001
|
9046621001
90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-21001 |
from US $3.94 |
||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $3.84 |
||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $0.96 |
