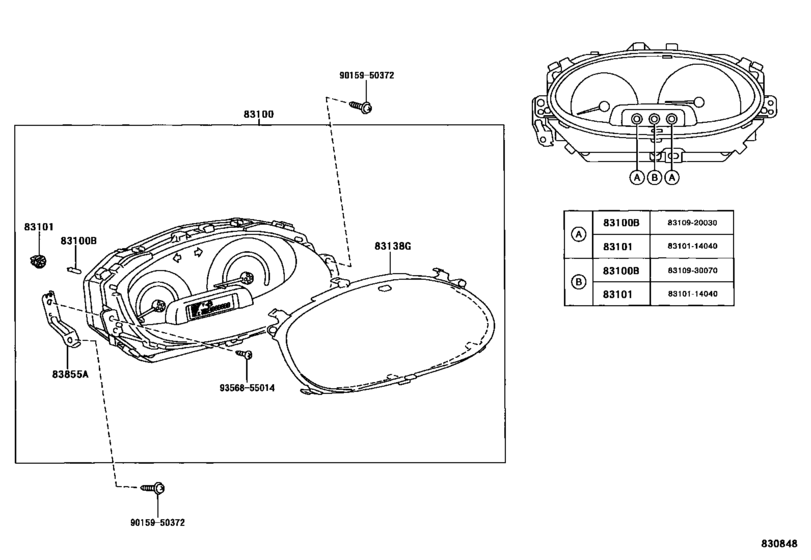

Meter ([10.2002 - ] ANALOG METER (0210- )CHI,VN ; (0305- )13E) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-0DC10
Meter Assy, Combination
[08.2006 - 05.2007] SCP41..MTM |
83800-0DC10 |
— | ||
|
83100
|
83100
83800-0DC20
Meter Assy, Combination
[05.2007 -] SCP41..MTM |
83800-0DC20 |
— | ||
|
83100B
|
83100B
83109-20030
Bulb, Combination Meter, No.1
[08.2006 - 05.2007] SCP41 12V 1.4W,BLUE CAP,TYPE A:REFER ILLUST. |
83109-20030 |
— | ||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[08.2006 - 05.2007] SCP41 14V 2.0W,W/O SOCKET,TYPE B:REFER ILLUST. |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
90010-03067
Bulb, Combination Meter, No.1
[05.2007 -] SCP41 14V 1.12W,TYPE A:REFER ILLUST. |
90010-03067 |
— | ||
|
83100B
|
83100B
90099-53009 Bulb, Combination Meter, No.1[05.2007 -] SCP41 14V0.84W W/O(SOCKET),TYPE B:REFER ILLUST. |
90099-53009 |
from US $1.50 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.2006 -] SCP4# |
83101-14040 |
US $2.44 |
||
|
83138G
|
83138G
83852-0D080
Glass, Combination Meter
[08.2006 - 05.2007] SCP41 |
83852-0D080 |
— | ||
|
83138G
|
83138G
83852-0D320
Glass, Combination Meter
[05.2007 -] SCP41 |
83852-0D320 |
— | ||
|
83855A
|
83855A
83855-0D080
Bracket, Combination Meter, No.1
[08.2006 -] SCP4# |
83855-0D080 |
— | ||
|
9015950372
|
9015950372
90159-50372 Screw |
90159-50372 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
