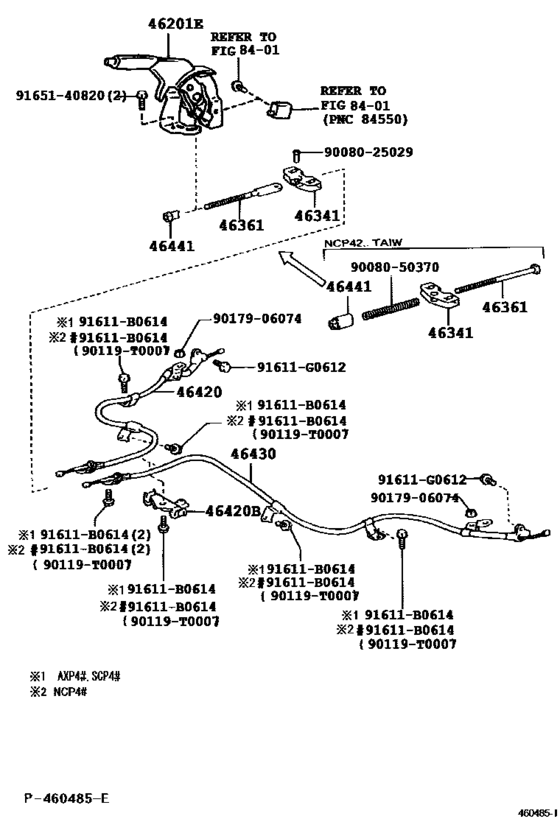

Parking Brake & Cable ([10.2002 - ] (0210- )) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-0D040-A0 Lever Sub-Assy, Parking BrakePARKING BRAKE [08.2006 -] SCP41 IVORY,TRIM0# |
46201-0D040-A0 |
US $84.45 |
||
|
46341
|
46341
46341-0D030
Equalizer, Parking Brake
[08.2006 -] SCP4# |
46341-0D030 |
— | ||
|
46361
|
46361
46361-0D030 Rod, Parking Brake PullPARKING BRAKE PULL [08.2006 -] SCP4# |
46361-0D030 |
US $4.37 |
||
|
46420
|
46420
46420-0D030
Cable Assy, Parking Brake, No.2
[08.2006 -] SCP4# |
46420-0D030 |
— | ||
|
46420B
|
46420B
46451-52010 Clamp, No.2(For Parking Brake Cable)[08.2006 -] SCP4# |
46451-52010 |
US $3.79 |
||
|
46430
|
46430
46430-0D030
Cable Assy, Parking Brake, No.3
[08.2006 -] SCP4# |
46430-0D030 |
— | ||
|
46441
|
46441
46441-0D030 Nut, Wire Adjusting, No.1WIRE ADJUSTING, NO.1 [08.2006 -] SCP4# |
46441-0D030 |
US $1.16 |
||
|
90119T0007
|
90119T0007
90119-T0007 New Genuine Part |
90119-T0007 |
US $0.87 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9008025029
|
9008025029
90080-25029 New Genuine Part |
90080-25029 |
US $2.04 |
||
|
9008050370
|
9008050370
90080-50370
New Genuine Part
|
90080-50370 |
— | ||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
