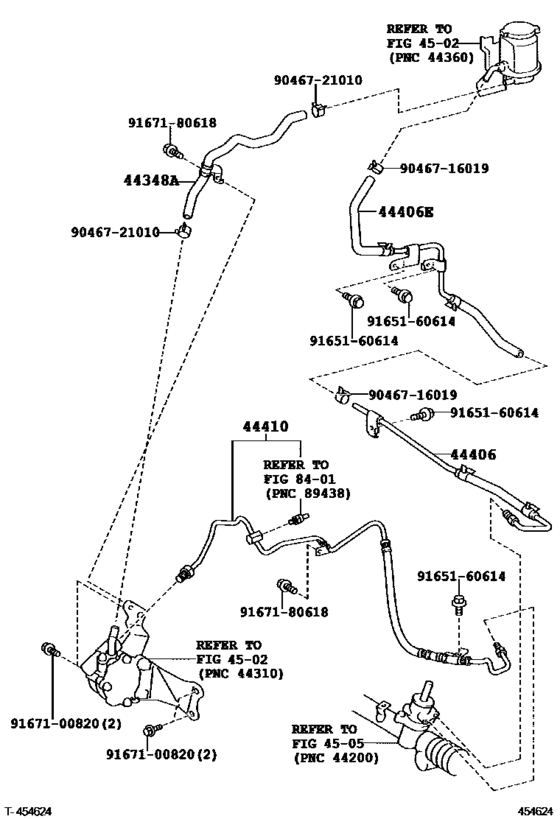

Power Steering Tube ([08.2006 - ] (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-52020
Hose, Oil Reservoir To Pump, No.1
[08.2006 -] SCP41 |
44348-52020 |
— | ||
|
44406
|
44406
44406-52020 Tube Sub-Assy, ReturnRETURN [08.2006 -] SCP4# |
44406-52020 |
from US $46.01 |
||
|
44406E
|
44406E
44406-52030 Tube Sub-Assy, Return, No.2RETURN, NO.2 [08.2006 -] SCP4# |
44406-52030 |
from US $57.51 |
||
|
44410
|
44410
44410-52170
Tube Assy, Pressure Feed
[08.2006 -] SCP41 |
44410-52170 |
— | ||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.26 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.39 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $0.83 |
||
|
9167100820
|
9167100820
91671-00820 New Genuine Part |
91671-00820 |
US $1.16 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.69 |
