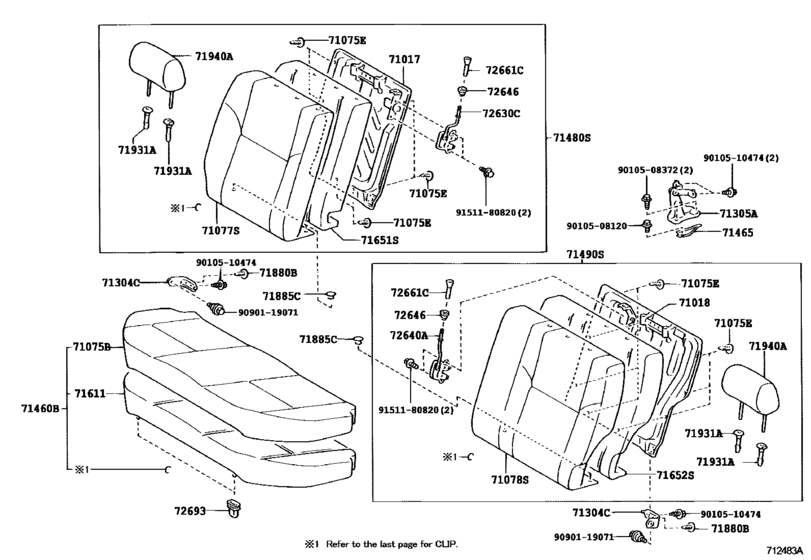

Rear Seat & Seat Track ([10.2002 - ] (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017
|
71017
71017-0D010
Frame Sub-Assy, Rear Seat Back, Rh
[08.2006 -] SCP4# |
71017-0D010 |
— | ||
|
71018
|
71018
71018-0D010
Frame Sub-Assy, Rear Seat Back, Lh
[08.2006 -] SCP4# |
71018-0D010 |
— | ||
|
71075B
|
71075B
71075-0D200-A0
Cover, Rear Seat Cushion (For Bench Type)
[08.2006 - 10.2006] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71075-0D200-A0 |
— | ||
| replacement | |||||
|
71075B
|
71075B
71075-0D530-A0
Cover, Rear Seat Cushion (For Bench Type)
[08.2006 - 10.2006] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71075-0D530-A0 |
— | ||
|
71075B
|
71075B
71075-0D530-A0
Cover, Rear Seat Cushion (For Bench Type)
[11.2006 -] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71075-0D530-A0 |
— | ||
|
71075E
|
71075E
90467-07080-C0 Clip(For Instrument Lower Cover)[08.2006 -] SCP4# BLACK |
90467-07080-C0 |
US $1.61 |
||
|
71077S
|
71077S
71077-0D210-A0
Cover, Rear Seat Back, Rh (For Separate Type)
[08.2006 - 10.2006] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71077-0D210-A0 |
— | ||
| replacement | |||||
|
71077S
|
71077S
71077-0D620-A0
Cover, Rear Seat Back, Rh (For Separate Type)
[08.2006 - 10.2006] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71077-0D620-A0 |
— | ||
|
71077S
|
71077S
71077-0D620-A0
Cover, Rear Seat Back, Rh (For Separate Type)
[11.2006 -] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71077-0D620-A0 |
— | ||
|
71078S
|
71078S
71078-0D050-A0
Cover, Rear Seat Back, Lh(For Separate Type)
[08.2006 - 10.2006] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71078-0D050-A0 |
— | ||
| replacement | |||||
|
71078S
|
71078S
71078-0D230-A0
Cover, Rear Seat Back, Lh(For Separate Type)
[08.2006 - 10.2006] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71078-0D230-A0 |
— | ||
|
71078S
|
71078S
71078-0D230-A0
Cover, Rear Seat Back, Lh(For Separate Type)
[11.2006 -] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71078-0D230-A0 |
— | ||
|
71304C
|
71304C
71345-0D010
Hinge Sub-Assy, Rear Seat Back, Lh
[08.2006 -] SCP4# |
71345-0D010 |
— | ||
|
71305A
|
71305A
71305-0D010
Hinge Sub-Assy, Rear Seat Back, Center
[08.2006 -] SCP4# |
71305-0D010 |
— | ||
|
71465
|
71465
71465-0D010
Spring, Rear Seat Cushion, No.5
[08.2006 -] SCP4# |
71465-0D010 |
— | ||
|
71611
|
71611
71503-0D010
Pad, Rear Seat Cushion
[08.2006 -] SCP4# |
71503-0D010 |
— | ||
|
71651S
|
71651S
71651-0D010
Pad, Rear Seat Back, Rh(For Separate Type)
[08.2006 -] SCP4#..GL,GLI,GLS |
71651-0D010 |
— | ||
|
71652S
|
71652S
71652-0D010
Pad, Rear Seat Back, Lh(For Separate Type)
[08.2006 -] SCP4#..GL,GLI,GLS |
71652-0D010 |
— | ||
|
71880B
|
71880B
90467-06070-C0 Clip(For Rear Seat Back Carpet)[08.2006 -] SCP42..GLI BLACK,TRIM0#,1#; SCP42..GLS BLACK,TRIM1#; SCP4#..GL,GLXI BLACK,TRIM0# |
90467-06070-C0 |
US $2.04 |
||
|
71885C
|
71885C
90467-09156-C0 Clip(For Deck Boad)[08.2006 -] SCP42..GLI BLACK,TRIM0#,1#; SCP42..GLS BLACK,TRIM1#; SCP4#..GL,GLXI BLACK,TRIM0# |
90467-09156-C0 |
US $1.10 |
||
|
71931A
|
71931A
71956-47010-A0 Support, Rear Seat Headrest[08.2006 -] SCP4#..GL,GLI,GLXI W/O(LOCK),IVORY,TRIM0# |
71956-47010-A0 |
US $14.50 |
||
|
71931A
|
71931A
71970-47010-A0 Support, Rear Seat Headrest[08.2006 -] SCP4#..GL,GLI,GLXI W(LOCK),IVORY,TRIM0# |
71970-47010-A0 |
US $17.82 |
||
|
71940A
|
71940A
71940-0D140-A0
Headrest Assy, Rear Seat
[08.2006 -] SCP41 SEAT = TYPE B-*104,IVORY,TRIM0# |
71940-0D140-A0 |
— | ||
|
72630C
|
72630C
72630-0D010
Lock Assy, Rear Seat Back, Rh
[08.2006 -] SCP4# |
72630-0D010 |
— | ||
|
72640A
|
72640A
72640-0D010
Lock Assy, Rear Seat Back, Lh
[08.2006 -] SCP4# |
72640-0D010 |
— | ||
|
72646
|
72646
72646-0D010-A0
Grommet, Rear Seat Back Stop Button
[08.2006 -] SCP4#..GL,GLI,GLXI IVORY,TRIM0# |
72646-0D010-A0 |
— | ||
|
72661C
|
72661C
72661-32030-A0 Button, Rear Seat Back Stop Release[08.2006 -] SCP4#..GL,GLI,GLXI IVORY,TRIM0# |
72661-32030-A0 |
US $4.19 |
||
|
72693
|
72693
72693-12080 Hook, Rear Seat Cushion Lock[08.2006 -] SCP4# |
72693-12080 |
from US $1.29 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9010508372
|
9010508372
90105-08372 BOLT WASHER BASED |
90105-08372 |
US $1.43 |
||
|
9010510474
|
9010510474
90105-10474 New Genuine Part |
90105-10474 |
US $1.75 |
||
|
9090119071
|
9090119071
90901-19071 New Genuine Part |
90901-19071 |
US $5.10 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.80 |
||
