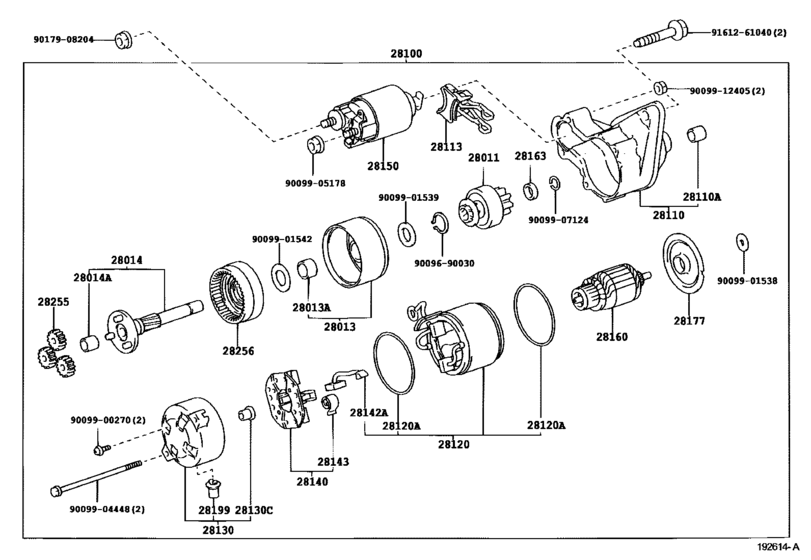

Starter ([08.2006 - ] 12V 1.2KW (0608- )2SZFE,3SZFE) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-02130
Clutch Sub-Assy, Starter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28011-02130 |
— | ||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[08.2006 -] 2SZFE,3SZFE..SCP4# |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90099-10181 |
— | ||
|
28014
|
28014
28014-02130
Shaft Sub-Assy, Planet Carrier
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28014-02130 |
— | ||
|
28014A
|
28014A
90068-10017
Bush Or Bearing, Planet Carrier Shaft
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90068-10017 |
— | ||
|
28100
|
28100
28100-0J040
Starter Assy
[08.2006 - 10.2007] 2SZFE,3SZFE..SCP4# 12V 1.2KW |
28100-0J040 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0J041
Starter Assy
[08.2006 - 10.2007] 2SZFE,3SZFE..SCP4# 12V 1.2KW |
28100-0J041 |
— | ||
|
28100
|
28100
28100-0J041
Starter Assy
[11.2007 -] 2SZFE,3SZFE..SCP4# 12V 1.2KW |
28100-0J041 |
— | ||
|
28110
|
28110
28110-0J040
Housing Assy, Starter Drive
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28110-0J040 |
— | ||
|
28110A
|
28110A
90099-10221
Bearing(For Starter Housing)
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90099-10221 |
— | ||
|
28113
|
28113
28113-02130
Lever, Starter Pinion Drive
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28113-02130 |
— | ||
|
28120
|
28120
28120-0J040
Yoke Assy, Starter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28120-0J040 |
— | ||
|
28120A
|
28120A
90068-14025
Ring, O(For Starter Yoke)
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90068-14025 |
— | ||
|
28130
|
28130
28130-0J040
Frame Assy, Starter Commutator End
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28130-0J040 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90099-10183 |
— | ||
|
28140
|
28140
28140-02130
Holder Assy, Starter Brush
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28140-02130 |
— | ||
|
28142A
|
28142A
28142-02130
Brush, Starter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28142-02130 |
— | ||
| replacement | |||||
|
28142A
|
28142A
28142-70020 Brush, Starter[08.2006 -] 2SZFE,3SZFE..SCP4# |
28142-70020 |
from US $3.14 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28143-70020 |
— | ||
|
28150
|
28150
28150-0J040
Switch Assy, Magnet Starter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28150-0J040 |
— | ||
|
28160
|
28160
28160-0J040
Armature Assy, Starter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28160-0J040 |
— | ||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28163-70020 |
— | ||
|
28177
|
28177
28177-02130
Plate(For Starter Armature)
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28177-02130 |
— | ||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[08.2006 -] 2SZFE,3SZFE..SCP4# |
28199-46080 |
from US $2.97 |
||
|
28255
|
28255
28255-02130
Gear, Planet
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28255-02130 |
— | ||
|
28256
|
28256
28256-02130
Gear, Starter Internal
[08.2006 -] 2SZFE,3SZFE..SCP4# |
28256-02130 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
