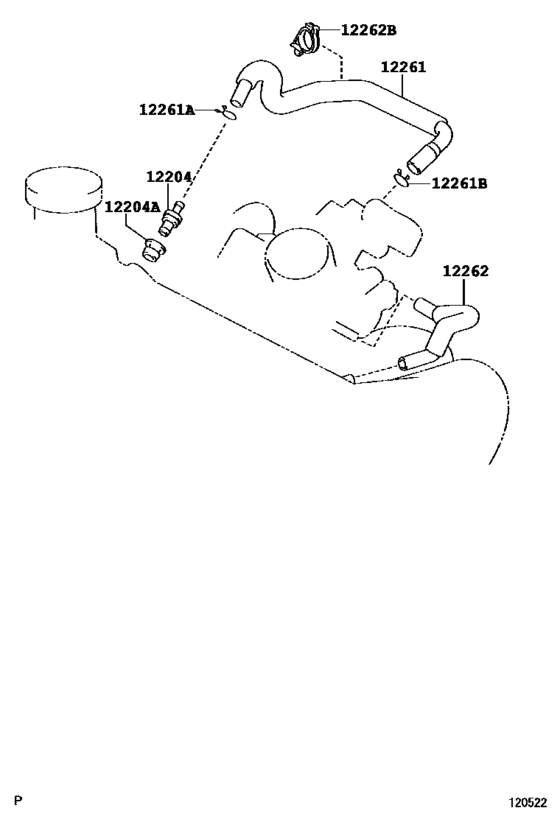

Ventilation Hose ([08.2006 - ] (0608- )2SZFE,3SZFE) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-97401 Valve Sub-Assy, Ventilation[08.2006 -] 2SZFE,3SZFE..SCP4# |
12204-97401 |
from US $8.54 |
||
|
12204A
|
12204A
90044-80655 Grommet(For Ventilation System)[08.2006 -] 2SZFE,3SZFE..SCP4# |
90044-80655 |
US $4.48 |
||
|
12261
|
12261
12261-23050 Hose, VentilationVENTILATION [08.2006 -] 2SZFE,3SZFE..SCP4# |
12261-23050 |
US $27.59 |
||
|
12261A
|
12261A
90467-14001 Clip Or Clamp(For Ventilation Hose)[08.2006 -] 2SZFE,3SZFE..SCP4# |
90467-14001 |
from US $0.72 |
||
| replacement | |||||
|
12261A
|
12261A
90466-T0026
Clip Or Clamp(For Ventilation Hose)
[08.2006 -] 2SZFE,3SZFE..SCP4# |
90466-T0026 |
— | ||
|
12261B
|
12261B
90467-18003 Clip Or Clamp(For Ventilation Hose)[08.2006 -] 2SZFE,3SZFE..SCP4# |
90467-18003 |
from US $2.15 |
||
|
12262
|
12262
12262-23030
Hose, Ventilation, No.2
[08.2006 -] 2SZFE,3SZFE..SCP4# |
12262-23030 |
— | ||
|
12262B
|
12262B
90044-64818 Clamp(For Ventilation Hose)[08.2006 -] 2SZFE,3SZFE..SCP4# |
90044-64818 |
US $3.06 |
||
