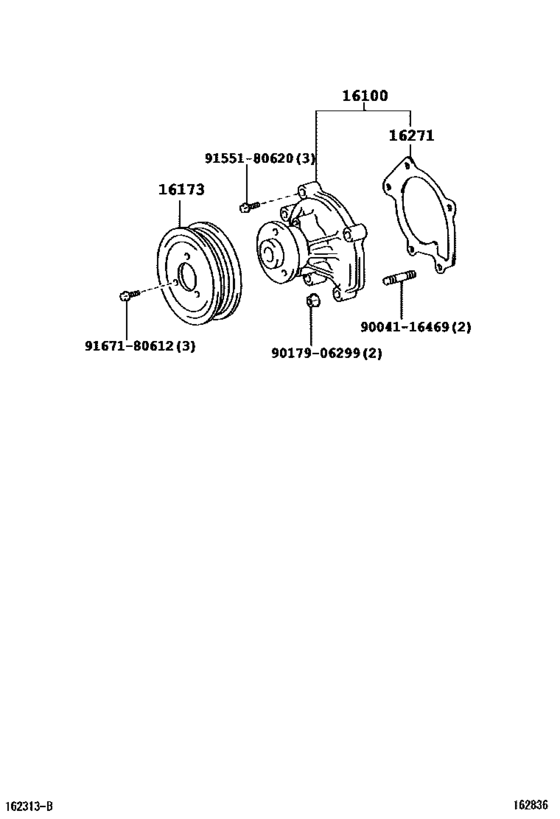

Water Pump ([08.2006 - ] (0608- )2SZFE,3SZFE) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09480
Pump Assy, Engine Water
[08.2006 - 07.2007] 2SZFE,3SZFE..SCP4# |
16100-09480 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-09482
Pump Assy, Engine Water
[08.2006 - 07.2007] 2SZFE,3SZFE..SCP4# |
16100-09482 |
— | ||
|
16100
|
16100
16100-09481
Pump Assy, Engine Water
[07.2007 -] 2SZFE,3SZFE..SCP4# |
16100-09481 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-09482
Pump Assy, Engine Water
[07.2007 -] 2SZFE,3SZFE..SCP4# |
16100-09482 |
— | ||
|
16173
|
16173
16173-23040 Pulley, Water Pump[08.2006 -] 2SZFE,3SZFE..SCP4# |
16173-23040 |
US $83.64 |
||
|
16271
|
16271
16271-BZ010
Gasket, Water Pump
[08.2006 -] 2SZFE,3SZFE..SCP4# |
16271-BZ010 |
— | ||
|
9004116469
|
9004116469
90041-16469 New Genuine Part |
90041-16469 |
US $2.34 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.64 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
