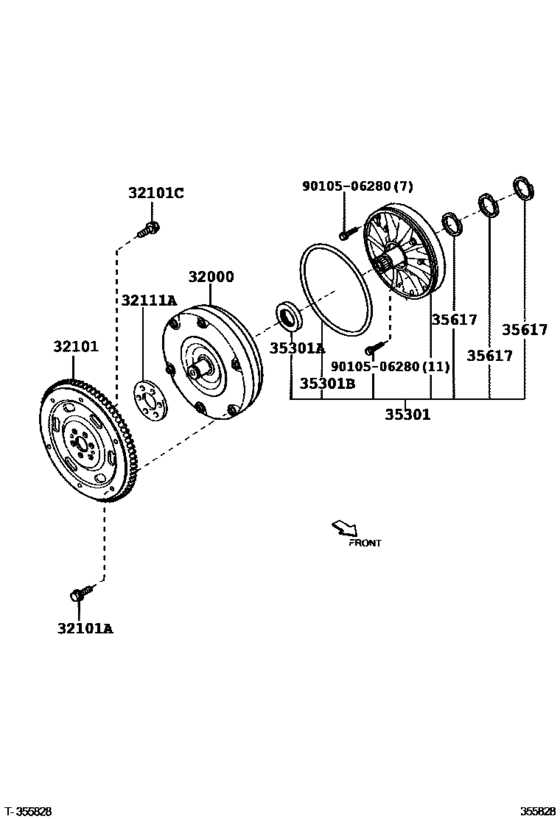

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2006 - ] (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP41
- grade
- GL
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-52130
Converter Assy, Torque
[08.2006 - 11.2007] SCP41..ATM |
32000-52130 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-52131
Converter Assy, Torque
[08.2006 - 11.2007] SCP41..ATM |
32000-52131 |
— | ||
|
32000
|
32000
32000-52131
Converter Assy, Torque
[11.2007 -] SCP41..ATM |
32000-52131 |
— | ||
|
32101
|
32101
32101-0D020
Gear Sub-Assy, Drive Plate & Ring
[08.2006 -] SCP4#..ATM |
32101-0D020 |
— | ||
|
32101A
|
32101A
90105-08411 Bolt(For Drive Plate & Torque Converter Setting)[08.2006 -] SCP4#..ATM *8-1.25PX9.5-2.7,YELLOW |
90105-08411 |
US $0.87 |
||
|
32101A
|
32101A
90109-08302 Bolt(For Drive Plate & Torque Converter Setting)[08.2006 -] SCP4#..ATM *8-1.25PX9.5-2.7,SILVER |
90109-08302 |
US $0.87 |
||
|
32101C
|
32101C
90105-10463 Bolt, Flywheel Setting[08.2006 -] SCP4#..ATM *10-1.25PX20-14 |
90105-10463 |
US $1.05 |
||
|
32111A
|
32111A
32113-0D010
Plate(For Pump Impeller Drive Plate)
[08.2006 -] SCP4#..ATM |
32113-0D010 |
— | ||
|
35301
|
35301
35310-52050 Body Sub-Assy, Front Oil PumpFRONT OIL PUMP [08.2006 -] SCP4#..ATM |
35310-52050 |
US $709.86 |
||
|
35301A
|
35301A
90311-32021
Seal, Oil (For Front Oil Pump)
[08.2006 -] SCP4#..ATM |
90311-32021 |
— | ||
|
35301B
|
35301B
90301-99135 Ring, O (For Front Oil Pump Body)O (FOR FRONT OIL PUMP BODY) [08.2006 -] SCP4#..ATM |
90301-99135 |
US $4.95 |
||
|
35617
|
35617
35653-52010 Ring, Clutch Drum Oil SealCLUTCH DRUM OIL SEAL [08.2006 -] SCP4#..ATM |
35653-52010 |
US $1.16 |
||
|
9010506280
|
9010506280
90105-06280 New Genuine Part |
90105-06280 |
US $1.16 |
||
