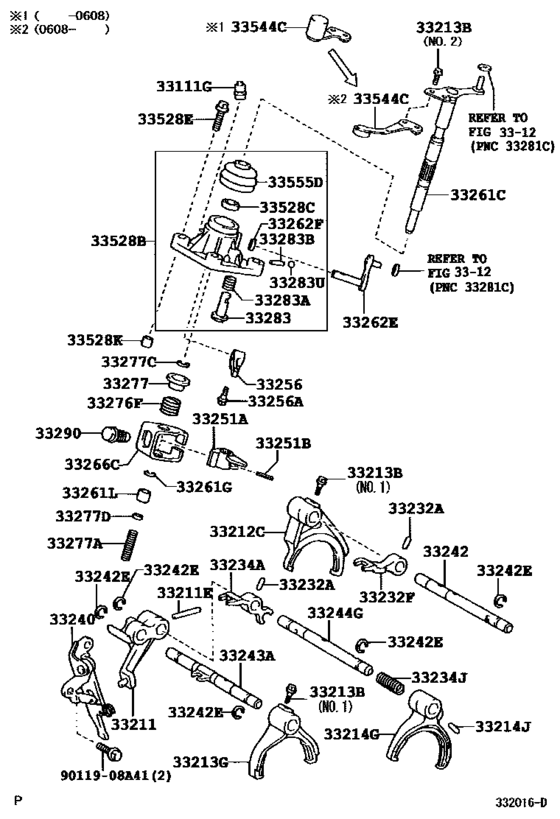

Gear Shift Fork & Lever Shaft (Mtm) ([10.2002 - ] C550 (0210- )AXP4#,SCP4#..MTM) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP42
- grade
- GLI
- ENGINE
- 3SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
90930-C3004
Plug, Breather(For Manual Transmission)
[08.2006 -] SCP4#..MTM |
90930-C3004 |
— | ||
|
33211
|
33211
33211-0D030
Fork, Reverse Shift
[08.2006 -] SCP4#..MTM |
33211-0D030 |
— | ||
|
33211E
|
33211E
90250-06032 Pin, Straight(For Reverse Shift Fork)[08.2006 - 12.2006] SCP4#..MTM |
90250-06032 |
from US $0.72 |
||
|
33211E
|
33211E
90250-C0001
Pin, Straight(For Reverse Shift Fork)
[12.2006 -] SCP4#..MTM |
90250-C0001 |
— | ||
|
33212C
|
33212C
33212-52010 Fork, Gear Shift, No.1[08.2006 -] SCP4#..MTM |
33212-52010 |
US $37.13 |
||
|
33213B
|
33213B
90105-06115 Bolt(For Shift Fork Set)[08.2006 -] SCP4#..MTM NO.1 |
90105-06115 |
US $1.61 |
||
|
33213B
|
33213B
90105-C0103
Bolt(For Shift Fork Set)
[08.2006 -] SCP4#..MTM NO.2 |
90105-C0103 |
— | ||
|
33213G
|
33213G
33213-52010
Fork, Gear Shift, No.2
[08.2006 -] SCP4#..MTM |
33213-52010 |
— | ||
| replacement | |||||
|
33213G
|
33213G
33213-52011 Fork, Gear Shift, No.2GEAR SHIFT, NO.2 [08.2006 -] SCP4#..MTM |
33213-52011 |
US $31.62 |
||
|
33214G
|
33214G
33214-52010
Fork, Gear Shift, No.3
[08.2006 -] SCP4#..MTM |
33214-52010 |
— | ||
| replacement | |||||
|
33214G
|
33214G
33214-52011 Fork, Gear Shift, No.3GEAR SHIFT, NO.3 [08.2006 -] SCP4#..MTM |
33214-52011 |
from US $30.93 |
||
|
33214J
|
33214J
90250-06031 Pin, Straight(For 5Th Shift Fork)[08.2006 - 12.2006] SCP4#..MTM |
90250-06031 |
US $0.87 |
||
|
33214J
|
33214J
90250-C0002
Pin, Straight(For 5Th Shift Fork)
[12.2006 -] SCP4#..MTM |
90250-C0002 |
— | ||
|
33232A
|
33232A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.2006 -] SCP4#..MTM |
90254-05001 |
from US $0.98 |
||
|
33232F
|
33232F
33232-0D010
Head, Gear Shift, No.1
[08.2006 -] SCP4#..MTM |
33232-0D010 |
— | ||
|
33234A
|
33234A
33234-0D010
Head, Gear Shift, No.3
[08.2006 -] SCP4#..MTM |
33234-0D010 |
— | ||
|
33234J
|
33234J
90501-14161 Spring, Compression (For Shift Return)[08.2006 -] SCP4#..MTM |
90501-14161 |
US $1.89 |
||
|
33240
|
33240
33240-0D010
Bracket Assy, Reverse Shift Arm
[08.2006 -] SCP4#..MTM |
33240-0D010 |
— | ||
|
33242
|
33242
33242-0D010
Shaft, Gear Shift Fork, No.1
[08.2006 -] SCP4#..MTM |
33242-0D010 |
— | ||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[08.2006 -] SCP4#..MTM |
90520-12003 |
from US $0.92 |
||
|
33243A
|
33243A
33243-0D030
Shaft, Gear Shift Fork, No.2
[08.2006 -] SCP4#..MTM |
33243-0D030 |
— | ||
| replacement | |||||
|
33243A
|
33243A
33243-0D050
Shaft, Gear Shift Fork, No.2
[08.2006 -] SCP4#..MTM |
33243-0D050 |
— | ||
|
33244G
|
33244G
33244-0D010
Shaft, Gear Shift Fork, No.3
[08.2006 -] SCP4#..MTM |
33244-0D010 |
— | ||
|
33251A
|
33251A
33251-52010 Lever, Shift, Inner No.1[08.2006 -] SCP4#..MTM |
33251-52010 |
US $50.96 |
||
| replacement | |||||
|
33251A
|
33251A
33251-52070 Lever, Shift, Inner No.1[08.2006 -] SCP4#..MTM |
33251-52070 |
US $55.04 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.2006 -] SCP4#..MTM L=25.5 |
90254-05016 |
from US $1.95 |
||
|
33256
|
33256
33256-0D010
Lever, Select Inner
[08.2006 -] SCP4#..MTM |
33256-0D010 |
— | ||
|
33256A
|
33256A
90109-C0008
Bolt, Set (For Select Inner Lever)
[08.2006 -] SCP4#..MTM |
90109-C0008 |
— | ||
|
33261C
|
33261C
33261-0D020
Shaft, Shift & Select Lever
[08.2006 -] SCP4#..MTM |
33261-0D020 |
— | ||
|
33261G
|
33261G
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[08.2006 -] SCP4#..MTM |
90520-13002 |
from US $1.43 |
||
|
33261L
|
33261L
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[08.2006 -] SCP4#..MTM |
90384-15002 |
US $1.97 |
||
|
33262E
|
33262E
33262-0D010
Shaft, Select Lever
[08.2006 -] SCP4#..MTM |
33262-0D010 |
— | ||
|
33262F
|
33262F
90311-16006 Seal, Oil (For Select Lever Shaft)[08.2006 -] SCP4#..MTM |
90311-16006 |
US $2.62 |
||
|
33266C
|
33266C
33266-0D010
Plate, Shift Inter Lock
[08.2006 -] SCP4#..MTM |
33266-0D010 |
— | ||
|
33276F
|
33276F
90501-12195 Spring, Compression, No.1 (For Select Return)[08.2006 -] SCP4#..MTM |
90501-12195 |
US $1.75 |
||
|
33277
|
33277
33277-0D010
Seat, Select Spring, No.2
[08.2006 -] SCP4#..MTM |
33277-0D010 |
— | ||
|
33277A
|
33277A
90501-C0006 Spring, Compression, No.2 (For Select Return)COMPRESSION, NO.2 (FOR SELECT RETURN) [08.2006 -] SCP4#..MTM |
90501-C0006 |
US $2.18 |
||
|
33277C
|
33277C
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[08.2006 -] SCP4#..MTM |
90520-15003 |
US $0.79 |
||
|
33277D
|
33277D
90560-C0001
Spacer (For Select Return Spring)
[08.2006 -] SCP4#..MTM |
90560-C0001 |
— | ||
|
33283
|
33283
33283-0D010
Pin, Reverse Restrict, No.1
[08.2006 -] SCP4#..MTM |
33283-0D010 |
— | ||
|
33283A
|
33283A
90508-C0001
Spring, Compression (For Reverse Restrict Pin)
[08.2006 -] SCP4#..MTM |
90508-C0001 |
— | ||
|
33283B
|
33283B
90250-C0004
Pin, Straight (For Reverse Restrict Pin)
[08.2006 -] SCP4#..MTM |
90250-C0004 |
— | ||
|
33283U
|
33283U
90360-C0003
Ball, Reverse Restrict Pin
[08.2006 -] SCP4#..MTM |
90360-C0003 |
— | ||
|
33290
|
33290
33290-0H020 Ball Assy, Lock, No.1[08.2006 -] SCP4#..MTM |
33290-0H020 |
US $18.35 |
||
|
33528B
|
33528B
33506-0D010 Cover, Control Shaft[08.2006 -] SCP4#..MTM |
33506-0D010 |
US $66.68 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[08.2006 -] SCP4#..MTM |
90311-18013 |
from US $2.32 |
||
|
33528E
|
33528E
90119-C0141
Bolt (For Control Shaft Cover)
[08.2006 -] SCP4#..MTM *8-1.25X35-30 |
90119-C0141 |
— | ||
|
33528K
|
33528K
90253-C0001
Pin, Ring (For Control Shaft Cover Set Bolt)
[08.2006 -] SCP4#..MTM |
90253-C0001 |
— | ||
|
33544C
|
33544C
33544-0D020
Damper, Shift Lever
[08.2006 -] SCP4#..MTM |
33544-0D020 |
— | ||
|
33555D
|
33555D
33555-0D010
Boot, Shift Lever
[08.2006 -] SCP4#..MTM |
33555-0D010 |
— | ||
|
9011908A41
|
9011908A41
90119-08A41 New Genuine Part |
90119-08A41 |
US $1.02 |
||
